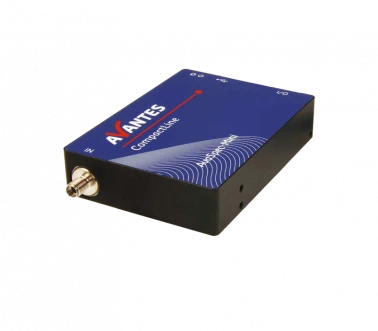

AvaSpec-ULS2048CL-EVO NIR 1200 Spectrometer

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 75 mm
Diffraction Grating: 1200 lines/mm
Grating Blaze Wavelength: 250 nm
Spectral Range: 200 – 450 nm
Spectral Resolution (Avg): 0.12 nm
Document icon Download Data Sheet Download icon

Features


  • Compact Design: The AvaSpec-Mini2048CL is the size of a deck of cards, weighing only 175 grams, making it easy to transport and integrate into various systems.

  • High Resolution: Achieves a resolution of up to 0.1 nm, ideal for precise spectral analysis.

  • Dynamic Range: Offers a dynamic range better than 3000:1, ensuring high-quality data capture.

  • Low Stray Light: Stray-light levels are lower than 0.2%, enhancing measurement accuracy.

  • Advanced Detector: Equipped with a HAM S11639 CMOS linear array detector, featuring 2048 pixels for detailed spectral data.

  • Wide Wavelength Range: Covers a wavelength range of 200 - 1100 nm, suitable for various research applications including light analysis, chemical research, and Raman spectroscopy.

  • Temperature Stability: Excellent temperature stability and unit-to-unit reproducibility, crucial for OEM integrations.

  • Fast Data Transfer: Offers a data transfer speed of 4.6 ms/scan and sample speed with on-board averaging of 3.0 ms/scan.

  • Versatile Interface: Features a USB 2.0 interface with a pigtailed USB-A connection for easy integration.

  • Flexible Power Supply: Powered via USB with a default power supply of 500 mA.

  • Seamless Software Integration: Fully compatible with Avantes spectroscopy software and supports both Windows and Linux libraries.

  • Customizable Options: Includes various slit sizes and order sorting coatings to suit specific application needs.

Applications


  • Light Analysis: Ideal for analyzing various light sources and their properties.

  • Chemical Research: Perfect for identifying chemical compositions and reactions.

  • Raman Spectroscopy: Suitable for studying vibrational, rotational, and other low-frequency modes in a system.

  • OEM Integration: Designed for easy integration into other products, offering excellent reproducibility and temperature stability.

  • Portable Measurements: Compact and lightweight, making it easy to carry for on-site measurements.

  • Educational Purposes: Useful for teaching and demonstrations in academic settings.

  • Quality Control: Effective for ensuring product quality in manufacturing processes.

  • Environmental Monitoring: Can be used to analyze environmental samples for research and compliance.
