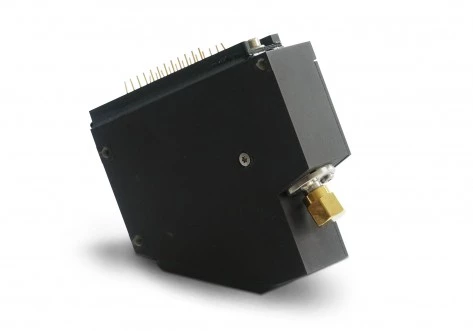

FREEDOM HR-VIS 360 – 830 nm OEM Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Denmark
-
Sold by:
-
On FindLight:
since 2018
Description
The FREEDOM HR-VIS spectrometers by Ibsen Photonics are designed to offer a blend of compactness and cost efficiency without compromising on performance. These spectrometers are an ideal choice for OEMs seeking high-resolution portable solutions. Whether you are developing handheld devices or portable systems, the FREEDOM HR-VIS spectrometers provide the performance needed for demanding applications.
The FREEDOM HR-VIS series includes three models tailored to different requirements: the FHV-101 for budget-conscious projects, the FHV-315 for applications where low noise is critical, and the FHU-380 for scenarios demanding fast integration times. Ibsen Photonics also offers customization options, allowing you to tailor an OEM spectrometer to your specific needs if the standard specifications do not align with your project requirements.
These spectrometers are built on a modular design, offering flexibility in how they can be integrated into your systems. Whether you choose a complete spectrometer, a spectrograph, or just a spectrometer grating, the FREEDOM HR-VIS series can be adapted to fit almost any detector and electronics setup. This flexibility ensures that you can achieve the optimal configuration for your application, without being constrained by standard specifications.
FREEDOM HR-VIS 360 – 830 nm OEM Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Not Specified |
| Spectral Range: | 360 – 830 nm |
| Spectral Resolution (Avg): | 0.5 nm |
Features
- Wide Wavelength Range: Covers a spectrum from 360 to 830 nm, making it versatile for various applications.
- Compact and Cost-Efficient: Ideal for high-resolution portable solutions without compromising on performance.
- High Resolution: Offers a typical resolution of 0.4 nm/FWHM for the FHV-101 and 0.5 nm/FWHM for the FHV-315 and FHV-380 models.
- Low Stray Light: Maintains high accuracy with stray light levels of less than 0.03%.
- Robust and Athermal Design: Ensures stable performance across different environments.
- Flexible Integration: Compatible with various detectors and electronics, including Hamamatsu CMOS and BT-CCD options.
- Direct Interface: Offers direct interface to detector pins, with optional electronics available for enhanced flexibility.
- Temperature Stability: Features a low temperature drift of <0.02 nm/Degree C, suitable for varying operating conditions.
- Wide Operating Temperature Range: Functions effectively from -10 to +45 degrees Celsius in non-condensing environments.
- Customizable Solutions: Ibsen can tailor OEM spectrometers to meet specific requirements beyond standard specifications.
- Compact Dimensions: Measures just 61 mm x 65 mm x 19 mm, making it easy to integrate into portable systems.
Applications
- Portable and Handheld Spectroscopy: Ideal for mobile and field-based spectroscopic analysis
- Environmental Sensing: Compact solutions for air and water quality monitoring
- Industrial Quality Control: Precise spectral measurements for manufacturing and process control
- Biomedical Diagnostics: Integration in handheld diagnostic and analytical devices
- OEM Instrument Integration: Flexible modules for system integrators developing high-resolution spectrometers
Frequently Asked Questions
It is a high-performance, compact, and cost-efficient spectrometer that is ideal for handheld and portable system applications where performance cannot be sacrificed.
The features of the spectrometer include high resolution, compact size, flexible detector and electronics, and a robust and athermal design.
The spectrometer can be used in a variety of applications such as biomedical/medical, defense, environmental monitoring, light characterization, materials identification, scientific research, semiconductor, and others.
Yes, Ibsen can customize an OEM spectrometer to meet your exact needs if the specifications do not match your requirements.
The specifications include a wavelength range of 360 - 830 nm, numerical aperture of 0.11, typical resolution of 0.4-0.5 nm/FWHM, stray light of <0.03%, and operating temperature range of -10 to +45 Degree C, among others.
