Description

The YSM-8105 and YSM-8106 series NIR spectrometers are designed for precision optical analysis across research, industrial, and life science applications. These compact, modular systems feature advanced Hamamatsu InGaAs detectors (128/256/512 pixels) and TE-cooled variants for low noise, high sensitivity, and millisecond data acquisition. With wavelength ranges from 900 nm to 2500 nm, these spectrometers cover a broad portion of the near-infrared spectrum, making them ideal for applications requiring accurate composition analysis, optical quality testing, and material characterization.

The replaceable slit design allows users to tailor resolution and sensitivity to specific needs, while integrated software provides automatic peak wavelength, bandwidth calculations, and data monitoring. The systems support SMA905 fiber connectors, USB/RS232 communication, and external triggering, facilitating seamless integration into custom setups. Compact dimensions, low power consumption, and robust thermal management make them suitable for laboratory, field, or industrial deployment.

Applications include evaluating fruits and vegetables for freshness and sugar content, determining protein and fat in meat, assessing grains and seeds, analyzing oil plant composition, pharmaceutical process monitoring, drug composition analysis, and plastics quality control. Standard xenon, tungsten, and mercury lamp comparisons ensure accurate calibration and reliable spectral data. The YSM series offers a powerful combination of portability, high performance, and flexibility for modern NIR spectroscopy needs.

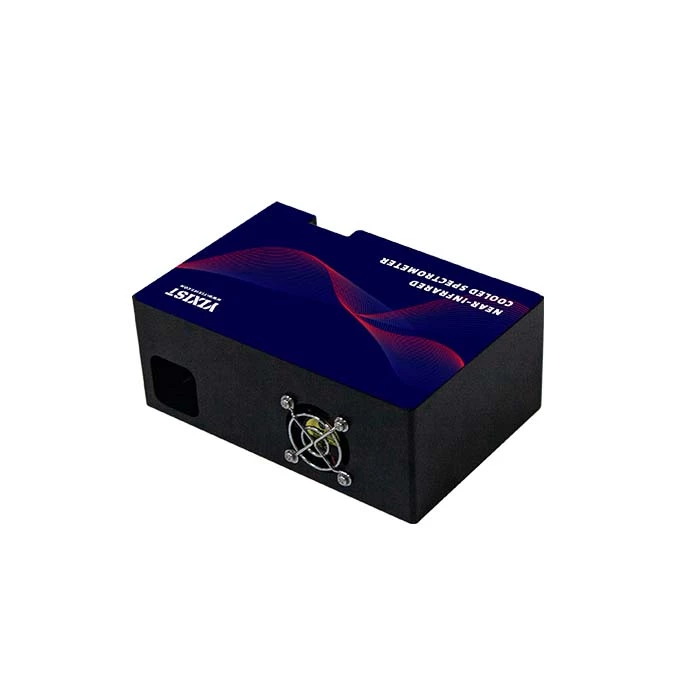

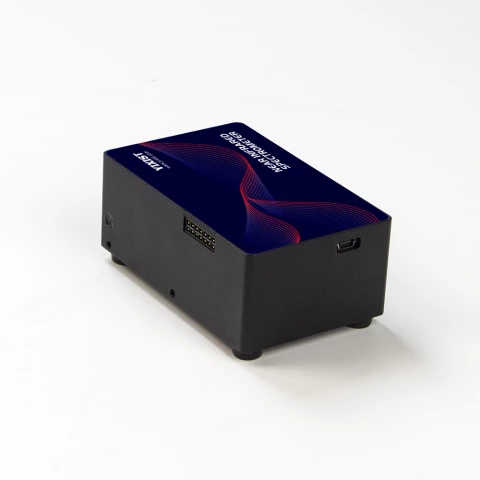

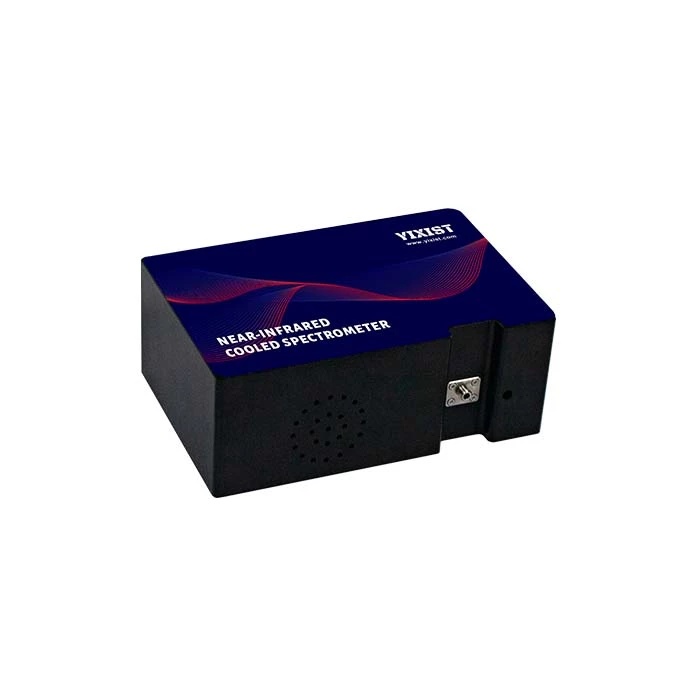

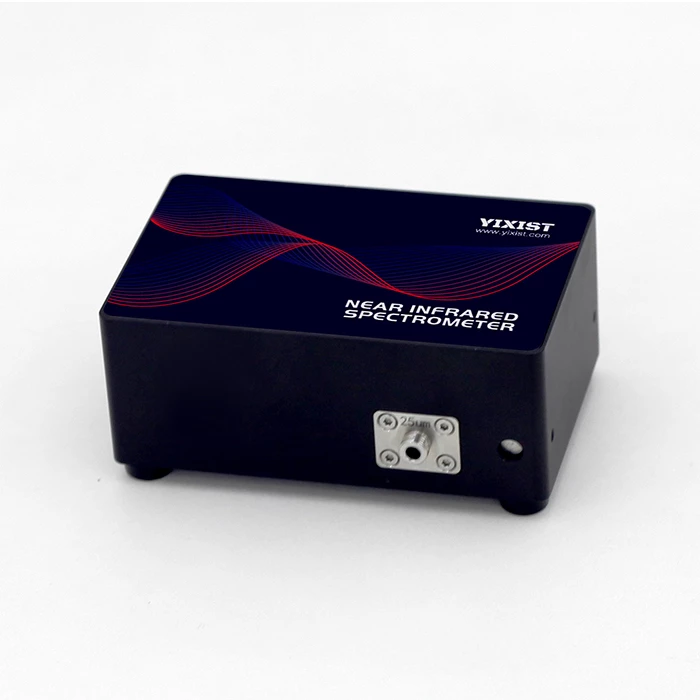

NIR Spectrometer and NIR TE-Cooling Spectrometer

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 80 mm
Diffraction Grating: 150 lines/mm
Grating Blaze Wavelength: 1200 nm
Spectral Range: 900 – 2500 nm
Linear Dispersion (Avg): 9 nm/mm
Spectral Resolution (Avg): 10 nm
Models: YSM-8105-05/09/10, YSM-8106-12/19
Detector: InGaAs 128/256/512 pixel, InGaAs 512 pixels TE-cooling detector
Pixel Size(µm): 25/50x250/500
Size(mm): 94x60x36.5, 190x120x66
Wavelength Range(nm): 900-2500
Optical Resolution: Optimal ~1/1.5/5nm
Slit: Replaceable
A/D: 16bit
S/N Ratio: 16666/10000/2500/1200: 1
Dynamic Range: 16666/14667/14000/12700:1
Integration Time: 0.1/1ms-65s
Trigger Mode: Software, hardware, synchronous
Power Consumption: 5/12VDC, 250/4000mA
Fiber Connector: SMA905
Operating Temperature: 5°C-35°C (25°C recommended)
Communication: USB2.0/USB2.0(Mini), RS232
Operating System: Win XP, 7, 8, 10, 11

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact Optical Design: Facilitates easy integration into custom systems.
  • Hamamatsu InGaAs Detectors: Available in 128, 256, or 512 pixels for high sensitivity.
  • TE-Cooled Option: Reduces thermal noise for improved S/N ratio.
  • Replaceable Slit Design: Customizable resolution for different applications.
  • Broad Wavelength Range: 900–1700 nm (YSM-8105) and 900–2500 nm (YSM-8106).
  • High Dynamic Range: Provides precise intensity measurements with minimal distortion.
  • Fast Data Acquisition: Millisecond integration times for real-time analysis.
  • Software Integration: Automatic peak wavelength, bandwidth calculation, and data logging.

Applications

  • Food Quality Analysis: Sugar content, freshness, fat, and protein determination.
  • Pharmaceuticals & Life Sciences: Drug composition analysis, process monitoring.
  • Materials & Plastics Industry: Composition analysis, material screening, quality control.
  • Optical Light Source Testing: Wavelength stability, intensity, and FWHM measurements.
  • Research & Laboratory Applications: Fluorescence, NIR absorption, and spectral studies.

Frequently Asked Questions

What is the difference between the YSM-8105 and YSM-8106 series NIR spectrometers?
The YSM-8105 series uses Hamamatsu InGaAs detectors, while the YSM-8106 series uses Hamamatsu TE-cooling InGaAs detectors. The YSM-8106 series also has a broader wavelength range compared to the YSM-8105 series.
What are the applications of the YSM-8105 series NIR spectrometers?
The YSM-8105 series is ideal for food, biopharmaceutical, and life science applications. It can be used for fruits and vegetables freshness and sugar testing, meat fat and protein content determination, grains and seeds quality assessment, and oil plants composition analysis.
What are the features of the YSM-8105 series NIR spectrometers?
The YSM-8105 series features Hamamatsu InGaAs detectors, compact optical design for easy system integration, replaceable slit design for different applications, and customizable wavelength ranges and resolutions. It also has powerful software with automatic peak wavelength and bandwidth calculation functions.
What are the specifications of the YSM-8105 series NIR spectrometers?
The YSM-8105 series has a wavelength range of 900nm-1700nm, a resolution of approximately 5nm, and a signal-to-noise ratio of 10000:1. It has a data transmission speed of 0.1ms-65s and is powered by 5VDC, 250mA.
What are the applications of the YSM-8106 series NIR spectrometers?
The YSM-8106 series is ideal for research, as well as food, biopharmaceutical, and life science applications. It can be used for drug composition analysis, process monitoring, composition analysis, material screening, and quality control for the plastics industry.
