Description
The high-end spectrometers of the SW series cover the NIR range from 900 – 2500 nm. Their wide span of applications in industry and science range e.g. from chemical analysis, biophotonics to Raman spectroscopy. An internal ring buffer allows synchronous measurement and readout in continuous 24/7 operation. The robust opto-mechanical design enables the use in portable applications and under harsh environmental conditions.

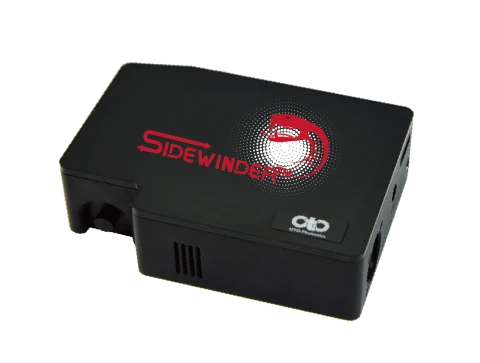

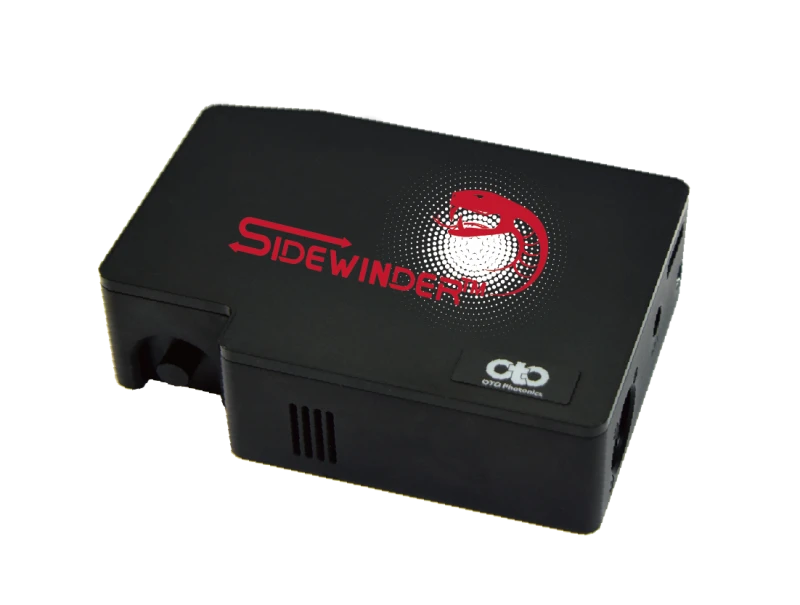

EQ Photonics GmbH - IR Spectrometer - SW-Series
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | Not Specified |
| Diffraction Grating: | Not Specified |
| Grating Blaze Wavelength: | Not Specified |
| Spectral Range: | 900 – 2500 nm |
| Linear Dispersion (Avg): | Not Specified |
| Spectral Resolution (Avg): | 2.5 nm |
Features
- Good shock and vibration resistance
- TEC controlled temperature stability
- NIR InGaAs sensor
- Easy connected via SMA fiber
- Continuous trigger function
- Z5 CPU integrated
- SpectraSmart readout and evaluation software
- SDK and libraries
- Large on-board buffer
- Memory for up to 4000 spectra
- USB and UART interface
- Stray light calibration – optional
- Intensity calibration – optional
- Linearity calibration
- No moving parts
Applications
- Optical characterization of light sources
- Laser characterization
- LED testing
- Filter characterization
- Display testing
- Colorimetry
- Fluorescence spectroscopy
- Water analysis
- Gas analysis
- Differential optical absorption spectroscopy (DOAS)
- Continuous Emission Monitoring Systems (CEMS)
- Ellipsometry
- Blood analysis
- OCT
- Colour analysis
- Thin-film measurement
- Raman spectroscopy
- Reflection spectroscopy
- Absorption spectroscopy
- Emission spectroscopy
- Concentration
- Material identification
- LIBS
