High-Resolution Optical Spectrometer
Description

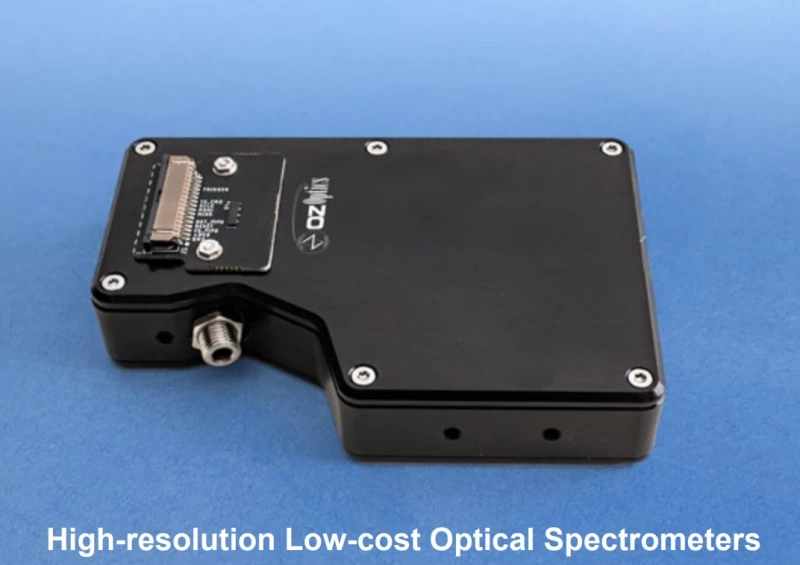

he High-Resolution Optical Spectrometer by OZ Optics is a cost-effective and high-end spectrometer designed for various applications. It features a wide spectral range, exceptional sensitivity, high signal-to-noise ratio (SNR), and excellent spectral resolution. The spectrometer is compact, rugged, and can be integrated into existing systems or used as a standalone unit with a built-in touchscreen.
It offers flexible operating options and can be remotely controlled via a USB port using an intuitive graphical user interface (GUI). Customized optical inputs, including fiber focusers or collimators, and wave division multiplexors, enable both fiber delivery applications and free-space scanning.
High-Resolution Optical Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Not Specified |
| Effective Focal Length: | -- mm |
| Diffraction Grating: | 1250 lines/mm |
| Grating Blaze Wavelength: | -- nm |
| Spectral Range: | 190-850nm |
| Linear Dispersion (Avg): | -- nm/mm |
| Spectral Resolution (Avg): | -- nm |
| Power Consumption: | 3.3 V 60 mA |
| Trigger Modes: | Internal or external source, single, multiple accumulate, multiple average |
| Inputs/Outputs: | SPI with 2 chip selects, accumulator reset, device reset, and external trigger |
| Electrical Connector: | 16 pin 1 mm pitch FFC |
| Weight: | 145 g |
| Dimensions: | 90 x 60 x 18.8 mm |
| Operating Temperature Range [2] (Non-condensing): | 10-45 °C |
| Stray Light: | < 1 % |
| Enhanced Sensitivity Lens: | D-Lens on CCD |
| Numerical Aperture: | 0.25 |
| Entrance Slit: | 20 µm |
| Pixels: | 3648 |
| Detector (CCD): | Toshiba TCD1304DG |
| Signal To Noise Ratio: | > 300:1 |
| Input Fiber Connector [1]: | SMA-905 |
| Dark Noise: | < 25 counts at 4 milliseconds exposure |
| Integration Time: | 4 milliseconds to 10 seconds |
| Optical Resolution: | 1 nm FWHM |
Features
- Handheld and rugged design
- Wide spectral range with high spectral resolution
- Transmission grating provides exceptional signal throughput and high SNR
- Built-in filter to suppress grating second-order noise
- Low cost with flexible operating options
Applications
- Full spectrum analysis
- Quality control for the food industry
- Chemical identification
- Recent applications ranging from smart farming to pharmaceutical tests
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The key features of the High-Resolution Optical Spectrometer include a wide spectral range, exceptional sensitivity, high signal-to-noise ratio (SNR), and excellent spectral resolution. It also has a compact and rugged design, a built-in touchscreen, and flexible operating options.
Yes, the High-Resolution Optical Spectrometer can be integrated into existing systems. It is designed to be easily integrated and can also be used as a standalone unit.
The High-Resolution Optical Spectrometer can be remotely controlled via a USB port using an intuitive graphical user interface (GUI). This allows for easy control and operation of the spectrometer.
The High-Resolution Optical Spectrometer is suitable for a wide range of applications. It can be used for full spectrum analysis, quality control in the food industry, chemical identification, and various other applications ranging from smart farming to pharmaceutical tests.
The specifications of the High-Resolution Optical Spectrometer include a wavelength range of 190 nm to 850 nm, an optical resolution of 1 nm FWHM, and an integration time of 4 milliseconds to 10 seconds. It also has a low dark noise, high signal-to-noise ratio, and various other technical specifications.
