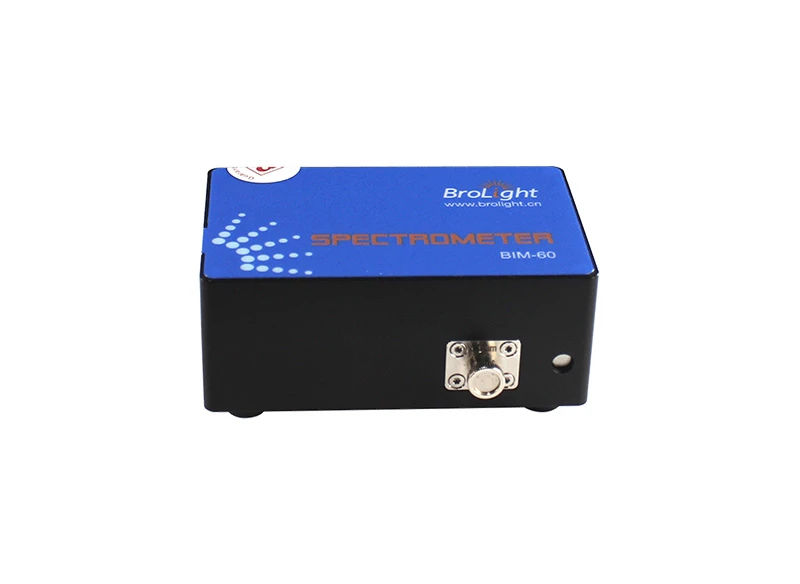

Brolight UV-VIS Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Hangzhou Brolight Technology -
On FindLight:
since 2025
Description
BIM-60 series spectrometer adopts miniature optical machine platform. It is compact and portable. The resolution is up to 0.35nm-1nm.
BIM-6002A series spectrometer has a great upgrade in circuit. The dynamic range is enhanced to 10000:1 and the minimum integration time is reduced to 0.5ms. Meanwhile the signal noise ratio is improved to 600:1. All improvements are more suitable for week signal spectrum measurement. The RS232 interface is supported, and enhances anti-jamming performance, which is more beneficial for industrial customers.
Brolight UV-VIS Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Spectral Range: | 315 – 1100 nm |
| Spectral Resolution (Avg): | 0.35 nm |
| Wavelength Range: | 315nm-1100nm optional |
| Resolution: | Optimal~0.35nm |
| Fiber Connector: | SMA905 |
| Detector: | TCD1304, 3648 liner CCD |
| Pixel: | 3648 pixel, each pixel 8μm×200μm |
| Signal To Noise Ratio: | 300:1 |
| A/D Resolution: | 16 bit |
| Integrating Time: | 4ms-10s |
| Dynamic Range: | 300:1 |
| Power Consumption: | 250mA, 5VDC |
| Operating Temperature: | 5℃-35℃ (25℃ recommended) |
| Communication Interface: | USB2.0 (12Mbps), RS232 (115200bps) |
| Operating System: | WinXP, Win7, Win8, Win10 |
| Mounting Holes: | 4×M3 Threaded Holes at bottom, 24×M3 at side |
| Power Supply: | USB |
| Dimension: | 94mm×60mm×34.5mm |
| Weight: | 0.3Kg |
Features
- Handy and compact, size is as small as a name card
- Crossed Czerny-Turner optical design
- Interference filter to eliminate the secondary diffraction spectrum
- Standard SMA905 fiber connector
- Wavelength range and optical resolutions are selectable
Applications
- Emission & Absorption Spectrum Measurement
- Transmittance & Absorbance Testing
- LED Characterization and Analysis
- Solar Energy Spectrum Testing
- Fluorescence Detection
- Color Measurement
- Laser Spectrum Analysis Systems
Frequently Asked Questions
The spectrometer is compact, with dimensions of 94mm x 60mm x 34.5mm, making it as small as a business card.
The wavelength range is selectable, with options from 315nm to 1100nm depending on the model.
The spectrometer achieves a high resolution of up to 0.35nm.
The spectrometer supports USB 2.0 and RS232 communication interfaces.
It is suitable for emission and absorption spectrum measurement, transmittance and absorbance testing, LED characterization, solar energy spectrum testing, fluorescence detection, color measurement, and laser spectrum analysis systems.
The spectrometer consumes 250mA at 5VDC.
The standard package includes the spectrometer, a USB cable, a calibration report (software, manual), and a suitcase.
