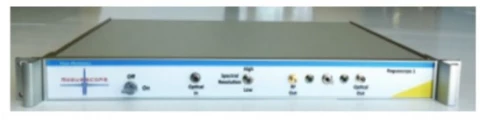

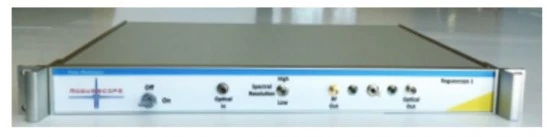

Roguescope Real-Time High-Speed Optical Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The Single-Shot Millions Frame-Rate Optical Spectrometer, known as the Roguescope, is a groundbreaking tool in the world of optical measurement. This spectrometer is capable of capturing data at an extraordinary rate of over 100 million frames per second. This unprecedented speed is achieved through the innovative Time-Stretch Dispersive Fourier Transform technology, making the Roguescope at least a thousand times faster than any other spectrometer available on the market today. Its real-time single-shot capability allows for the precise capture of large datasets, unveiling intricate optical dynamics and rare events with remarkable accuracy.
Manufactured under a HKQAA ISO 9001 certified quality management system, the Roguescope ensures high standards of quality and reliability. This certification applies specifically to the production site in Hong Kong, highlighting the meticulous attention to quality control. Amonics, a renowned distribution partner of Time Photonics, plays a crucial role in bringing this advanced technology to the Asia region, ensuring that users have access to the most cutting-edge optical measurement tools available.
In addition to its superior hardware capabilities, the Roguescope is equipped with advanced analytics software designed to enhance its functionality. This software enables real-time capturing and analysis of large datasets, and is compatible with major operating systems such as Mac OS and Windows. It offers a range of features including multi-device interface capability, USB compatibility, and multi-window analytics, along with customizable skins and color settings. These features make the Roguescope not only a powerful tool for capturing optical phenomena but also a user-friendly and versatile instrument for researchers and scientists.
Roguescope Real-Time High-Speed Optical Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Not Specified |
| Spectral Range: | 650 – 1000 nm |
| Spectral Resolution (Avg): | 0.01 nm |
Features
- Real-time Single-shot at Extremely High Measurement Rate: Capture data at over 100 million frames per second, making it one of the fastest spectrometers available.
- Wide Spectral Bandwidth: Covers a broad range from 200nm to 650nm, suitable for diverse applications.
- High Spectral Resolution: Achieve resolutions greater than 10pm for precise measurements.
- High Sensitivity: Detects signals with sub-milliwatt sensitivity, ideal for low-light conditions.
- Fiber-based Design: Rugged and suitable for field use, ensuring durability and reliability in various environments.
- Advanced Software: Includes analytics software compatible with Mac OS and Windows, featuring multi-device interface, USB compatibility, and extensive analytics and reporting functions.
- ISO 9001 Certified Manufacturing: Produced under a certified quality management system, ensuring high standards and reliability.
Applications
- Laser Transients Analysis: Captures non-repetitive laser mode locking and Q-switching events.
- Rare Event Detection: Identifies uncommon optical phenomena in real-time measurements.
- Fast Stochastic Process Measurements: Enables investigation of high-speed random optical behaviours.
- Non-Gaussian Statistics Capture: Provides insights into complex spectral distributions.
- Modulation Instability Studies: Supports research into nonlinear modulation phenomena.
- High Throughput Spectroscopy: Facilitates rapid spectral acquisition for advanced spectroscopy.
- Nonlinear Optical Transients: Monitors transient events in nonlinear optical systems.
Frequently Asked Questions
The frame rate of the Amonics Roguescope Spectrometer is up to 100 million frames per second.
The spectral bandwidth of the Roguescope is 200nm – 650nm.
The sensitivity of the Roguescope is sub-mW.
Yes, the Roguescope comes with analytics software to enable real-time capturing of large datasets and perform signal analysis.
The manufacturing site for the Roguescope is certified under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
