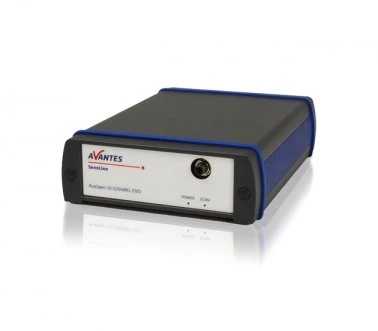

AvaSpec-ULS2048CL-EVO UV 2400 Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
**AvaSpec-ULS2048XL-EVO Spectrometer Overview** Introducing the **AvaSpec-ULS2048XL-EVO**, a cutting-edge spectrometer that merges outstanding quantum efficiency with high-speed performance. This advanced spectrometer is designed to deliver exceptional sensitivity in both the UV and NIR spectral ranges, making it a versatile tool for a variety of scientific and industrial applications. Unlike typical back-thinned CCD spectrometers, which often feature two-dimensional arrays, the AvaSpec-ULS2048XL-EVO is equipped with large monolithic pixels measuring 14x500 microns. This unique design significantly enhances efficiency in the UV range from 200-400 nm and the NIR range from 950-1160 nm.
One of the standout features of the AvaSpec-ULS2048XL-EVO is its electronic shutter, which supports integration times as brief as 2 microseconds. This capability is further augmented by an optional detector collection lens, boosting sensitivity by up to 60% when used with larger core fibers. Additionally, the spectrometer offers customizable options such as an order-sorting filter to minimize second-order effects and purge ports for deep-UV measurements. The device can be configured with a variety of slit sizes and gratings, and it supports both SMA and FC/PC fiber-optic entrance connectors.
The AvaSpec-ULS2048XL-EVO is powered by the AS7010 electronics board, providing USB3 connectivity that is ten times faster than USB2, along with Gigabit Ethernet for enhanced signal processing. This ensures rapid data transfer, with scans completed in just 2 milliseconds. The spectrometer comes with AvaSoft-basic software, a USB cable, and a comprehensive manual, making it ready for immediate use. Compact and robust, the AvaSpec-ULS2048XL-EVO is an ideal choice for professionals seeking high-performance spectrometry solutions.
AvaSpec-ULS2048CL-EVO UV 2400 Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 75 mm |
| Diffraction Grating: | 600 lines/mm |
| Grating Blaze Wavelength: | 750 nm |
| Spectral Range: | 600 – 1160 nm |
| Spectral Resolution (Avg): | 0.75 nm |
Features
- High UV and NIR Sensitivity: The AvaSpec-ULS2048XL-EVO features back-thinned CCD technology with large monolithic pixels (14x500 microns) for exceptional efficiency in the UV (200-400 nm) and NIR (950-1160 nm) ranges.
- Electronic Shutter: Enables integration times as low as 2 microseconds, enhancing the instrument's versatility in various applications.
- Enhanced Sensitivity: Optional detector collection lens improves sensitivity by up to 60% when used with larger core fibers.
- Configurable Options: Includes order-sorting filters to reduce 2nd order effects, purge ports for deep-UV measurements, and a variety of slit sizes, gratings, and fiber-optic entrance connectors (SMA or FC/PC).
- Advanced Electronics: Utilizes the AS7010 electronics board with USB3 (10 times faster than USB2) and Gigabit Ethernet for superior signal processing and data transfer.
- Fast Data Transfer: Connects to a PC via USB3 or Ethernet, delivering a scan every 2 milliseconds.
- Comprehensive Package: Comes with AvaSoft-basic software, USB cable, and an extensive manual for easy setup and operation.
Applications
- Environmental Monitoring: The high sensitivity and broad wavelength range make the AvaSpec-ULS2048XL-EVO ideal for monitoring atmospheric gases and pollutants.
- Biomedical Research: Suitable for analyzing biological samples due to its high UV and NIR sensitivity.
- Material Analysis: Effective for examining the spectral properties of various materials, including thin films and coatings.
- Quality Control in Manufacturing: Useful in ensuring product consistency and quality by measuring spectral characteristics.
- Food and Beverage Testing: Can be used to analyze the composition and quality of food products.
- Pharmaceutical Analysis: Assists in the quality control and analysis of pharmaceutical products.
- Agricultural Research: Helps in studying plant health and soil composition through spectral analysis.
- Semiconductor Industry: Utilized for inspecting wafers and other semiconductor materials.
- Forensic Science: Applicable in analyzing evidence and substances in forensic investigations.
- Optical Component Testing: Suitable for testing lenses, filters, and other optical components.
Frequently Asked Questions
The resolution of the AvaSpec-ULS2048XL-EVO spectrometer ranges from 0.09 –20 nm, depending on configuration.
The sensitivity of the AvaSpec-ULS2048XL-EVO spectrometer is 460,000 counts/µW per ms int. time.
The integration time range of the AvaSpec-ULS2048XL-EVO spectrometer is 2 µs – 20 seconds.
The data transfer speed of the AvaSpec-ULS2048XL-EVO spectrometer is 2.44 ms/scan (USB3).
The wavelength range of the AvaSpec-ULS2048XL-EVO spectrometer is 200-1160 nm.
