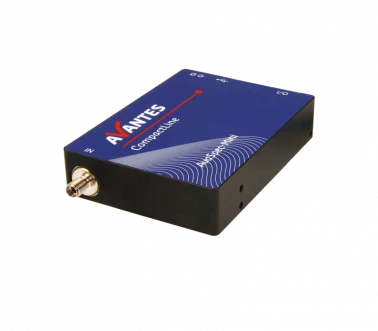

AvaSpec-Mini2048CL 300 Spectrometer

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 75 mm
Diffraction Grating: 300 lines/mm
Grating Blaze Wavelength: 300 nm
Spectral Range: 200 – 1100 nm
Spectral Resolution (Avg): 1.2 nm
Document icon Download Data Sheet Download icon

Features


  • Compact Design: The AvaSpec-Mini2048CL is as small as a deck of cards, making it highly portable and easy to integrate into various setups.

  • High Resolution: Achieve a resolution of up to 0.1 nm, ideal for precise spectral analysis.

  • Dynamic Range: Offers a dynamic range better than 3000:1, ensuring high-quality data capture.

  • Low Stray Light: Stray-light levels are kept below 0.2%, enhancing the accuracy of your measurements.

  • Lightweight: Weighs only 175 grams, facilitating easy transport and integration.

  • Advanced Detector: Equipped with a HAM S11639 CMOS linear array with 2048 pixels, providing high sensitivity and low dark noise.

  • Versatile Applications: Suitable for light analysis, chemical research, and Raman spectroscopy, among other fields.

  • Seamless Integration: Compatible with Avantes spectroscopy software and supports both Windows and Linux libraries.

  • Fast Data Transfer: USB 2.0 interface with a data transfer speed of 4.6 ms/scan and sample speed of 3.0 ms/scan.

  • Temperature Stability: Offers excellent temperature stability for reliable performance in varying conditions.

  • Customizable Options: Various gratings and slit sizes are available, along with order sorting coatings and filters for specific needs.

  • Power Supply: Powered via USB with a 500 mA requirement, ensuring easy power management.

  • Environmental Range: Operates efficiently within a temperature range of 0-55°C.

Applications


  • Light Analysis: Utilize the AvaSpec-Mini for precise light analysis in various research and industrial applications.

  • Chemical Research: The spectrometer's high resolution and sensitivity make it ideal for chemical analysis and research.

  • Raman Spectroscopy: Suitable for Raman spectroscopy applications due to its excellent dynamic range and low stray light levels.

  • OEM Integration: Designed for seamless integration into OEM products, offering reliability and temperature stability.

  • Educational Use: A compact and portable tool for educational purposes in physics and chemistry labs.

  • Environmental Monitoring: Can be used for monitoring environmental parameters through spectral analysis.

  • Biomedical Applications: Suitable for non-invasive biomedical applications requiring spectral data.

  • Quality Control: Implement in quality control processes for precise material and product analysis.

  • Food and Agriculture: Analyze food quality and agricultural products through spectral data collection.

  • Material Science: Study and analyze different materials and their properties using spectral analysis.
