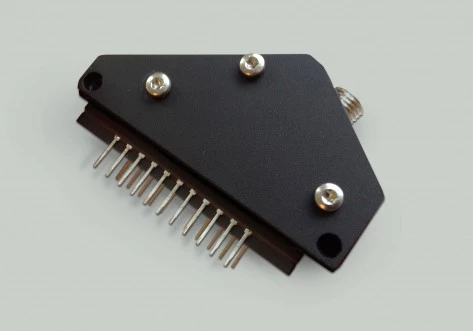

FREEDOM UV 190 – 435 nm OEM Spectrometer - Get a price quote from Ibsen Photonics A/S

Name: FREEDOM UV 190 – 435 nm OEM Spectrometer
Brand: Ibsen Photonics A/S
Availability: InStock

Description

The FREEDOM UV 190 – 435 nm OEM Spectrometer by Ibsen Photonics is a remarkable blend of compact design and affordability, tailored for high-performance portable solutions. This series stands out as an ideal choice for OEM applications, especially in handheld and portable systems where performance cannot be compromised. The FREEDOM UV spectrometers are engineered to deliver exceptional results, ensuring that users benefit from both portability and precision.

The FREEDOM UV series is composed of three distinct models: the FSU-101, FSU-305, and FSV-380, each offering unique advantages such as low cost, low noise, and fast integration time respectively. These spectrometers are built with a modular approach, allowing customers to select between a complete spectrometer, a spectrograph, or simply a spectrometer grating based on their specific needs. This flexibility ensures that the spectrometers can be seamlessly integrated into various systems, catering to a wide range of applications.

For those with specific requirements, Ibsen Photonics offers customization options to tailor the OEM spectrometers to meet exact specifications. This ensures that every client receives a product that is perfectly aligned with their operational needs. The robust and athermal design of the FREEDOM UV spectrometers further enhances their reliability, making them a dependable choice for diverse environments.

Specifications

Monochromator Type:	Not Specified
Spectral Range:	190 – 435 nm
Spectral Resolution (Avg):	0.7 nm

Download Data Sheet

Features

Compact and Cost-Efficient: Ideal for high-performance portable solutions, the FREEDOM UV spectrometers are designed for applications where performance cannot be compromised.
Wide Wavelength Range: Covers 190 – 435 nm, suitable for various spectroscopic applications.
Modular Approach: Choose from a complete spectrometer, spectrograph, or spectrometer grating, tailored to your specific needs.
Robust and Athermal Design: Ensures reliable performance in various environmental conditions.
Flexible Detector and Electronics: Compatible with multiple detectors and electronics, offering customization options.
Cost-Efficient Solutions: Designed to provide high performance at a competitive price.
Small Footprint: Compact dimensions (25 mm x 48 mm x 16 mm) make it ideal for space-constrained applications.
Low Noise and Fast Integration: Options available for low noise (FSU-305) and fast integration time (FSV-380).
Customization Available: Ibsen can tailor an OEM spectrometer to meet your exact specifications.
Temperature Stability: Minimal temperature drift (<0.02 nm/Degree C) ensures consistent performance.

Applications

Portable UV Spectrometers: Ideal for integration into compact handheld analytical devices.
Environmental Monitoring Systems: Enables UV analysis for air, water, and material monitoring applications.
Biomedical Diagnostic Instruments: Supports spectral sensing in compact clinical or laboratory instruments.
OEM System Development: Tailored for manufacturers requiring customized, robust UV spectrometer solutions.
Field Measurement Equipment: Durable construction for reliable operation in diverse field environments.

Add to Watchlist (My Watchlist)

Ships from:

Denmark

Sold by:

Ibsen Photonics A/S

On FindLight:

since 2018

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the FREEDOM UV 190 – 435 nm OEM Spectrometer?

It is a diode array-based spectrometer for OEM integration that combines compactness and low cost with high performance.

What are the features of the FREEDOM UV 190 – 435 nm OEM Spectrometer?

The spectrometer has a small footprint, a robust and athermal design, flexible detector and electronics, and is cost-efficient.

What are the applications of the FREEDOM UV 190 – 435 nm OEM Spectrometer?

The spectrometer can be used in biomedical/medical, defense, environmental monitoring, light characterization, materials identification, scientific research, semiconductor, and other applications.

Can I customize the FREEDOM UV 190 – 435 nm OEM Spectrometer to meet my exact needs?

Yes, if the specifications do not match your requirements, Ibsen can customize an OEM spectrometer to meet your exact needs.

What is the modular approach of the FREEDOM UV 190 – 435 nm OEM Spectrometer?

The spectrometer is based on a modular design, whereby customers can choose to buy a complete spectrometer, a spectrograph or simply a spectrometer grating, depending on the approach that they prefer.
