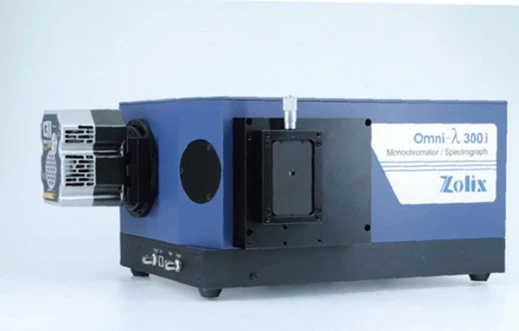

Ultra-high performance scientific research CCD spectrograph

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 320 mm
Diffraction Grating: 1200 lines/mm
Grating Blaze Wavelength: 500 nm
Spectral Range: 300 – 1200 nm
Linear Dispersion (Avg): 2.3 nm/mm
Spectral Resolution (Avg): 0.08 nm
Wavelength Accuracy: ±0.2 nm
Wavelength Repeatability: ±0.1 nm
Stray Light: 1×10-5
Focal Plane Size: 30×14 mm
Grating Mount: Interchangeable triple grating turret
Document icon Download Data Sheet Download icon

Features

-  Outstanding spectral image calibration
-  Extremely high wavelength accuracy
-  Single window design, delivers maximum photon throughput
-  Excellent stray light suppression
-  High resolution 15um pixel format
-  Greater band-pass capture in a single shot (30mm wide sensor)

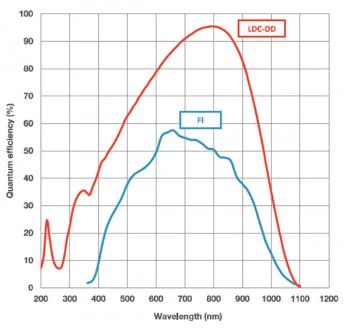

-  Peak QE up to 95% @ 780nm
-  10x lower dark current for low dark current deep-depletion

Applications

-  Raman spectroscopy
-  Emission and fluorescent spectroscopy
-  Analytical tasks in the range from UV to IR
-  Absorbance, Transmittance and Reflectance
