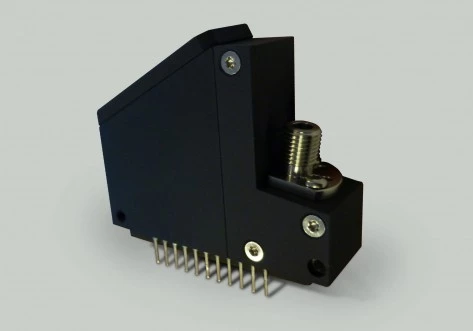

FREEDOM UV-NIR 190 – 1100 nm OEM Spectrometer

Specifications

Monochromator Type: Not Specified
Spectral Range: 190 – 1100 nm
Spectral Resolution (Avg): 1.8 nm
Document icon Download Data Sheet Download icon

Features


  • Compact and Cost-Efficient Design: The FREEDOM UV-NIR spectrometer offers a small footprint, making it ideal for portable and handheld instruments.

  • Wide Wavelength Range: Covers a range of 190 – 1100 nm, suitable for diverse applications.

  • High Diffraction Efficiency: Utilizes a new transmission grating developed by Ibsen Photonics, providing high efficiency for both polarizations.

  • Flexible Detector System: Compatible with various detectors and electronics, allowing for customization to meet specific needs.

  • Robust and Athermal Design: Ensures reliable performance across a wide temperature range (-10 to +45°C) with minimal temperature drift (<0.02 nm/°C).

  • Low Stray Light: Maintains high accuracy with stray light levels below 0.03%.

  • Multiple Models Available: Choose from the FSA-101 for low cost, FSA-380 for fast integration time, and FSA-315 for low noise, or request a custom OEM solution.

  • Direct Detector Interface: Direct interface to detector pins with optional electronics for enhanced flexibility.

  • Modular Approach: Options to purchase a complete spectrometer, a spectrograph, or just a spectrometer grating based on your needs.

  • Dimensions: Compact size of 48 mm x 54 mm x 16 mm, perfect for space-constrained applications.

Applications


  • Portable Spectroscopy Instruments: Ideal for handheld devices needing UV-NIR spectral analysis

  • Environmental Monitoring: Compact solutions for field-based chemical and biological sensing

  • Material Analysis: High-performance spectrometry in research and industrial quality control

  • OEM Integration: Flexible modules for system integrators developing custom spectrometers

  • Biomedical Devices: Compact spectrometers for diagnostic and analytical instrumentation
