Description

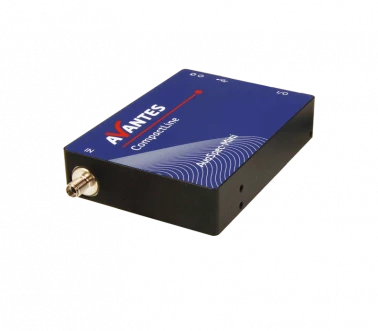

Introducing the AvaSpec-Mini4096CL, a groundbreaking miniature spectrometer that expertly balances compact size with high-resolution capabilities. As the first of its kind on the market, this spectrometer features a 4096 pixel CMOS array, offering an impressive resolution of up to 0.09 nm. Despite its small size, comparable to a deck of cards, it boasts a dynamic range exceeding 3000:1 and maintains stray-light levels below 0.2%. Weighing in at just 175 grams, the AvaSpec-Mini4096CL is designed for portability, making it an ideal choice for researchers on the move.
The AvaSpec-Mini4096CL is crafted using the latest in automated production technology, ensuring superior unit-to-unit reproducibility and temperature stability. These characteristics are vital for OEM customers seeking reliable integration into their own products. This spectrometer opens up vast opportunities in various research fields, including light analysis, chemical research, and Raman spectroscopy, demonstrating its versatility and broad applicability.
Seamless integration with Avantes' spectroscopy software, as well as compatibility with both Windows and Linux libraries, ensures that the AvaSpec-Mini4096CL is equipped to meet the demands of modern research environments. Its robust design and cutting-edge technology make it an invaluable tool for those seeking precision and reliability in a compact form factor.
AvaSpec-ULS2048CL-EVO NIR 600 Spectrometer
Specifications
| Monochromator Type: | Czerny-Turner |
|---|---|
| Effective Focal Length: | 75 mm |
| Diffraction Grating: | 300 lines/mm |
| Grating Blaze Wavelength: | 250 nm |
| Spectral Range: | 200 – 1100 nm |
| Spectral Resolution (Avg): | 1.2 nm |
Download Data Sheet
Features
- Compact Design: The AvaSpec-Mini4096CL is as small as a deck of cards, making it highly portable and easy to integrate into various setups.
- High Resolution: Offers an impressive resolution of up to 0.09 nm, ideal for detailed spectral analysis.
- Superior Dynamic Range: Delivers a dynamic range better than 3000:1, ensuring accurate and reliable data.
- Low Stray Light: Features stray-light levels lower than 0.2%, which enhances measurement precision.
- Lightweight: Weighs only 175 grams, facilitating easy transport and integration.
- Advanced Detector: Equipped with a HAM S13496 CMOS linear array, comprising 4096 pixels (7x200μm) for high sensitivity and performance.
- Temperature Stability: Built with the latest automated production technology for excellent temperature stability, crucial for OEM applications.
- Wide Wavelength Range: Covers a wavelength range of 200 - 1100 nm, suitable for various research areas such as light analysis, chemical research, and Raman spectroscopy.
- Fast Data Transfer: Achieves data transfer speeds of 8.9 ms/scan, ensuring quick and efficient data handling.
- Versatile Interface: Features USB 2.0 (480 Mbps) connectivity for seamless integration with PCs and other devices.
- Temperature Range: Operates efficiently within a temperature range of 0-55°C, suitable for diverse environments.
- Customizable Options: Offers various slit sizes and order sorting coatings to tailor the spectrometer to specific applications.
- Seamless Software Integration: Compatible with Avantes spectroscopy software and Windows/Linux libraries for enhanced functionality.
Applications
- Light Analysis: Ideal for various light analysis applications due to its high resolution and dynamic range.
- Chemical Research: Perfect for chemical research, offering precise spectral data for accurate analysis.
- Raman Spectroscopy: Suitable for Raman spectroscopy, providing the necessary sensitivity and resolution.
- OEM Integration: Designed for easy integration into OEM products, thanks to its compact size and reliable performance.
- Temperature Stability: Offers excellent temperature stability, ensuring consistent results across different environments.
- Portable Spectroscopy: Lightweight and portable, making it easy to carry and use in various locations.
- Software Compatibility: Seamlessly integrates with Avantes spectroscopy software and supports Windows and Linux libraries.
Frequently Asked Questions
What are some areas of research that can be covered with the AvaSpec-ULS2048CL-EVO NIR 600 Spectrometer?
What is the integration time range of the AvaSpec-ULS2048CL-EVO NIR 600 Spectrometer?
What is the dynamic range of the AvaSpec-ULS2048CL-EVO NIR 600 Spectrometer?
What is the wavelength range of the AvaSpec-ULS2048CL-EVO NIR 600 Spectrometer?
What is the weight of the AvaSpec-ULS2048CL-EVO NIR 600 Spectrometer?
