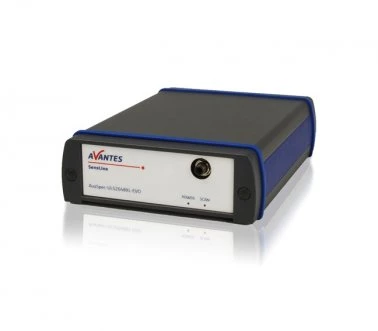

AvaSpec-ULS2048CL-EVO UV 1200 Spectrometer

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 75 mm
Diffraction Grating: 300 lines/mm
Grating Blaze Wavelength: 300 nm
Spectral Range: 200 – 1100 nm
Spectral Resolution (Avg): 1.5 nm
Document icon Download Data Sheet Download icon

Features


  • High UV and NIR Sensitivity: The AvaSpec-ULS2048x64-EVO is designed for applications requiring high sensitivity in the UV and NIR wavelength ranges (200-1160 nm).

  • Advanced Optical Bench: Features a Symmetrical Czerny-Turner optical bench with a 75 mm focal length for precise measurements.

  • Resolution Flexibility: Offers a resolution range of 0.09–20 nm, depending on configuration.

  • Low Stray Light: Less than 1% stray light, ensuring accurate spectral data.

  • High Sensitivity: Achieves up to 650,000 counts/µW per ms integration time.

  • Back-thinned CCD Detector: Equipped with a 2048x64 pixel back-thinned CCD image sensor for enhanced detection capabilities.

  • Excellent Signal-to-Noise Ratio: Offers a signal-to-noise ratio of 450:1.

  • 16-bit AD Converter: Provides precise digital conversion with a 1.33 MHz sampling rate.

  • Flexible Integration Time: Supports integration times from 2.4 ms to 25 seconds.

  • High-Speed Interfaces: Includes USB 3.0 (5 Gbps) and Gigabit Ethernet (1 Gbps) for fast data transfer.

  • Rapid Sample Speed: Achieves a sample speed of 2.4 ms/scan with on-board averaging.

  • Low Noise Levels: Features readout noise of 7.5 cnt RMS and dark noise of 11.5 cnt RMS.

  • Wide Dynamic Range: Offers a dynamic range of 6100 for comprehensive data capture.

  • Versatile Digital IO: Includes an HD-26 connector with 2 analog inputs, 2 analog outputs, 13 digital bidirectional channels, trigger, sync, strobe, and laser control.

  • Power Supply Options: Can be powered via USB (885 mA) or external 12VDC (420 mA).

  • Compact Design: Measures 177 x 127 x 44.5 mm and weighs 1180 grams.

  • Customizable Configuration: Available with various slit sizes, gratings, and fiber-optic entrance connectors (SMA or FC/PC).

Applications


  • Environmental Monitoring: Ideal for applications like Differential Optical Absorption Spectroscopy (DOAS) due to its high UV sensitivity and precise wavelength detection.

  • Chemical Analysis: Suitable for analyzing chemical compositions in the UV and NIR range, benefiting from its broad wavelength range and high sensitivity.

  • Biomedical Research: Utilized in various spectroscopic techniques for studying biological samples, thanks to its high signal-to-noise ratio and dynamic range.

  • Industrial Quality Control: Employed in monitoring production processes and ensuring product quality through precise spectral analysis.

  • Material Science: Used for investigating material properties and detecting impurities with its high-resolution capabilities.

  • Optical Component Testing: Beneficial for testing and characterizing optical components due to its customizable grating and slit options.

  • Research and Development: Offers flexibility and precision for various R&D applications in academic and industrial settings.
