Description

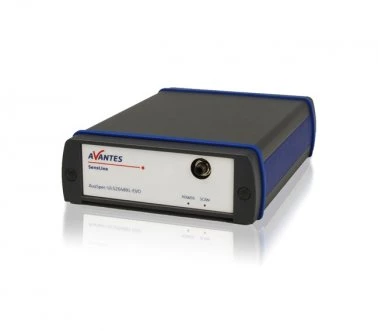

The AvaSpec-ULS2048x64-EVO SensLine spectrometer is designed to deliver high sensitivity in both the ultraviolet (UV) and near-infrared (NIR) ranges. Utilizing a symmetrical Czerny-Turner optical bench with a 75 mm focal length, this spectrometer offers a wide wavelength range from 200 to 1160 nm. Its back-thinned CCD image sensor, featuring 2048x64 pixels, ensures excellent detection capabilities, making it suitable for a variety of spectroscopic applications.
This model is particularly effective for applications that do not require extended integration times, as it operates efficiently without the need for cooling. The AvaSpec-ULS2048x64-EVO is a cost-effective solution for less demanding UV and NIR applications, yet it maintains a high level of performance with a sensitivity of 650,000 counts/µW per ms integration time. Its compact dimensions and lightweight design make it a versatile choice for both laboratory and field use. The AvaSpec-ULS2048x64-EVO is equipped with advanced AS7010 electronics, offering high-speed data transfer via USB 3.0 and Gigabit Ethernet interfaces. This allows for rapid data acquisition with a sample speed of 2.4 ms per scan, ensuring that users can capture and analyze data efficiently.
The spectrometer comes with AvaSoft-basic software and necessary accessories, providing a comprehensive package for immediate deployment. Customization options for the AvaSpec-ULS2048x64-EVO include a variety of slit sizes, gratings, and fiber-optic entrance connectors (SMA or FC/PC), catering to specific measurement needs. Additional features such as an order-sorting filter and purge ports for deep-UV measurements enhance its versatility. This makes the AvaSpec-ULS2048x64-EVO a reliable and adaptable instrument for researchers and professionals seeking precise spectral analysis across a broad range of applications.
AvaSpec-ULS2048CL-EVO UV/VIS Spectrometer
Specifications
| Monochromator Type: | Czerny-Turner |
|---|---|
| Effective Focal Length: | 75 mm |
| Diffraction Grating: | 600 lines/mm |
| Grating Blaze Wavelength: | 750 nm |
| Spectral Range: | 600 – 1160 nm |
| Spectral Resolution (Avg): | 0.75 nm |
Download Data Sheet
Features
- High UV and NIR Sensitivity: The AvaSpec-ULS2048x64-EVO is designed for high sensitivity in the UV and NIR ranges, making it ideal for a variety of spectroscopic applications.
- Symmetrical Czerny-Turner Optical Bench: Features a 75 mm focal length, providing a wavelength range of 200-1160 nm.
- Resolution Flexibility: Offers a resolution range of 0.09–20 nm, depending on the configuration.
- Low Stray Light: Less than 1% stray light, enhancing measurement accuracy.
- High Sensitivity: Achieves 650,000 counts/µW per ms integration time, ensuring precise measurements.
- Advanced Detector: Equipped with a back-thinned CCD image sensor with 2048x64 pixels and a height of 0.89 nm.
- Excellent Signal-to-Noise Ratio: Offers a signal-to-noise ratio of 450:1 for clear and accurate data.
- Fast Data Processing: Utilizes a 16-bit AD converter with a speed of 1.33 MHz.
- Flexible Integration Time: Ranges from 2.4 ms to 25 seconds, catering to various application needs.
- High-Speed Interface Options: Includes USB 3.0 (5 Gbps) and Gigabit Ethernet (1 Gbps) for rapid data transfer.
- Low Noise Levels: Features readout noise of 7.5 cnt RMS and dark noise of 11.5 cnt RMS.
- Wide Dynamic Range: Provides a dynamic range of 6100 for detailed spectral analysis.
- Comprehensive Digital IO: Includes HD-26 connector with multiple analog and digital connections, trigger, sync, strobe, and laser options.
- Power Supply Flexibility: Can be powered via USB (885 mA) or an external 12VDC source (420 mA).
- Compact and Lightweight: Measures 177 x 127 x 44.5 mm and weighs 1180 grams, making it portable and easy to integrate.
- Versatile Configuration Options: Offers a range of slit sizes, gratings, and fiber-optic connectors (SMA or FC/PC).
Applications
- Environmental Monitoring: Ideal for applications such as Differential Optical Absorption Spectroscopy (DOAS) due to its high UV response and precise wavelength detection capabilities.
- Chemical Analysis: Suitable for analyzing chemical compositions in both UV and NIR ranges, providing high sensitivity and resolution.
- Material Science: Offers detailed spectral analysis for research and development in material properties and behaviors.
- Biomedical Research: Utilized in the study of biological samples and tissues, benefiting from the high sensitivity and broad wavelength range.
- Quality Control: Ensures product consistency in manufacturing processes through precise spectral measurements.
- Optical Component Testing: Used to evaluate the performance and quality of optical components and systems.
- Light Source Characterization: Measures the spectral output of various light sources for development and quality assurance.
- Pharmaceutical Testing: Assists in the analysis and verification of pharmaceutical compounds and formulations.
Frequently Asked Questions
What options are available for the AvaSpec-ULS2048CL-EVO spectrometer?
What is the resolution of the AvaSpec-ULS2048CL-EVO spectrometer?
What is the interface of the AvaSpec-ULS2048CL-EVO spectrometer?
What is the sensitivity of the AvaSpec-ULS2048CL-EVO spectrometer?
What is the wavelength range of the AvaSpec-ULS2048CL-EVO spectrometer?
