Description
The Shamrock 163 is an innovative and compact benchtop spectrograph, designed to meet the rigorous demands of modern spectroscopy research. As the most compact research-grade Czerny-Turner spectrograph available, it boasts a 163 mm focal length and a high F/3.6 aperture. This makes it an ideal choice for a variety of general benchtop spectroscopy measurements, providing researchers with the precision and flexibility needed for cutting-edge experiments.
This spectrograph is engineered with a wide range of seamlessly interchangeable gratings, slits, and light coupling accessories. This versatility allows for easy customization and optimization of the system to suit specific experimental requirements. The compact and rugged design of the Shamrock 163 ensures it can be easily integrated into existing laboratory setups, offering both horizontal and vertical mounting positions for maximum adaptability.
Beyond its physical attributes, the Shamrock 163 is designed to enhance user experience with its imaging-configurable platform. This feature supports multi-track spectroscopy, enabling the simultaneous acquisition of signals from multiple fiber legs. Such capabilities are essential for researchers who require low cross-talk and high precision in their spectroscopy applications.
In terms of usability, the Shamrock 163 includes a calibrated micrometer drive for precise wavelength selection, ensuring simple and rapid adjustments during experiments. Its compact size and lightweight nature further contribute to its portability and ease of use, making it an excellent choice for both stationary and mobile laboratory environments.
Overall, the Shamrock 163 represents a perfect blend of performance, flexibility, and user-friendliness, making it a valuable tool for researchers seeking reliable and high-quality spectroscopy results.
Shamrock 163 Spectrograph - SR1-GRT-0600-0300
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 163 mm |
| Diffraction Grating: | 600 lines/mm |
| Grating Blaze Wavelength: | 300 nm |
| Spectral Range: | 200 – 2300 nm |
| Linear Dispersion (Avg): | 9.5 nm/mm |
| Spectral Resolution (Avg): | 0.57 nm |
Features
- Compact & Rugged Design: The Shamrock 163 features a robust design with both horizontal and vertical mounting positions, ensuring portability and ease of integration.
- Imaging-Configurable Platform: Ideal for multi-track spectroscopy, the lens-based accessories optimize system performance for low cross-talk and simultaneous multi-leg fiber signal acquisition.
- Interchangeable Gratings: Offers a wide range of gratings with a simple precision locking mechanism for seamless upgradability.
- Variety of Fixed Slits: Features interchangeable laser-cut precision slits with widths ranging from 10 μm to 200 μm.
- Multiple Light Coupling Interfaces: Includes fiber-optics and C-mount microscope couplers for versatile connectivity.
- Calibrated Micrometer Drive: Facilitates simple and rapid wavelength adjustment for precise selection.
Applications
- General Benchtop Spectroscopy: Ideal for research laboratories requiring high-performance compact spectrographs.

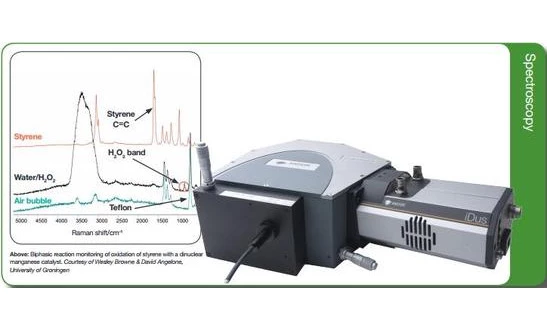

- Raman Spectroscopy: Suitable for detailed Raman shift analysis across various materials.
- Fluorescence Spectroscopy: Enables accurate emission measurements for bioanalytical applications.
- Multi-Track Fibre Spectroscopy: Supports simultaneous signal acquisition from multiple fibre legs with low cross-talk.
- Educational & Training Labs: Compact and user-friendly design for spectroscopy training modules.
- Laser Characterisation: Facilitates precise wavelength and linewidth measurements in laser research.
Frequently Asked Questions

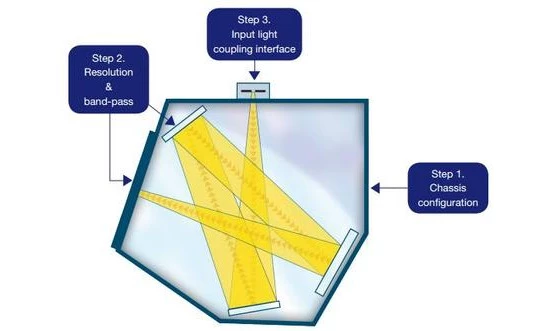

The Shamrock 163 Spectrograph can be customized by selecting the appropriate chassis configuration, gratings, detector, input light coupling interface, and software interface.
The Shamrock 163 Spectrograph has a wide range of interchangeable gratings, slits, and light coupling accessories available.
The weight of the Shamrock 163 Spectrograph is 3.5 kg [7.71 lb].
The focal length of the Shamrock 163 Spectrograph is 163 mm.
The aperture of the Shamrock 163 Spectrograph is high F/3.6.
