Description

The OPTOMAN PP-UVFS-25.4-6.35-ULLM8SHL is a premium high-power ultrafast laser mirror engineered for demanding femtosecond and picosecond laser applications operating at 1030 nm. Manufactured on a precision UV fused silica substrate and coated using advanced Ion Beam Sputtering (IBS) technology, this normal-incidence mirror delivers greater than 99.9% reflectivity while maintaining exceptional optical stability under high average and peak power conditions.

Designed for 0° angle of incidence, the mirror combines high laser-induced damage threshold (LIDT), low absorption, and outstanding coating durability to preserve beam quality during continuous operation. Its low-loss optical performance makes it an excellent choice for Yb:YAG laser systems used in industrial micromachining, scientific research, nonlinear optics, and advanced photonics applications where reliability and pulse integrity are essential.

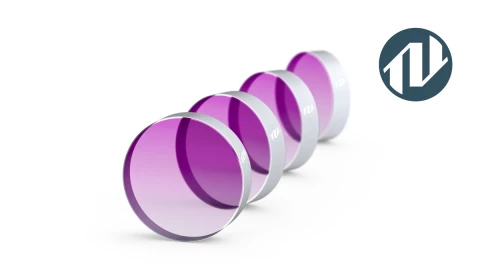

PP-UVFS-25.4-6.35-ULLM8SHL 1030 nm High-Power Ultrafast Laser Mirror

Specifications

Diameter: 25.4 mm
Thickness: 6.35 mm
Wavelength Range: 1010 – 1050 nm
Clear Aperture (CA): 80 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 0 – 0 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/6
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Unspecified
Parallelism: 5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRa @ AOI, @ Peak Wavelength): 99.9 %
Manufacturer Part Number (MPN): PP-UVFS-25.4-6.35-ULLM8SHL
FindLight SKU: FL-24508

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-25.4-6.35-ULLM8SHL
  • Optimized for 1030 nm ultrafast laser wavelength
  • Normal-incidence (0° AOI) dielectric mirror
  • >99.9% reflectivity for maximum optical efficiency
  • Ion Beam Sputtered (IBS) coating for superior environmental stability
  • UV fused silica substrate with excellent thermal and mechanical properties
  • High measured laser-induced damage threshold for high-power femtosecond and picosecond lasers
  • 25.4 mm diameter with 6.35 mm thickness
  • λ/6 surface flatness and 20-10 scratch-dig optical quality
  • Low absorption coating designed for long operational lifetime and stable beam performance

Applications

  • Yb:YAG ultrafast laser systems
  • Femtosecond and picosecond laser beam delivery
  • High-power laser material processing
  • Precision laser micromachining
  • Optical research laboratories
  • Multipass laser amplifiers
  • Pulse compression and beam routing systems
  • Nonlinear optics experiments
  • Scientific instrumentation
  • Industrial laser manufacturing platforms

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What laser wavelength is this mirror designed for?
The PP-UVFS-25.4-6.35-ULLM8SHL is optimized for operation at 1030 nm, making it ideal for Yb:YAG-based femtosecond and picosecond laser systems requiring extremely high reflectivity.
What makes IBS coatings beneficial for ultrafast lasers?
Ion Beam Sputtering produces dense, low-defect dielectric coatings with very low absorption, excellent environmental durability, and outstanding resistance to high laser fluence. These characteristics improve mirror lifetime and maintain consistent optical performance in demanding ultrafast applications.
Can this mirror withstand high-power laser operation?
Yes. The mirror is specifically developed for high-power ultrafast laser environments and features a high measured laser-induced damage threshold, allowing reliable operation with high peak-power femtosecond and picosecond laser pulses when used within the specified operating conditions.
Is this mirror intended for angled or normal-incidence use?
This model is optimized for 0° angle of incidence (normal incidence). Using the mirror at its specified angle ensures the highest reflectivity and optical performance.
Which applications are best suited for this mirror?
The mirror is well suited for beam steering, high-power beam delivery, laser material processing, scientific research, nonlinear optics, multipass amplifier systems, and other precision ultrafast laser applications where high reflectivity, excellent durability, and long-term stability are required.

Got more questions? Use the inquiry form to ask the supplier directly.
