Description

The OPTOMAN PP-UVFS-25.4-6.35-LLM188 is a premium ultrafast laser mirror engineered for demanding femtosecond and picosecond laser applications operating at 515 nm. Manufactured on a UV-grade fused silica substrate with an advanced ion beam sputtered (IBS) high-reflectivity coating, this mirror delivers outstanding optical performance, exceptional laser-induced damage resistance (LIDT), and low group delay dispersion (GDD) to preserve ultrashort pulse characteristics.

Designed for high-average-power laser systems and second-harmonic Yb:YAG lasers, the mirror provides greater than 99.9% reflectivity at normal incidence (0° AOI) while maintaining excellent wavefront quality and long-term coating durability. Its robust construction minimizes thermal effects, resists color-change degradation under intense laser irradiation, and ensures reliable operation in industrial, scientific, micromachining, and advanced photonics environments.

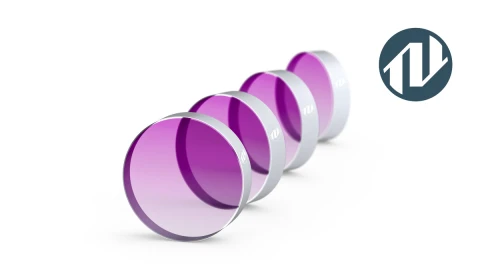

PP-UVFS-25.4-6.35-LLM188 Ultrafast 515 nm High-Power Laser Mirror

Specifications

Diameter: 25.4 mm
Thickness: 6.35 mm
Wavelength Range: 515 – 515 nm
Clear Aperture (CA): 80 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 0 – 0 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/8
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Lambda/10
Parallelism: 3 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRa @ AOI, @ Peak Wavelength): 99.9 %
Manufacturer Part Number (MPN): PP-UVFS-25.4-6.35-LLM188
FindLight SKU: FL-24505

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-25.4-6.35-LLM188
  • Optimized for 515 nm ultrafast laser applications
  • High reflectivity >99.9% at 515 nm, 0° angle of incidence
  • Advanced IBS coating for maximum durability and coating stability
  • Low group delay dispersion for femtosecond and picosecond pulse preservation
  • UV-grade fused silica (Corning 7980 0F) substrate
  • Diameter: 25.4 mm
  • Thickness: 6.35 mm
  • Surface quality: 20-10 scratch-dig (MIL-PRF-13830B)
  • Surface irregularity: λ/8 @ 633 nm
  • Surface flatness: λ/10 @ 633 nm over any 10 mm aperture
  • High laser-induced damage threshold for demanding ultrafast laser systems
  • Excellent beam quality with minimal wavefront distortion
  • Suitable for continuous industrial and research operation

Applications

  • Ultrafast femtosecond laser systems
  • Picosecond laser processing
  • Second-harmonic (515 nm) Yb:YAG laser platforms
  • Precision laser micromachining
  • Semiconductor manufacturing
  • Scientific laser research
  • Pulse compression systems
  • Beam steering and delivery optics
  • Nonlinear optics laboratories
  • High-power industrial laser integration

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength is the PP-UVFS-25.4-6.35-LLM188 optimized for?
This mirror is specifically designed for operation at 515 nm with a 0° angle of incidence, making it ideal for frequency-doubled Yb-based ultrafast laser systems.
Why is an IBS coating beneficial for ultrafast laser mirrors?
Ion Beam Sputtered (IBS) coatings produce extremely dense and stable optical films with high reflectivity, low absorption, superior environmental durability, and excellent resistance to high laser fluence, making them well suited for demanding ultrafast laser applications.
Can this mirror be used with femtosecond lasers?
Yes. The mirror is specifically engineered for both femtosecond and picosecond laser systems, offering low group delay dispersion that helps maintain ultrashort pulse duration while providing high damage resistance.
Which laser systems are compatible with this mirror?
The mirror is suitable for many frequency-doubled Yb:YAG laser platforms operating at 515 nm, including systems used for precision micromachining, materials processing, nonlinear optics, and scientific research. It is commonly paired with industrial and research ultrafast laser sources.
What industries commonly use this ultrafast laser mirror?
Typical applications include precision manufacturing, semiconductor fabrication, photonics research, laser materials processing, medical device manufacturing, university laboratories, and industrial ultrafast laser systems requiring high optical performance and long-term reliability.

Got more questions? Use the inquiry form to ask the supplier directly.
