Description

The OPTOMAN PP-UVFS-25.4-6.35-LLM130 is a premium ultrafast laser mirror engineered for demanding femtosecond and picosecond laser applications operating in the 980–1080 nm spectral range. Manufactured on a high-quality UV fused silica substrate and coated using advanced Ion Beam Sputtering (IBS) technology, this mirror delivers greater than 99.8% reflectivity while maintaining exceptionally low group delay dispersion (GDD), helping preserve ultrashort pulse duration and beam quality.

Optimized for operation around 1030 nm at near-normal incidence (0–4° AOI), the mirror combines outstanding optical performance with excellent durability, making it suitable for high-power Yb:YAG and Yb-fiber laser systems used in industrial processing, scientific research, nonlinear optics, and precision micromachining. Its precision-polished surface, high flatness, and reliable coating performance make it an excellent choice for laser laboratories, OEM integration, and advanced photonics systems.

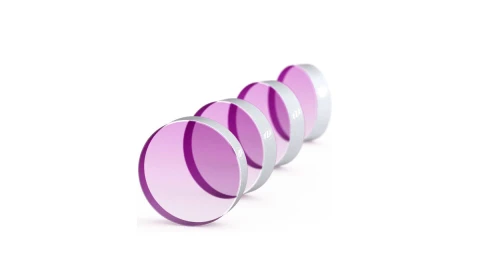

PP-UVFS-25.4-6.35-LLM130 Ultrafast Laser Mirror

Specifications

Diameter: 25.4 mm
Thickness: 6.35 mm
Wavelength Range: 980 – 1080 nm
Clear Aperture (CA): 80 %
Substrate Material: UV Grade Fused Silica
Angle Of Incidence (AOI): 0 – 4 deg
Surface Quality, S1 (scratch-dig): 20-10
Surface Quality, S2 (scratch-dig): Inspection Polished
Surface Flatness Over CA, S1 (@633nm Or Per Manufacturer): Lambda/8
Surface Flatness Over CA, S2 (@633nm Or Per Manufacturer): Unspecified
Parallelism: 5 arcmin
S1 Surface: Coated
S2 Surface: Uncoated
Reflectivity (HRa @ AOI, @ Peak Wavelength): 99.8 %
GDD R @ AOI, @ Peak Wavelength: 30 fs^2
Manufacturer Part Number (MPN): PP-UVFS-25.4-6.35-LLM130
FindLight SKU: FL-24514

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Manufacturer Part Number: PP-UVFS-25.4-6.35-LLM130
  • High-reflectivity IBS coating with HR >99.8% from 980–1080 nm
  • Optimized for 1030 nm ultrafast laser applications
  • Extremely low |GDD| <30 fs² to preserve femtosecond pulse integrity
  • UV fused silica (UVFS) substrate for excellent thermal and optical stability
  • 25.4 mm diameter with 6.35 mm thickness for compatibility with standard optical mounts
  • Surface quality: 20-10 Scratch-Dig
  • Surface flatness better than λ/8 @ 633 nm
  • Designed for 0–4° angle of incidence
  • High laser damage resistance enabled by dense IBS dielectric coatings
  • Ideal for both laboratory research and industrial laser systems

Applications

  • Yb:YAG ultrafast laser systems
  • Yb-doped fiber lasers
  • Femtosecond laser beam steering
  • Picosecond laser beam delivery
  • Precision laser micromachining
  • Ultrafast spectroscopy
  • Nonlinear optical experiments
  • Optical amplifier systems
  • Scientific research laboratories
  • Industrial laser processing equipment
  • OEM laser system integration
  • Pulse-preserving optical beam paths

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.6000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength range is the PP-UVFS-25.4-6.35-LLM130 designed for?
The mirror is optimized for high-reflectivity operation between 980 nm and 1080 nm, with peak performance around 1030 nm, making it ideal for Yb-based ultrafast laser systems.
Why is low group delay dispersion (GDD) important?
Low GDD minimizes pulse broadening as ultrashort laser pulses reflect from the mirror. This helps maintain pulse duration, peak power, and overall system performance in femtosecond and picosecond laser applications.
What coating technology is used on this mirror?
The mirror features an Ion Beam Sputtered (IBS) dielectric coating. IBS coatings are known for excellent optical density, superior environmental stability, high reflectivity, and outstanding resistance to laser-induced damage.
Which laser systems is this mirror compatible with?
The mirror is well suited for many 1030 nm ultrafast laser platforms, including Yb:YAG and Yb-fiber lasers commonly used in micromachining, spectroscopy, nonlinear optics, and scientific research. Manufacturer examples include systems from Light Conversion, Coherent, TRUMPF, Spectra-Physics, Amplitude, EKSPLA, Thorlabs, and others.
Can this mirror be used in high-power ultrafast laser applications?
Yes. The combination of a UV fused silica substrate, precision polishing, and durable IBS coating makes the mirror suitable for high-peak-power femtosecond and picosecond laser systems where excellent optical performance and long-term reliability are required.

Got more questions? Use the inquiry form to ask the supplier directly.
