Cylindrical Lens - CYX15-010-012
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

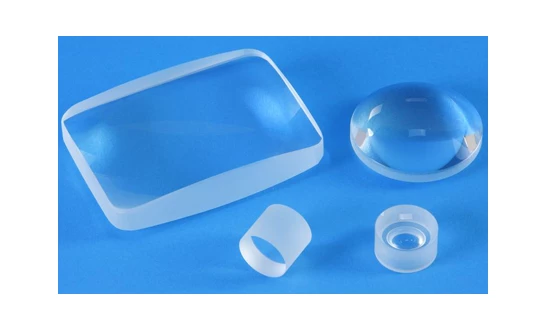

Discover the precision and quality of our cylindrical lenses, meticulously crafted to meet the highest standards in optical performance. At Tower Optical Corporation, we understand that quality is not just a feature—it's a commitment. Our lenses are designed with precision engineering to ensure optimal performance in a variety of optical applications. Whether you are looking for plano convex or plano concave cylindrical lenses, our products are manufactured with the utmost attention to detail, ensuring that each lens meets stringent specifications.
Our cylindrical lenses are made from high-quality BK7 material or its equivalent, providing excellent clarity and durability. Each lens is designed with a wavelength of 587.6nm, ensuring precise light manipulation for your optical needs. With dimensional tolerances of ±0.2mm and focal length tolerances of ±2%, our lenses offer reliable performance and consistency. The centering tolerance of 5~15 arc minutes and a clear aperture of 90% further enhance the precision of our lenses, making them ideal for a wide range of optical systems.
At Tower Optical Corporation, we pride ourselves on our ability to customize our products to meet your specific requirements. If you have unique specifications or designs, we invite you to send us your drawings or specifications, and we will provide a tailored quotation. Our commitment to quality and customer satisfaction is reflected in every product we deliver. Experience the difference that precision and quality make with our cylindrical lenses, where quality is truly priceless.
Cylindrical Lens - CYX15-010-012

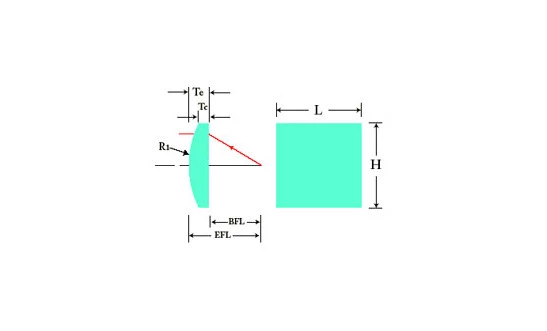

Specifications |
|
|---|---|
| Lens Type: | Positive |
| Material: | BK7 |
| Size: | 10 mm |
| Focal Length: | 12.7 mm |
| Design Wavelength: | 587.6nm |
| Dimensional Tolerance: | ±0.2mm |
| Focal Length Tolerance: | ±2% |
| Centering Tolerance: | 5~15 arc min |
| Clear Aperture: | 90% |
| Surface Quality: | 60-40 S/D |
| Bevel: | 0.2mm x 45° |
Features
- High-Quality Material: Made from BK7 or equivalent, ensuring durability and precision.
- Design Wavelength: Optimized for 587.6nm, suitable for a wide range of optical applications.
- Dimensional Tolerance: Precision manufacturing with a tolerance of ±0.2mm.
- Focal Length Tolerance: Accurate focal lengths with a tolerance of ±2%.
- Centering Tolerance: Maintains alignment with a centering tolerance of 5~15 arc minutes.
- Clear Aperture: Offers a clear aperture of 90% for maximum light transmission.
- Surface Quality: Features a surface quality of 60-40 S/D, ensuring minimal imperfections.
- Bevel: Includes a 0.2mm x 45° bevel for safe handling and integration.
- Coating: No coating, allowing for custom applications and coatings as needed.
- Custom Options Available: Custom versions available upon request; send your specifications for a quotation.
Applications
- Optical Systems: Cylindrical lenses are used in optical systems to focus light into a line or to change the aspect ratio of an image.
- Laser Applications: These lenses are often used in laser systems to shape the laser beam into a line or to correct astigmatism.
- Imaging Systems: Cylindrical lenses can be used in imaging systems to stretch or compress images in one dimension.
- Projection Systems: They are used in projection systems to correct distortions and improve image quality.
- Scientific Research: Cylindrical lenses are used in various scientific instruments and experiments to manipulate light paths.
- Medical Devices: These lenses are utilized in medical imaging devices and laser treatments.
- Industrial Applications: Used in industrial laser systems for cutting, welding, and material processing.
- Telecommunications: Cylindrical lenses are used in fiber optics and other telecommunications equipment to focus or expand light beams.
Frequently Asked Questions
The material of the cylindrical lens is BK7 or equal.
The surface quality of the cylindrical lens is 60-40 S/D.
The dimensional tolerance of the cylindrical lens is ±0.2mm.
Yes, custom versions of the cylindrical lens are available. Customers can send their drawings or specifications to get a quotation.
No, the cylindrical lens does not come with a coating.
