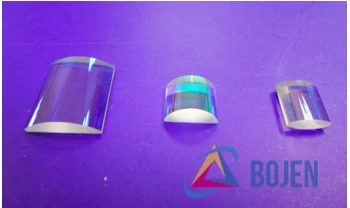

Plano-Concave Cylindrical Lenses
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Description
Plano-Concave Cylindrical Lenses are specialized optical components designed to manipulate light in one dimension. Unlike spherical lenses, which affect light in all directions, these lenses focus on altering the light path along a single axis. This unique characteristic makes them invaluable in applications where precise control of light shaping is necessary, such as in line generation for laser systems. By converting a collimated laser beam into a line, these lenses enable more efficient and targeted illumination, which is crucial in various optical systems.
The design of Plano-Concave Cylindrical Lenses involves a flat surface on one side and a concave curve on the other. This structure helps in diverging light beams efficiently. When using these lenses to diverge a beam, it is recommended that the curved surface faces the light source to minimize aberrations. This configuration ensures optimal performance and maintains the integrity of the light path, which is essential for high-precision tasks.
These lenses are available in a range of focal lengths from -5.0 to -1000.0 mm, with a tolerance of ±1%. The dimensions vary from 1.0 mm to 200.0 mm, and they are crafted to high-quality standards with scratch and dig specifications ranging from 80/50 to 40/20. Additionally, the center error is maintained between 5 arc minutes to 3 arc minutes, ensuring precise optical performance.
For enhanced durability and performance, Plano-Concave Cylindrical Lenses can be coated with MgF2 to protect their surfaces or with anti-reflective (AR) coatings to increase light transmission. These coatings are particularly beneficial in applications where maximizing light throughput and minimizing reflection losses are critical.
Plano-Concave Cylindrical Lenses
Specifications |
|
|---|---|
| Lens Type: | Negative |
| Material: | BK7, FS, UVFS, CaF2, ZnSe, Ge, H-K9L |
| Size: | 1 mm |
| Focal Length: | -5 mm |
| Available Focal Lengths: | -5mm to -1000mm |
| Available Dimensions: | 1mm to 200mm |
| Surface Roughness (Scratch & Dig): | 80/50 to 40/20 |
Features
- Available Focal Lengths: Ranging from -5.0 mm to -1000.0 mm, offering a wide variety of options to suit different applications.
- Focal Length Tolerance: ±1% ensures precision and accuracy in optical performance.
- Dimension Range: From 1.0 mm to 200.0 mm, providing flexibility for various design requirements.
- Scratch & Dig: Quality assurance with ratings from 80/50 to 40/20, ensuring minimal surface defects.
- Center Error: Maintained between 5 arc min to 3 arc min for optimal alignment and performance.
- Unique Functionality: Acts as a plano-concave spherical lens on one axis, ideal for applications requiring one-dimensional light shaping.
- Typical Applications: Perfect for converting collimated lasers into line generators or for anamorphic image shaping using lens pairs.
- Aberration Minimization: Curved surface should face the light source to reduce aberrations when diverging beams.
- Coating Options: Available with MgF2 coating for surface protection or AR coating to enhance light transmission.
Applications
- One-Dimensional Light Shaping: Ideal for applications requiring the shaping of a light source in one dimension.
- Line Generation: Can be used to transform a collimated laser beam into a line generator.
- Anamorphic Image Shaping: Pairs of cylindrical lenses can anamorphically shape images.
- Diverging Beams: The curved surface should face the source to minimize aberration when used to diverge a beam.
- Customizable Focal Lengths: Focal lengths available from -5.0 to -1000.0 mm with a tolerance of ±1%.
- Surface Coatings: Can be coated with MgF2 for surface protection or AR coated to increase transmission.
Frequently Asked Questions
Plano-Concave Cylindrical Lenses are used in applications that require one dimensional shaping of a light source.
Pairs of cylindrical lenses may be used to anamorphically shape images.
To minimize the introduction of aberration, the curved surface of the lens should face the source when used to diverge a beam.
The focal length tolerance of Plano-Concave Cylindrical Lenses is ±1%.
Yes, Plano-Concave Cylindrical Lenses can be coated with MgF2 to protect the surface or AR coated to increase the transmission.
