Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 45
Specifications
Groove Density: | 40 l/mm |
---|---|
Blaze Wavelength: | 25000 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 90 mm |
Dimension (Height): | 90 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions
What is the blaze angle of the ruled plane gratings?
The blaze angle of the ruled plane gratings is given by the formula: 2a sinα= kλB, where a is the groove spacing, k is the diffraction order (usually k=1) and λB is the blaze wavelength (in Littrow configuration). The blaze angle is indicated on page 35.
What materials are available for the substrate and coating of the ruled plane gratings?
Standard substrate material is Pyrex, but substrates including fused silica, Zerodur, ULE, metals, or other materials can be considered upon request. Standard coating is aluminum, but AlMgF2, gold, or platinum are also available for an additional cost.
What are ruled plane gratings?
Ruled plane gratings are high-precision replicas of ruled master gratings produced by HORIBA Jobin Yvon. They are used in monochromators, spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What is the efficiency performance of the ruled plane gratings?

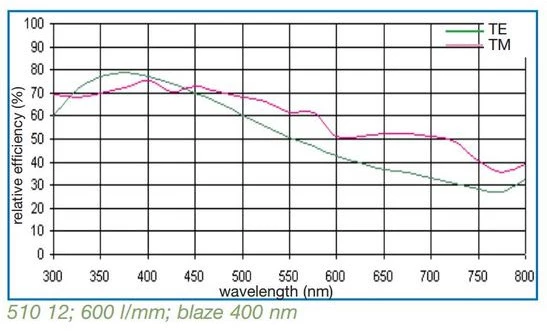

The efficiency performance of the ruled plane gratings varies depending on the specific grating. Efficiency curves are provided for reference only and do not indicate grating specifications.
What are the dimensions of the high-precision replica gratings?
The dimensions of the high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
