Beamsplitter Cube - BSPN1-20 488nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description

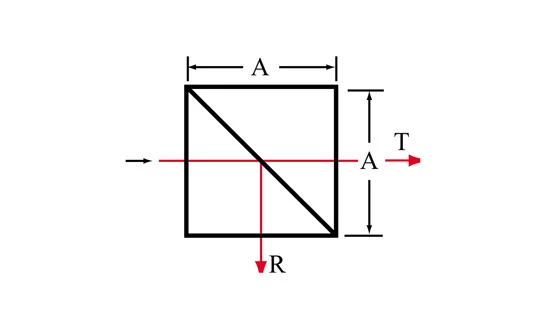

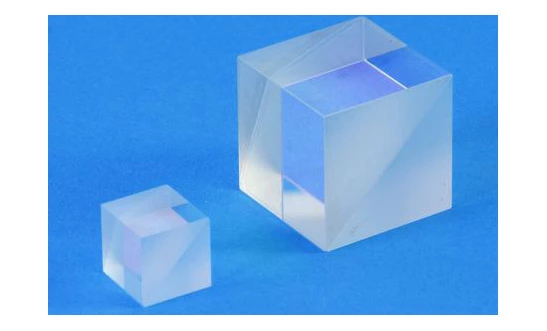

Polarization Beamsplitter Cubes are precision optical components designed to separate light beams based on their polarization states. These beamsplitters utilize two complementary prisms to achieve this separation, ensuring that the output beam parallel to the input is p-polarized, while the orthogonal output beam is s-polarized. This design is crucial for applications requiring precise control over light polarization.
The beamsplitters are crafted from high-quality BK-7 grade A optical glass, offering a robust and reliable solution for various optical systems. With a dimension range from 3.2mm to 50.8mm and a dimensional tolerance of ±0.2mm, these cubes are versatile enough to fit a wide array of setups. The angular tolerance of ±3 arc minutes and a surface quality of 60/40 ensure that the beamsplitters meet stringent optical standards.
These beamsplitters boast an impressive extinction ratio of >100:1, with principal transmittance values of Tp>95% and Ts<1%, and principal reflectance values of Rs>99% and Rp<5%. The wavelength range spans from 226nm to 2300nm, making them suitable for a broad spectrum of applications. Additionally, the polarization beamsplitter coating is applied on the hypotenuse, and an anti-reflective coating ensures R<0.25% per face for all four faces, minimizing loss and maximizing efficiency.
For those with specific requirements, Tower Optical Corporation offers custom versions of these beamsplitters. Clients are encouraged to send their drawings or specifications to receive a tailored quotation. With next-day shipping available for most wavelengths and discounts on volume orders of 10 pieces or more, Tower Optical ensures that quality is not just a promise but a guarantee. For inquiries or custom orders, please contact sales@toweroptical.com or call 1-561-740-2525.
Beamsplitter Cube - BSPN1-20 488nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 488 – 488 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 20 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring durability and superior optical performance.
- Wide Dimension Range: Available in sizes ranging from 3.2mm to 50.8mm, catering to various application needs.
- Precision Engineering: Dimensional tolerance of ±0.2mm and angular tolerance of ±3 arc minutes for accurate results.
- Excellent Surface Quality: Surface quality rated at 60/40 scratch and dig, providing clear and precise optical performance.
- Minimal Beam Deviation: Beam deviation of only 3 arc minutes, ensuring precise beam alignment.
- Superior Extinction Ratio: Extinction ratio greater than 100:1 for optimal polarization separation.
- High Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Broad Wavelength Range: Operates effectively across wavelengths from 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces, enhancing performance.
- Customizable Options: Custom versions available to meet specific requirements; send drawings or specifications for a quotation.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery for urgent needs.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more, providing cost savings for bulk purchases.
Applications
- Optical Systems: Ideal for use in optical systems requiring polarization separation.
- Laser Applications: Suitable for laser applications where specific wavelength separation is needed.
- Imaging Systems: Used in imaging systems to enhance contrast by separating polarized light.
- Telecommunications: Applicable in fiber optic telecommunications for signal routing and processing.
- Scientific Research: Utilized in laboratories for experiments involving polarized light.
- Industrial Automation: Employed in automated systems for quality control and inspection using polarized light.
- Medical Devices: Integrated into medical imaging devices for improved image clarity and contrast.
- Photography: Used in photographic equipment to manage light polarization for better image quality.
Frequently Asked Questions
The Beamsplitter Cube - BSPN1-20 488nm is a polarization beamsplitter cube based upon using two complementary prisms.
The output beam that is parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized.
The wavelength range of the Beamsplitter Cube - BSPN1-20 488nm is 226nm to 2300nm.
Yes, custom versions of this beam splitter are available from the manufacturer.
You can order the Beamsplitter Cube - BSPN1-20 488nm by selecting the appropriate size and wavelength range on the pricing and ordering info table and adding it to your cart.
