Description

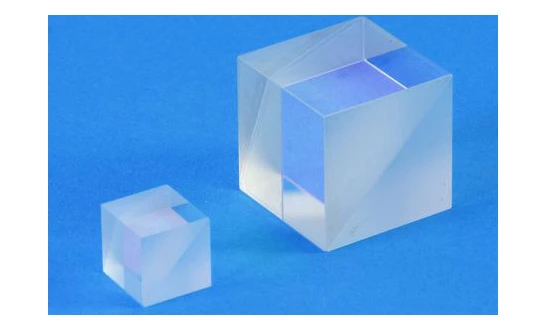

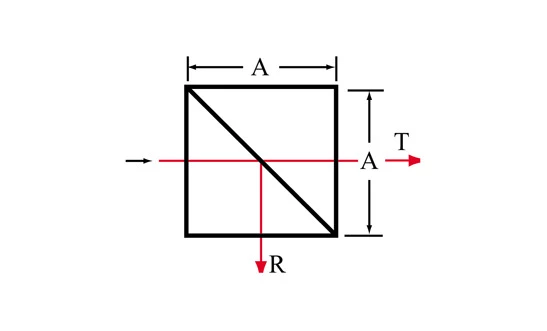

Polarization Beamsplitter Cubes are an essential component for precision optical applications, offering unparalleled performance in separating polarized light. These beamsplitters are expertly crafted using two complementary prisms, ensuring that the output beam parallel to the input beam is p-polarized, while the orthogonal output beam is s-polarized. This design provides a high degree of polarization separation, making them ideal for a variety of scientific and industrial applications.
Constructed from high-quality BK-7 grade A optical glass, these beamsplitter cubes are available in a range of dimensions from 3.2mm to 50.8mm, with precise dimensional tolerances of ±0.2mm. The angular tolerance of ±3 arc minutes ensures accurate beam alignment, while the surface quality of 60/40 guarantees minimal optical distortion. With a beam deviation of just 3 arc minutes and an extinction ratio greater than 100:1, these cubes deliver exceptional optical performance.
The polarization beamsplitter coating is applied to the hypotenuse, enhancing the principal transmittance (Tp>95% and Ts<1%) and reflectance (Rs>99% and Rp<5%) across a broad wavelength range of 226nm to 2300nm. Additionally, an anti-reflective coating with R<0.25% per face for all four faces minimizes unwanted reflections, ensuring maximum efficiency and clarity in optical systems.
For those seeking tailored solutions, custom versions of these beamsplitters are available. Simply provide your drawings or specifications, and a quotation will be prepared to meet your specific needs. Whether for research, development, or production, these polarization beamsplitter cubes offer a reliable and high-performance solution for your optical requirements.
Beamsplitter Cube - BSPB1-10 450-680nm
Specifications |
|
|---|---|
| Material: | N-BK7 |
| Wavelength Range: | 450 – 680 nm |
| Max Beam Deviation: | 3 arcmin |
| Size (Linear Dimension): | 10 mm |
| Surface Quality/Scratch & Dig: | 60/40 |
| Extinction Ratio: | 100:1 |
| Principal Transmittance: | Tp>95% and Ts<1% |
| Principal Reflectance: | Rs>99% and Rp<5% |
Features
- High-Quality Material: Made from BK-7 grade A optical glass, ensuring superior performance and durability.
- Precision Dimensions: Available in a range of sizes from 3.2mm to 50.8mm with a dimensional tolerance of ±0.2mm.
- Accurate Angular Tolerance: Maintains an angular tolerance of ±3 arc minutes for precise optical applications.
- Excellent Surface Quality: Features a surface quality of 60/40 scratch and dig, ensuring minimal imperfections.
- Minimal Beam Deviation: Beam deviation is kept at 3 arc minutes for accurate beam splitting.
- High Extinction Ratio: Offers an extinction ratio of >100:1 for effective polarization separation.
- Superior Transmittance and Reflectance: Principal transmittance of Tp>95% and Ts<1%, with principal reflectance of Rs>99% and Rp<5%.
- Wide Wavelength Range: Operates effectively across a wavelength range of 226nm to 2300nm.
- Advanced Coatings: Polarization beamsplitter coating on the hypotenuse and AR coating with R<0.25% per face for 4 faces.
- Customizable Options: Custom versions available to meet specific requirements; contact us for a quotation.
- Next Day Shipping: Available for most wavelengths, ensuring quick delivery.
- Volume Discounts: Discounts offered on volume orders of 10 pieces or more.
Applications
- Optical Systems: Use in optical systems requiring precise polarization separation.
- Laser Applications: Ideal for laser applications where beam quality and polarization control are critical.
- Telecommunications: Suitable for telecommunications systems that require specific wavelength separation.
- Scientific Research: Utilized in scientific research for experiments involving polarized light.
- Imaging Systems: Enhances imaging systems by providing clear polarization separation.
- Industrial Applications: Used in industrial settings for quality control and material analysis.
- Custom Optical Solutions: Can be customized for specific optical solutions and requirements.
