Description

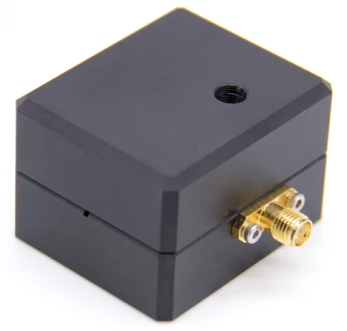

Phase modulator is a modulation device developed based on electro-optic effect and high frequency resonator theory, which can phase modulate polarized light. It is often used in precision optics systems such as laser interference, optical frequency combs, laser frequency stabilization, atomic cooling, and quantum state controlling.

When an electrical signal of a specific frequency is injected into the high-frequency resonant cavity, the electromagnetic wave will be continuously reflected in the cavity to form a standing wave, resulting in electromagnetic resonance.

The electro-optic crystal produces a birefringence effect under the action of electromagnetic resonance, which eventually leads to the phase change of the light. Our modulators use a variety of electro-optical crystals such as MLN, DKDP, KTP, LT, etc. The wavelength covers 350-3000 nm, the frequency covers 1-4 GHz, and the modulation depth is up to 2 π rad.

Specifications

Aperture Diameter: 2 mm
Peak Optical Power Density: 1 MW/cm^2
Wavelength Range: 355 – 780 nm
Transmission: 97 %
Extinction Ratio: Not Specified
RF Frequency: 1.75GHz
3db Bandwidth: <10MHz
Wavefront Distortion: < λ/6 @ 633nm
Max Modulation Amplitude: < 7.2rad@532nm
Connector: SMA-F
Operation Wavelength: 532nm
Dimension: 40mm×40mm×40mm
Interaction Material: MLN

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Applications

  • Laser frequency stabilization
  • Laser interference
  • Optical frequency comb
  • Atomic cooling
  • Quantum state control

Frequently Asked Questions

What is a phase modulator?
A phase modulator is a modulation device that can phase modulate polarized light based on electro-optic effect and high frequency resonator theory.
What are the applications of a phase modulator?
A phase modulator is often used in precision optics systems such as laser interference, optical frequency combs, laser frequency stabilization, atomic cooling, and quantum state controlling.
What is the operating wavelength range of the phase modulator?
The operating wavelength range of the phase modulator is 350-3000 nm.
What is the modulation depth of the phase modulator?
The modulation depth of the phase modulator is up to 2 π rad.
What is the recommended beam diameter for the phase modulator?
The beam diameter is recommended to be less than 70% of the clear aperture.

Got more questions? Use the inquiry form to ask the supplier directly.
