EOM Solutions for High-Speed Optical Modulation

Did You Know?

The electro-optic effect is a result of the change in refractive index of a material when it is placed in DC or low-frequency electric field. Nonlinear optical materials with an incident static or low frequency electromagnetic wave will undergo modulation of refractive index and as such are often used as electro-optic modulators (EOM). In general, the modulation in refractive index in EOM may be induced on the amplitude, phase, frequency or polarization of the input beam. The most common EOM consists of a crystal whose refractive index depends on the strength of applied electric field. This implies if it is exposed to electric field, light will travel slower through it than in air. The phase of the light leaving the crystal can be controlled by changing the incident electric field as the phase delay is directly proportional to the time it takes for light to pass through the crystal.

Related Resources

Frequently Asked Questions

An electro-optic modulator (EOM) is a device that uses the electro-optic effect in a nonlinear crystal or waveguide (e.g., LiNbO₃, KDP, RTP) to change the phase, amplitude, or polarization of an optical beam under an applied electric field. An RF or DC voltage alters the refractive index tensor of the material, which in turn modifies the optical path length or polarization state, enabling high-speed modulation of a continuous-wave or pulsed laser without moving parts.

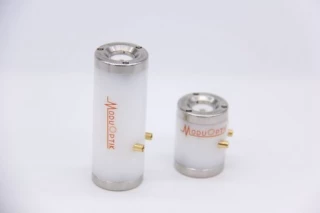

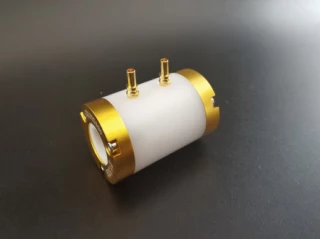

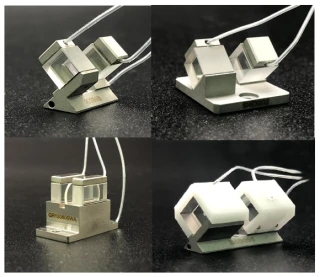

What Is an EOM in Optical Systems?

An EOM (electro-optic modulator) is a solid-state device that uses the electro-optic effect to control the phase, amplitude, frequency, or polarization of a laser beam. Typical EOM devices are built from nonlinear crystals such as LiNbO3, KDP, RTP, or BBO, integrated in an optical housing with RF or microwave electrodes. In many electro-optic systems, the EOM is placed in free-space or fiber-coupled beam paths to impose high-speed modulation without moving parts.

Typical EOM Specifications and Parameters

When evaluating an EOM on FindLight, engineers typically compare:

  • Operating wavelength: UV to mid-IR ranges (e.g., 355 nm, 532 nm, 1064 nm, 1550 nm) matched to the laser source.
  • Modulation type: phase, intensity (amplitude), polarization rotation, or frequency shifting.
  • Half-wave voltage (Vπ): drive voltage required for a π phase shift, influencing driver requirements and system efficiency.

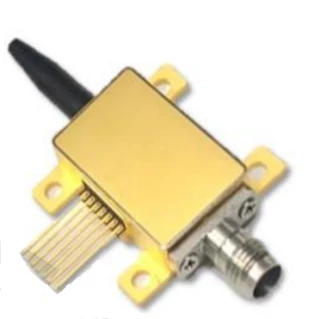

  • Bandwidth: RF or microwave bandwidth from a few MHz up to tens of GHz for telecom and microwave photonics EOM modules.
  • Aperture and beam size: clear aperture, damage threshold, and wavefront quality for high-power laser beams.
  • Insertion loss and extinction ratio: dB loss through the EOM and achievable on/off contrast for amplitude modulation.
  • Crystal material and orientation: affecting temperature sensitivity, photorefractive damage, and acceptance angle.

Common Use Cases for EOM Devices

EOM components are used in scientific and industrial systems for pulse picking, Q-switching, high-speed amplitude modulation, phase encoding in quantum optics, frequency comb control, laser stabilization, and coherent communications. Telecom-grade EOM units enable QPSK and higher-order modulation formats, while laboratory EOM assemblies support cavity locking and time-resolved spectroscopy.

Buyer Guidance on FindLight

On FindLight, you can review multiple EOM products in one place, compare key specifications, and identify compatible drivers or RF amplifiers. Filter EOM offerings by wavelength range, modulation bandwidth, crystal material, and mechanical format (free-space vs. fiber-coupled) to narrow options. When a suitable EOM is identified, you can request a quote or technical datasheet directly from the supplier without registration. Use your target laser parameters, required modulation depth, and system bandwidth as primary selection criteria to ensure the chosen EOM integrates cleanly into your electro-optic architecture.
