Description
The LiNbO3 intensity modulator is widely used in high-speed optical communication system, laser sensing and ROF systems because of well electro-optic performance. The R-AM series based on MZ push-pull structure and X-cut design, has stable physical and chemical characteristics, which can be applied both in laboratory experiments and industrial systems.
- Wavelength：850nm/1064nm/1310nm/1550nmn
- Bandwidth ：10GHz/20GHz/40GHz
- Other: High ER Intensity Modulator/Cascading MZ Modulator/Dual-parallel MZ Modulator
Beijing Rofea Optoelectronics Co., Ltd. offers a product line of commercial Electro-optic modulators, Phase modulators, Intensity modulator, Photodetector, Laser light sources, DFB lasers, Optical amplifiers, EDFA, SLD laser, QPSK modulation, Pulse laser, Light detector, Balanced photodetector, APD photodetector, Laser driver, Fiber optic amplifier, Optical power meter, Broadband laser, Tunable laser, Optical detector, Laser diode driver, Fiber amplifier. We also provide many particular modulators for customization, such as 1*4 array phase modulators, ultra-low Vpi, and ultra-high extinction ratio modulators, primarily used in universities and institutes.

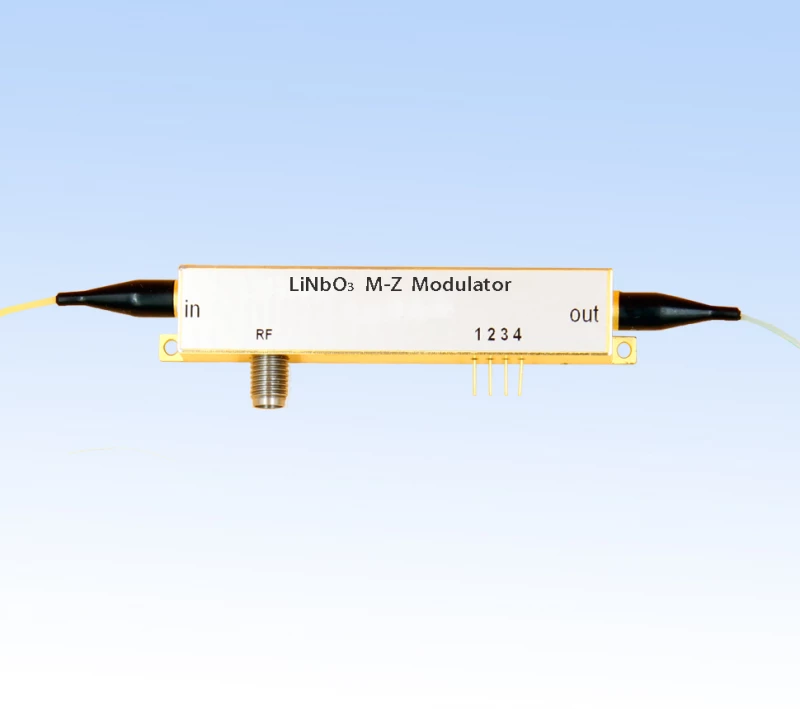

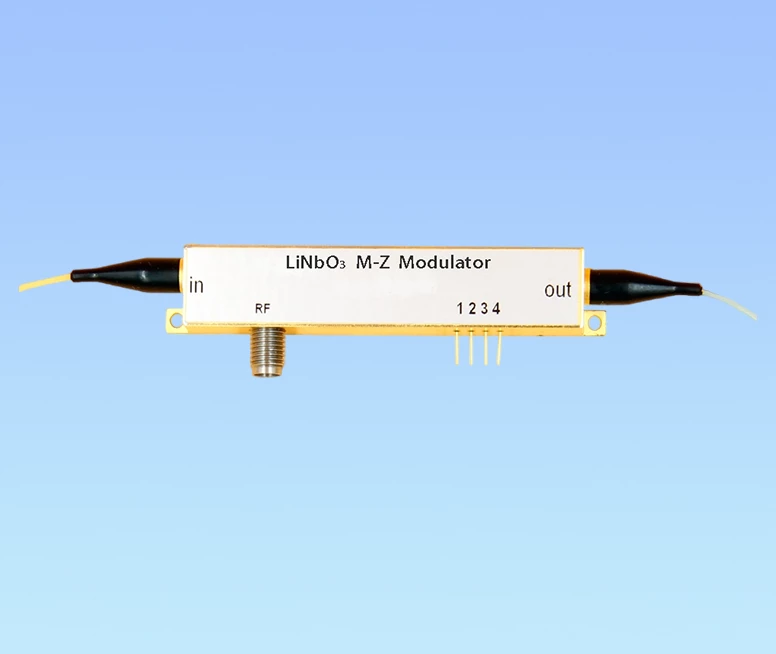

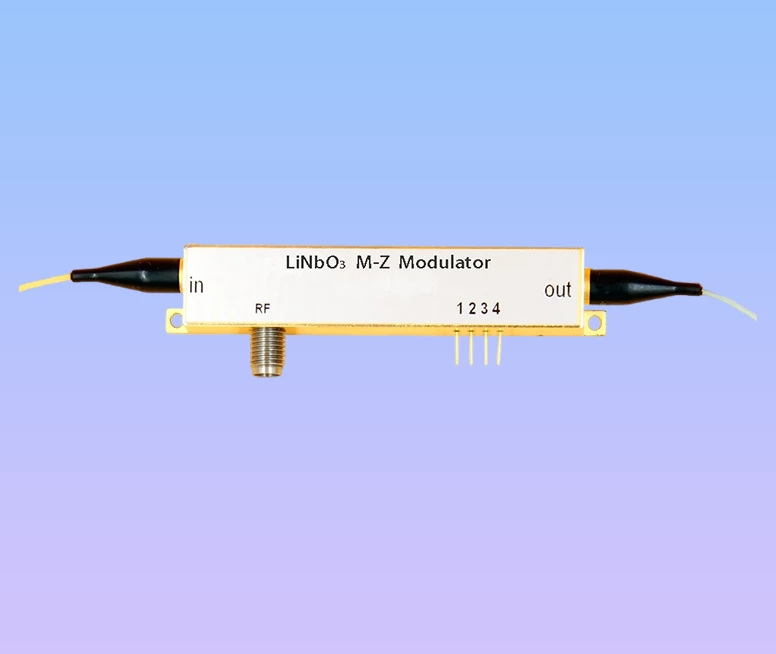

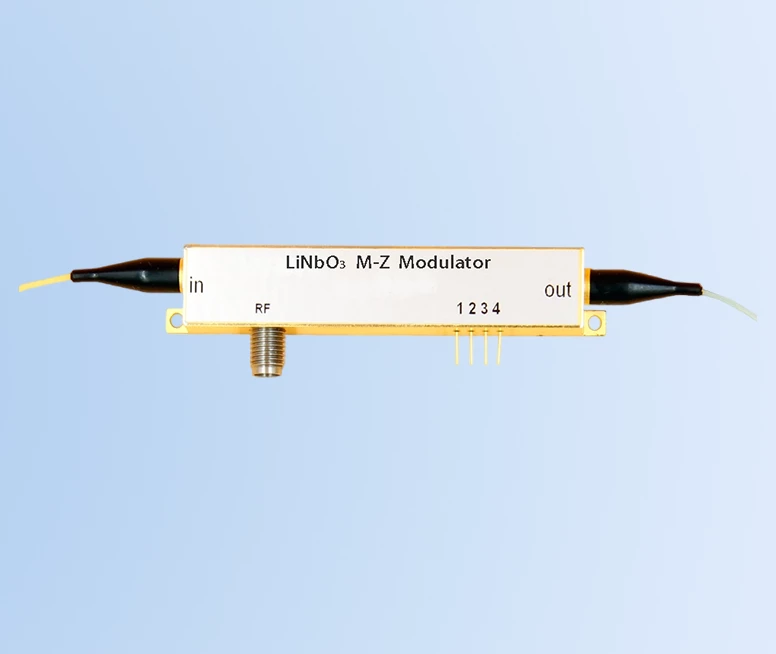

Rof Eo Modulator mach zehnder modulator 850nm-1550nm | LiNbO3 Intensity Modulator
Specifications
| Wavelength Range: | 850 – 1550 nm |
|---|---|
| Extinction Ratio: | Not Specified |
| Operating Wavelength: | 830 - 870 nm |
| Insertion Loss: | 4.5 - 5 dB |
| Optical Return Loss: | -45 dB |
| Switch Extinction Ratio @ DC: | 20 dB |
| Dynamic Extinction Ratio: | 13 dB |
| Operating Bandwidth (-3dB): | 10 - 12 GHz |
| Half-wave Voltage Vpi RF @1KHz: | 2.5 - 3 V |
| Bias @1KHz: | 3 - 4 V |
| Electrical Return Loss: | -12 to -10 dB |
| Input Impedance RF: | 50 Ω |
| Input Impedance Bias: | 1M Ω |
| Input Optical Power @850nm: | 10 dBm |
| Input RF Power: | 28 dBm |
| Bias Voltage: | -15 to 15 V |
| Operating Temperature: | -10 to 60 ℃ |
| Storage Temperature: | -40 to 85 ℃ |
| Humidity: | 5 to 90 % |
Download Data Sheet
Features
- Low insertion loss
- Low half-voltage
- High stability
Applications
- ROF systems
- Quantum key distribution
- Laser sensing systems
- Side-band modulation
Frequently Asked Questions
What is the primary use of the LiNbO3 intensity modulator?
What are the key features of the AM Series Intensity Modulator?
What applications can the AM Series Intensity Modulator be used for?
What are the available operating wavelengths for the AM Series Intensity Modulator?
What is the typical insertion loss for the modulator at different wavelengths?
What is the maximum input optical power for the modulator at 850nm?
What are the environmental operating conditions for the modulator?
