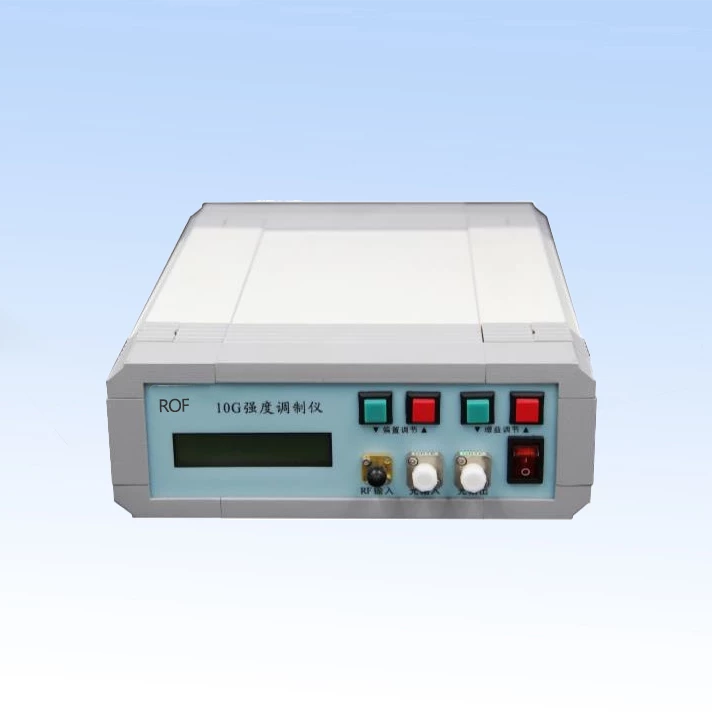

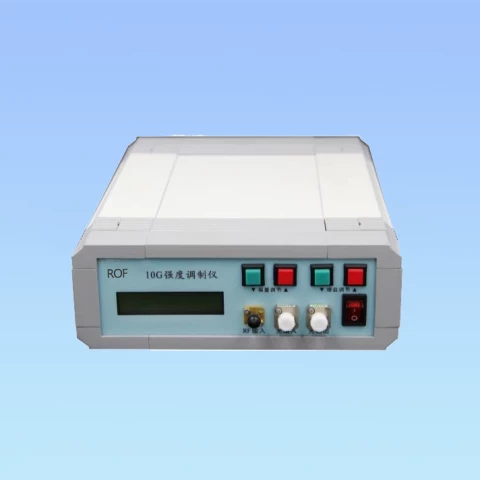

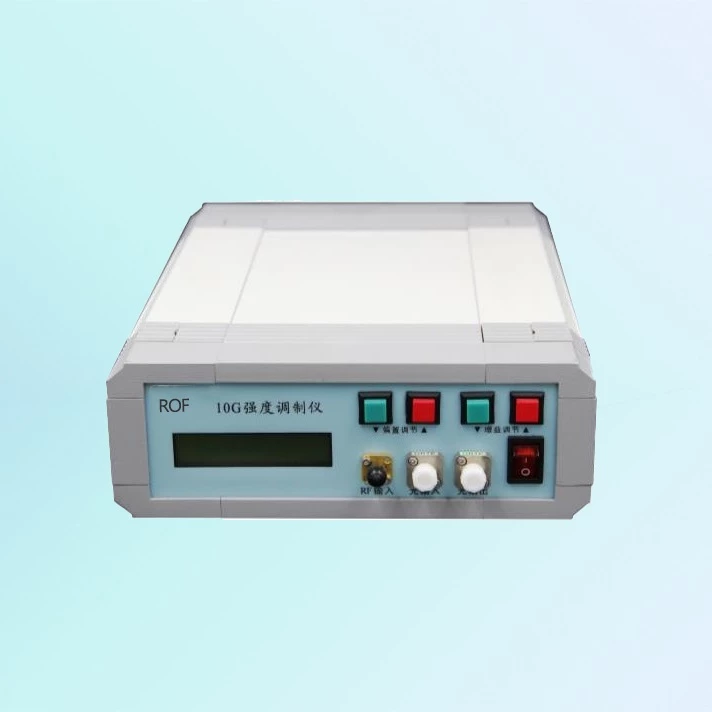

ROF Optical Photonics Electro-Optical Intensity Modulator (MZ Intensity Modulator)

Visit the Beijing Rofea Optoelectronics Co,. Ltd. Store

Specifications

Wavelength Range: 1550 – 1550 nm
Extinction Ratio: Not Specified
Operating Wavelength: 1525-1565 nm
Insertion Loss: 4-5 dB
Light Return Loss: -45 dB
Data Processing Rate: 12.25-43 Gbps
-3 DB Bandwidth: 10-28 GHz
Low Cutoff Frequency: 100 KHz
Half-wave Voltage @ DC: 6-7 V
Half-wave Voltage @ RF: 5-6 V
Electric Return Loss: -12 to -10 dB
RF Input Impedance: 50 Ω
Input Signal Voltage Range: 500-1000 mV
Gain Control Range: 0-25 dB
Adjustment Accuracy: 1 dB
Bias Voltage Adjustment Range: -7 to 7 V
Optical Output Power: 10-16 dBm
3 DB Spectral Width: 2-10 MHz
Side Mode Suppression Ratio: 30-45 dB
Relative Noise Intensity: -160 to -150 dB/Hz
Power Stability (5 Min): ±0.005 dB
Power Stability (8 H): ±0.01 dB
Output Isolation: 30-35 dB
Operating Temperature: -5 to 60 ºC
Storage Temperature: -40 to 85 ºC
Humidity: 10-85 %
Input Optical Power: 20 dBm
Amplitude Of Input Electrical Signal: 1 V
Power Supply: AC220 V
Document icon Download Data Sheet Download icon

Features

  • Low insertion loss
  • High operating bandwidth
  • Adjustable gain and offset operating point
  • AC 220V
  • Easy to use, optional light source

Applications

  • High speed external modulation system
  • Teaching and experimental demonstration system
  • Optical signal generator
  • Optical RZ, NRZ system
