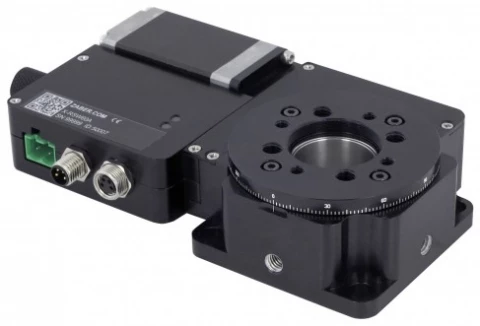

X-RSW Series Motorized Rotary Stages with Built-in Controllers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
The X-RSW Series by Zaber represents a breakthrough in motorized rotary stage technology, designed for those who demand precision and reliability in angular positioning applications. These innovative devices feature built-in controllers, making them stand-alone units that require only a standard 24-48 V power supply for operation. This ease of use ensures that even those new to motorized stages can integrate them seamlessly into their projects.
Engineered for versatility, the X-RSW Series includes an indexed knob that allows for smooth manual control. Users can effortlessly switch between velocity and position modes, offering flexibility in operation without the need for a computer interface. The ability to daisy-chain with other Zaber products further enhances its functionality, allowing multiple units to share a single power supply, thus reducing clutter and simplifying setup.
Connectivity is a breeze with the X-RSW Series, thanks to its USB 2.0 or RS-232 port compatibility. The inclusion of convenient locking, 4-pin, M8 connectors ensures a secure and easy connection between products. This feature is particularly beneficial for complex setups, where stability and reliability are paramount. With a maximum torque rating of 2.25 N-m and a centered load capacity of 20 kg, the X-RSW Series is built to handle demanding tasks with precision and ease.
Overall, the X-RSW Series stands out as a robust, user-friendly solution for those seeking high-performance motorized rotary stages. Its combination of advanced features, including manual control options and seamless connectivity, makes it an ideal choice for both novice and experienced users looking to enhance their motion control capabilities.
X-RSW Series Motorized Rotary Stages with Built-in Controllers
Specifications |
|
|---|---|
| Vacuum Compatible: | No |
| Built-in Controller: | Yes, Optional |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.14 degrees |
| Repeatability: | <0.01 degrees |
| Backlash: | 0.04 degrees |
| Stage Diameter: | 60 mm |
| Maximum Speed: | 450 degrees/s |
| Maximum Torque: | 225 N-cm |
| Number Of Lens Holders: | 2 |
Features
- Worm Gear Driven: Enables continuous rotation for seamless operation.
- Versatile Lens Holders: Includes two lens holders for use as a polarizer mount.
- High Performance: Achieves speeds up to 75 rpm and torque up to 2.25 N-m.
- Robust Load Capacity: Supports up to 20 kg of centered load.
- Integrated Controller: Features a built-in controller for streamlined setup.
- Daisy-Chain Capability: Easily integrates with other Zaber products for shared power supply.
- Precision Control: Offers an accuracy of 0.14 degrees and repeatability of < 0.02 degrees.
- Manual and Automated Operation: Indexed knob allows for manual control; compatible with USB 2.0 or RS-232 for computer integration.
- Secure Connections: Equipped with locking 4-pin M8 connectors for easy and secure product connections.
- Wide Compatibility: Supports Zaber ASCII and Zaber Binary communication protocols.
- Environmentally Compliant: RoHS and CE compliant, ensuring adherence to environmental standards.
- Temperature Range: Operates efficiently between 0-50 degrees C.
- Compact Design: Weighs only 0.66 kg, making it easy to handle and install.
- Multiple Models: Available in different models (X-RSW60A and X-RSW60C) to suit various application needs.
Applications
- Optical Component Positioning: Precise rotation for lenses, polarizers, and filters
- Polarization Control: Integrated lens holders enable use as a polarizer mount
- Lightweight Automation: Suitable for robotic arms and automated assembly with moderate loads
- Research & Development: Angular positioning for experiments and test equipment
- General Laboratory Use: Precise, repeatable rotary motion for various setups
Frequently Asked Questions
Yes, the X-RSW Series product has an indexed knob that provides smooth manual control at variable speeds in both directions for versatile operation even without a computer.
The X-RSW Series product connects to the USB 2.0 or RS-232 port of any computer and can be chained with several units per chain.
The X-RSW Series products are motorized rotary stage devices with built-in controllers.
The X-RSW Series product has a maximum centered load capacity of 20 kg.
The X-RSW Series products are rated for 2.25 N-m of torque.
