Description
The Piezoelectric Motion - Rotator Series offers a range of compact rotary stages with closed-loop control. These stages are designed for low-temperature applications and are compatible with ultra-high vacuum environments.

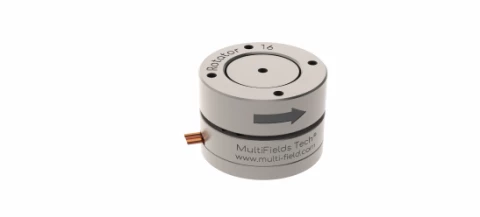

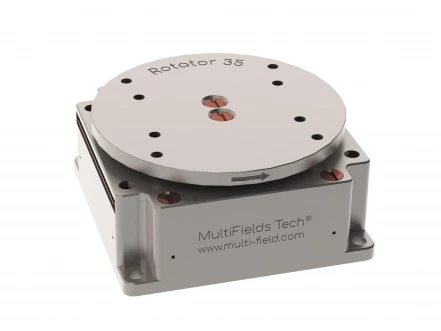

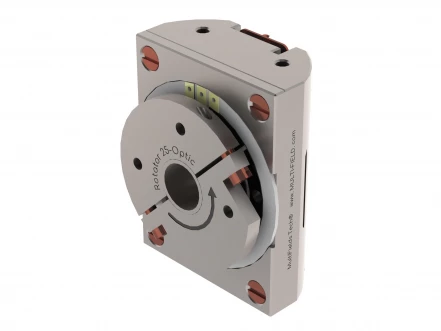

The series includes the Rotator16, Rotator25, Rotator25-optic, and Rotator35, each defined by its respective size. With their non-magnetic construction, high torque, and endless 360° travel range, these rotator stages provide precise and reliable motion control for various scientific and industrial applications.
Low Temperature Piezoelectric Motion - Rotator Series
Specifications
| Vacuum Compatible: | Yes |
|---|---|
| Built-in Controller: | No |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.05 degrees |
| Repeatability: | Not Specified |
| Backlash: | Not Specified |
| Encoder Resolution: | 0.01 CPR |
| Stage Diameter: | 16 mm |
| Weight: | 10 g |
| Main Body: | Default: Pure Ti ULT: BeCu |
| Pins: | Drive - 2 pins /Sensor - 3 pins |
| Drive Voltage Max.: | 200 V |
| Sensor Resolution: | 50 m° |
| Sensor Range: | 10 m° |
| Encoder: | Resistive Sensor |
| Max. Velocity @300 K: | 10 °/s |
| Dynamic Torque: | 0.4-2.5 Ncm |
| Max. Load: | 500 g |
| Work Environment: | 14-400 K |
Download Data Sheet
Features
- Compact design for space-constrained applications
- Ultra-high vacuum (UHV) and very low-temperature (ULT) compatible
- Non-magnetic material composition (pure Ti and BeCu)
- High load capacity and dynamic torque
- Endless 360° travel range
- Closed-loop control with high-resolution position sensing
Applications
- Cryogenic systems
- Optical and precision alignment
- Microscopy and imaging
- Semiconductor manufacturing
- Nanotechnology research
- Material science experiments
Frequently Asked Questions
What is the material used for the Low Temperature Piezoelectric Motion Rotator stages?
The material used for the rotator stages is non-magnetic pure Ti and BeCu.
What is the travel range of the rotator stages?
The travel range of the rotator stages is 360° endless.
What are the applications of the rotator stages?
The rotator stages are ideal for nano-positioning applications.
What is the maximum load capacity of the rotator stages?
The maximum load capacity of the rotator stages is 100 g for the 16mm series and 250 g for the 25mm series.
What is the resolution of the position sensing for the rotator stages?
The position sensing of the rotator stages has a resolution of up to 10 m°.
