Rotator25.HV: Compact Low-Temperature Piezoelectric Rotary Stage with 360° Endless Rotation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Description

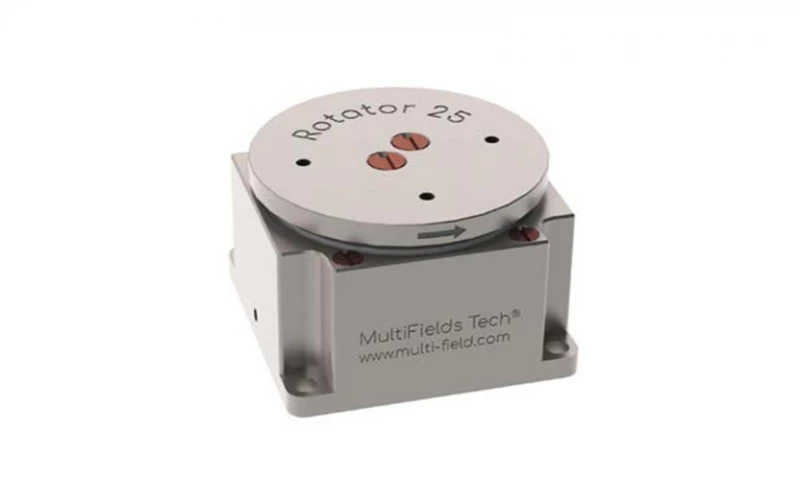

The Rotator25 from MultiFields' 25mm Series is a high-performance closed-loop piezoelectric rotary stage engineered for ultra-compact integration in extreme environments. With a minimal footprint of just 25 × 25 × 14.5 mm and a total weight of 24 g, it is designed for precision positioning tasks in cutting-edge scientific research and cryogenic setups.
Crafted from pure titanium and BeCu, the Rotator25 is non-magnetic and compatible with magnetic fields up to 18 Tesla, enabling stable operation in high-field environments. Its construction also supports ultra-high vacuum (UHV) levels to 2E-11 mbar and temperatures as low as 30 mK, making it ideal for He3 or dilution refrigerator systems.
With a 360° endless rotation, dynamic torque up to 1.5 N·cm, and position sensing resolution down to 10 m°, the Rotator25 ensures precise control with exceptional repeatability (~50 m°). Optional configurations such as .HV, .ULT, .UHV, and .ULT.UHV versions allow easy adaptation to specialized experimental requirements.
Rotator25.HV: Compact Low-Temperature Piezoelectric Rotary Stage with 360° Endless Rotation
Specifications |
|
|---|---|
| Vacuum Compatible: | Yes |
| Built-in Controller: | Yes |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.05 degrees |
| Repeatability: | <0.05 degrees |
| Backlash: | Not Specified |
| Encoder Resolution: | 320 CPR |
| Stage Diameter: | 25 mm |
| Max. Load: | 250 g |
| Dynamic Torque: | 1.5 Ncm |
| Position Encoder: | Resistive Sensor |
| Sensor Resolution: | 10 m° |
| Footprint × Height: | 25 × 25 × 14.5 mm |
| Weight: | 24 g |
| Max Velocity @ 300 K: | ~3 °/s |
| Drive Voltage Max.: | 200 V |
| Dynamic Torque: | 1.5 N·cm |
| Position Encoder Type: | Resistive sensor |
| Materials (Main Body): | Pure Ti, BeCu |
| Operating Temperature: | 1.4-400 K |
| Vacuum Compatibility: | Up to 2E-11 (UHV) mbar |
| Magnetic Field Compatibility: | Up to 18 Tesla |
Features
- Ultra-Compact Design: Footprint of 25 × 25 mm, height 14.5 mm, and weight only 24 g
- Extreme Environment Compatibility: Operates in 30 mK to 400 K and up to 18 T magnetic field
- Ultra-High Vacuum Ready: Compatible with vacuum levels as low as 2E-11 mbar
- Non-Magnetic Construction: Made from pure titanium and BeCu for high magnetic field tolerance
- Closed-Loop Precision Control: Includes resistive encoder with 10 m° resolution
- Continuous 360° Travel: Allows endless rotation with dynamic torque up to 1.5 N·cm
- Multiple Optional Versions: .HV (default), .ULT, .UHV, .ULT.UHV for tailored usage
Applications
- Cryogenic Research: Ideal for use in He3 or dilution refrigeration systems
- Quantum Computing & Physics: Stable operation in high magnetic fields and UHV conditions
- Vacuum-Compatible Instrumentation: Supports ultra-clean environments with minimal outgassing
- Nanopositioning Systems: High resolution and repeatability for delicate rotary adjustments
- Magnetic Field Experiments: Compatible with up to 18 T, making it perfect for magnetic resonance studies
Frequently Asked Questions
The Rotator25.HV has a compact design measuring 25x25x14.5 mm.
Yes, the Rotator25.HV is designed to operate in ultra-high vacuum conditions as extreme as 2 E-11 mbar.
Absolutely! The device is crafted from non-magnetic pure Ti & BeCu, ensuring compatibility with magnetic fields up to 18 Tesla.
The Rotator25.HV can efficiently handle high loads up to 250 g.
Yes, the rotary stage provides a 360° endless rotation, ideal for a range of applications.
The device boasts an advanced closed-loop control system paired with position sensing, ensuring a resolution of up to 10 m° for precise operations.
Yes, in addition to the default .HV version, there are .ULT and .UHV versions tailored for different environments and applications. Please contact us for details.
