Description
The TBRK Series Motorized Rotation Stage is a high-precision rotary positioning platform designed for demanding applications in automated alignment, inspection, and multi-axis motion systems. Available in two models—TBRK100 (Φ102 mm) and TBRK200 (Φ196 mm)—this series offers smooth, accurate 360° rotation using a cross-roller guide mechanism and worm gear transmission (180:1 ratio) for enhanced rigidity and repeatability.
Both stages support stepper or AC servo motors with encoder feedback for closed-loop or open-loop operation. They offer sub-millidegree resolution (up to 0.0005°) and repeatability of ±0.003°, making them ideal for high-precision tasks. Each unit includes either a built-in zero sensor or an optional external limit sensor for angular positioning control.
With high load capacities (up to 40 kg horizontally), robust construction, and compatibility with 2D/3D multi-axis systems, the TBRK series excels in optical metrology, semiconductor processing, photonics, and more. Choose the TBRK stage that fits your space, payload, and precision requirements.

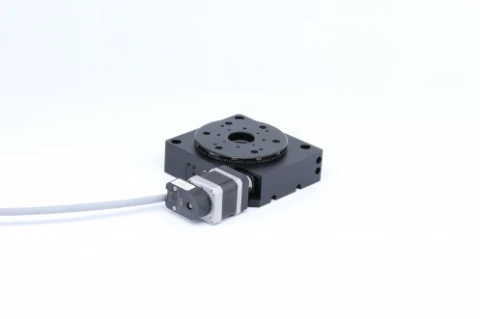

TBRK200 Motorized Rotation Stage
Specifications
| Vacuum Compatible: | Yes |
|---|---|
| Built-in Controller: | No |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.003 degrees |
| Repeatability: | <0.01 degrees |
| Backlash: | 0.003 degrees |
| Encoder Resolution: | 1.8 CPR |
| Stage Diameter: | 102 mm |
| Vertical Load: | 5 kg |
| Load In Horizontal: | 20 kg |
| Motor Torque: | 0.46 Nm |
| Operating Current: | 1.5 A |
| Motor And Angle (°): | two phase 42 stepper motor, 1.8 |
| End Jump (axial Runout): | ≤36 µm |
| Static Parallelism: | ≤0.08 mm |
| Max Speed: | 20 °/s |
| Semi-closed Loop Resolution (°): | 0.0005 |
| Weight: | 2.3 kg |
| Guid Mechanism: | Cross Roller |
| Worm Gear Ratio: | 180:1 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High Precision Rotation: Achieves angular resolution of 0.0005° in semi-closed loop mode
- Full 360° Travel: Continuous rotation supported with smooth motion and low backlash (≤0.003°)
- Multiple Motor Options: Available with stepper motors or AC servo motors (100W/200W)
- Robust Load Handling: Supports up to 40 kg in horizontal load and 10 kg vertical/inverted
- Cross-Roller Guide: Ensures superior stability, repeatability, and low end runout
- Encoder Feedback: High-accuracy position sensing for repeatable automation setups
- Customizable Sensors: Built-in zero or optional external angular limit sensors
Applications
- Precision Optomechanics: Rotational alignment of lenses, mirrors, or laser sources
- Automated Metrology Systems: Integration into 2D/3D positioning platforms for precision testing
- Semiconductor Equipment: Accurate wafer and component positioning under high load
- Photonics R&D: Ideal for angular scanning and component calibration in optical labs
- Robotic & Inspection Platforms: Used in assembly lines for rotational part adjustment
Frequently Asked Questions
What is the table diameter of the TBRK series Motorized Rotation Stage?
What types of motors are available for the TBRK series Motorized Rotation Stage?
What is the sensor position options for the TBRK series Motorized Rotation Stage?
What is the weight of the TBRK100 and TBRK200 models?
What is the resolution of the TBRK series Motorized Rotation Stage?
