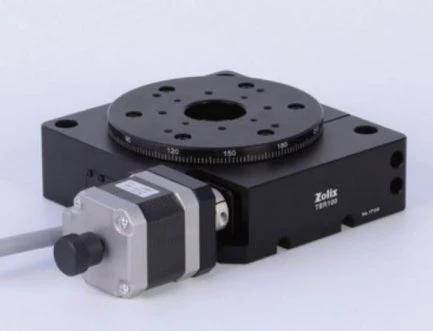

Thumbnail of TBR and TBRF Series Motorized Rotation Stages photo 1

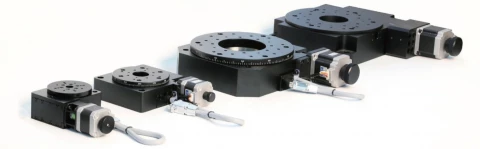

Thumbnail of TBR and TBRF Series Motorized Rotation Stages photo 2
Thumbnail of TBR and TBRF Series Motorized Rotation Stages photo 3

Description

The TBR and TBRF series motorized rotation stages from Zolix are designed to meet the strict requirements of high precision, high rigidity, and high repetition rate operations. These stages are suitable for various industrial automation applications. The TBR series features worm gears made of wear-resistant tin bronze, stainless steel worms treated with high-frequency quench techniques, and a fine cross-roller collar guiding mechanism.

These stages can be operated horizontally, vertically, or inverted, providing versatility in complex application situations. The TBRF series, on the other hand, offers higher rotation speeds and increased rigidity with relatively lower meshing accuracy. Both series can be integrated with other equipment or used in automatic production lines.

TBR and TBRF Series Motorized Rotation Stages

Visit the Zolix Instruments CO.,LTD Store

Specifications

Vacuum Compatible: No
Built-in Controller: No
Range: 360 degrees
Unidirectional Accuracy: 0.1 degrees
Repeatability: <0.005 degrees
Backlash: 0.003 degrees
Encoder Resolution: Not Specified
Stage Diameter: 59 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wear-resistant tin bronze worm gears for excellent wear resistance
  • Stainless steel worms with high hardness and rigidity
  • Fine cross-roller collar guiding mechanism for strength and durability
  • Gap-adjustment mechanism for smooth running and reduced backlash
  • Standard two-phase stepping motors (optional servo motors available)
  • Built-in origin-point sensor for easy operation

Applications

  • Industrial automation systems
  • Robotic assembly and manipulation
  • Precision measurement and inspection
  • Optics and photonics research
  • Semiconductor manufacturing
  • Laser processing and scanning

Frequently Asked Questions

How much is this High Precision Motorized Rotation Stage?
We have five different models in these series and price varies from model to model. Please refer to the ordering information to identify the model and please feel free to contact us with pricing or any other question.
What material is the body made of?
For the main body we use black anodic-oxidized hard aluminum alloy to ensure rigidity, thermal stability and stray light suppression for light sensitive environment.
What worm gears do you use in this motorized rotation stage?
In the worm gears of this High Precision Motorized Rotation Stage we use tin bronze which ensures unmatched wear-resistance and durability.
What options do you have in these series of motorized rotation stages?
We currently offer five different models of these rotation stages with different table dimensions and load capacities: TBR60L (59mm); TBR100 (102mm); TBR200 (196mm); TBRF60L (60mm); and TBRF75L (75mm). Please refer to the downloadable specification sheet for more details.
Can I mount this motorized rotation stage vertically?
Yes, these motorized rotation stages can be mounted horizontally, vertically and even flipped up to the ceiling of an instrument.
What are the main features of the High Precision Motorized Rotation Stage?
The main features of the High Precision Motorized Rotation Stage include excellent wear-resistance, high hardness and rigidity, and a fine cross-roller collar for high strength and durability.
Can the motorized rotation stage be operated in different orientations?
Yes, the motorized rotation stage can be operated horizontally, vertically, and even inverted.
What applications is the High Precision Motorized Rotation Stage suitable for?
The High Precision Motorized Rotation Stage is ideally suited for applications such as spectroscopic measurements, optical alignment, rapid prototyping, integration into machinery, and various OEM applications.
What is the difference between the TBR and TBRF series motorized rotation stages?
The TBR series employs worm gear/worm with high transmission ratio for higher meshing accuracy but slower rotation speed, while the TBRF series has higher rigidity and rotates faster with lower meshing accuracy.
Can the motorized rotation stage be integrated into other equipment or production lines?
Yes, the TBR and TBRF series motorized rotation stages are suitable for integration into other equipment or operation in automatic production lines within complex application situations.

Got more questions? Use the inquiry form to ask the supplier directly.
