Description

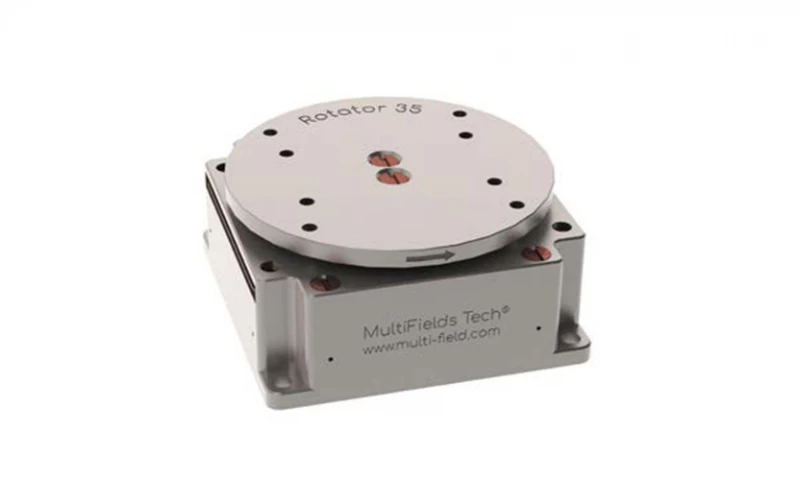

The Rotator 35 Low Temperature Piezo Rotator stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications.
The piezo-linear stage features a closed-loop control system and supports a built-in position sensing. It provides smooth and accurate movement. The Rotator 35 is available in different versions, including low temperature, vacuum options, catering to various application requirements.
Rotator-35: Low Temperature Piezo Rotary Stage
Specifications
| Vacuum Compatible: | Yes |
|---|---|
| Built-in Controller: | Yes |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.05 degrees |
| Repeatability: | <0.05 degrees |
| Backlash: | Not Specified |
| Encoder Resolution: | 320 CPR |
| Stage Diameter: | 35 mm |
| Weight: | 45 g |
| Max. Load: | 500 g |
| Dynamic Torque: | 2.5 Ncm |
| Position Encoder: | Resistive Sensor |
Download Data Sheet
Features
- Compact Dimensions: Measures only 35x35x16.5 mm.
- Optimized for Extremes: Compatible with ultra-high vacuum levels of 2 E-11 mbar and low temperatures down to 30 mK.
- Magnetic Field-Ready: Made of non-magnetic pure Ti & BeCu, ensuring compatibility with up to 18 Tesla magnetic fields.
- Strong Performance: Supports high loads up to 500 g and delivers a torque of 2.5 Ncm.
- Endless Motion: Features a continuous 360° travel range.
- Precision-Controlled Movement: Incorporates closed-loop control with position sensing, offering up to 10 m° resolution.
Applications
- Precision positioning
- Microscopy
- Optics and photonics research
- Semiconductor manufacturing
- Life science applications
- Metrology and inspection systems
- Work in a cryostat
Frequently Asked Questions
What is the size of the Rotator-35 piezoelectric rotator?
The Rotator-35 boasts a compact design with dimensions of 35x35x16.5 mm.
Can the Rotator-35 operate in ultra-high vacuum environments?
Yes, the Rotator-35 is compatible with ultra-high vacuum levels of 2 E-11 mbar.
What materials are used in Rotator-35 to make it non-magnetic?
The Rotator-35 is constructed from non-magnetic materials, specifically pure Ti & BeCu.
Is the Rotator-35 compatible with high magnetic fields?
Absolutely, the Rotator-35 can seamlessly operate in environments with magnetic fields up to 18 Tesla.
What is the load capacity and torque of the Rotator-35?
The Rotator-35 is designed to handle high loads up to 500 g and provides a torque of 2.5 Ncm.
Does the Rotator-35 offer continuous rotation?
Yes, the Rotator-35 features an endless 360° travel range.
How does the Rotator-35 ensure accurate positioning?
The Rotator-35 incorporates a closed-loop control system with position sensing, offering a resolution up to 10 m°.
Can the Rotator-35 work in very low temperatures?
Indeed, the Rotator-35 is designed to operate in extremely low temperatures, as low as 30 mK.
