Description
The Carrier.R200 Rotary Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications.
The piezo-linear stage features a closed-loop control system and supports resistance type position sensing. With its ultra-quiet motion and 20 kHz drive frequency, it provides smooth and accurate movement. The Carrier.R200 is available in different versions, including non-magnetic, high vacuum, and ultra-high vacuum options, catering to various application requirements.

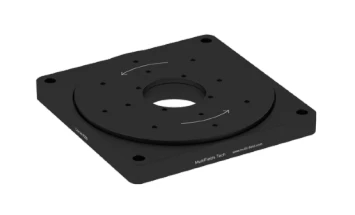

Carrier.R200 Piezoelectric Rotary Stage
Specifications
| Vacuum Compatible: | Yes |
|---|---|
| Built-in Controller: | Yes |
| Range: | 300 degrees |
| Unidirectional Accuracy: | 0.05 degrees |
| Repeatability: | <0.5 degrees |
| Backlash: | Not Specified |
| Encoder Resolution: | 1 CPR |
| Stage Diameter: | 200 mm |
| Weight: | 2 kg |
| Self Lock Torque: | 20 N*mm |
| Driving Torque: | 15 N*mm |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Rotation range 300°
- Close loop resolution: 1 urad
- Max Load 1kg
- High precision solution for optical microscopy
- Support Options, non-magnetic (.NM) & ultra- high vacuum (.UHV）
Applications
- Work in a glove box
- Precision positioning
- Microscopy
- Optics and photonics research
- Semiconductor manufacturing
- Life science applications
- Metrology and inspection systems
