Description

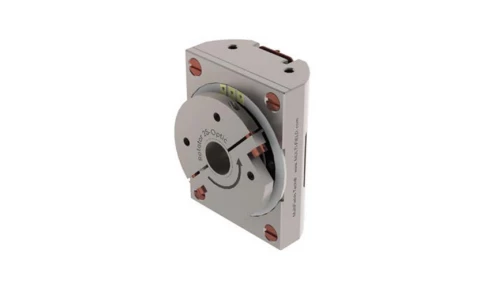

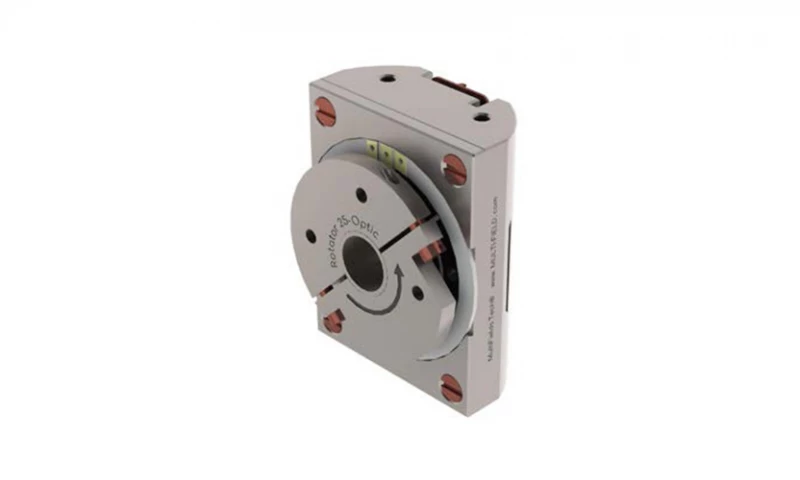

The Rotator25-Optic from MultiFields' 25mm Series is a precision-engineered, closed-loop rotary stage designed for optical and cryogenic applications in demanding research environments. Featuring a compact 30 × 23 × 14.5 mm design and an integrated Φ6 mm optical aperture, this stage enables precision rotation of optical components or beams under extreme conditions. Built with non-magnetic materials such as pure titanium and BeCu, it supports operation within magnetic fields up to 18 Tesla.

Engineered for ultra-high vacuum (UHV) levels down to 2E-11 mbar and temperatures as low as 30 mK, the Rotator25-Optic is ideal for integration into dilution refrigerators and other cryogenic setups. With 360° endless rotation, 1.5 N·cm torque, and a closed-loop resistive sensor providing 10 m° resolution, this device offers exceptional repeatability and stability for fine rotational positioning.

Available in multiple optional versions (.HV, .ULT, .UHV, .ULT.UHV), the Rotator25-Optic delivers flexible performance across a wide range of scientific and photonic applications.

Rotator25-Optic: Compact Low-Temperature Piezoelectric Rotary Stage with Φ 6 mm Aperture & 360° Endless Travel

Visit the Zolix Instruments CO.,LTD Store

Specifications

Vacuum Compatible: Yes
Built-in Controller: Yes
Range: 360 degrees
Unidirectional Accuracy: 0.05 degrees
Repeatability: <0.05 degrees
Backlash: Not Specified
Encoder Resolution: 320 CPR
Stage Diameter: 30 mm
Max. Load: 250 g
Dynamic Torque: 1.5 Ncm
Position Encoder: Resistive Sensor
Resistive Sensor: 10 m°
Footprint × Height: 30 × 23 × 14.5 mm
Weight: 24 g
Optical Aperture: Φ6 mm
Drive Voltage Max.: 200 V
Dynamic Torque: 1.5 N·cm
Materials (Main Body): Pure Ti, BeCu
Operating Temperature: 1.4-400 K
Vacuum Compatibility: Up to 2E-11 (UHV) mbar
Magnetic Field Compatibility: Up to 18 Tesla

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Sleek Dimensions: Boasts a compact footprint of 30x23x14.5 mm.
  • Ready for Extremes: Designed to operate in both ultra-high vacuum (2 E-11 mbar) and frigid environments (as low as 30 mK).
  • Magnetic Field Resilience: Fabricated from non-magnetic materials—pure Ti & BeCu—and fully compatible with magnetic fields up to 18 Tesla.
  • Sturdy Performance: Capable of supporting high loads (up to 250 g) and delivering a torque of 1.5 Ncm.
  • Uninterrupted Rotation: Offers a continuous 360° travel range, facilitating endless rotation.
  • Precision at its Best: Features a closed-loop control system coupled with position sensing, ensuring a resolution up to 10 m°.
  • Optimized for Optics: Comes equipped with a Φ 6 mm aperture, ideal for optical applications.

Applications

  • Cryogenic Optics: Perfect for rotating mirrors, lenses, or filters in dilution refrigerators
  • Quantum Optical Experiments: Stable optical positioning under high field and low-temp conditions
  • High-Field Magneto-Optics: Compatible with setups requiring up to 18 T fields
  • Vacuum-Based Photonics: Maintains clean beam paths in ultra-high vacuum conditions
  • Nanopositioning in Research Labs: Ideal for tasks requiring fine angular alignment in compact spaces

Frequently Asked Questions

What are the dimensions of the Rotator25-Optic piezoelectric rotator?
The Rotator25-Optic features a compact design, measuring 30x23x14.5 mm.
Is the Rotator25-Optic compatible with ultra-high vacuum environments?
Yes, the Rotator25-Optic can operate in ultra-high vacuum levels of 2 E-11 mbar.
What materials make the Rotator25-Optic non-magnetic?
The Rotator25-Optic is made of non-magnetic materials, including pure Ti & BeCu.
Can the Rotator25-Optic function in high magnetic fields?
Yes, it is designed to work compatibly in magnetic fields up to 18 Tesla.
What are the load capacity and torque capabilities of the Rotator25-Optic?
The Rotator25-Optic can handle loads up to 250 g and offers a torque of 1.5 Ncm.
How much travel range does the Rotator25-Optic offer?
It features a continuous 360° travel range.
What ensures the precision of the Rotator25-Optic?
It comes with a closed-loop control system and position sensing, providing up to 10 m° resolution.
Does the Rotator25-Optic have an aperture?
Yes, the Rotator25-Optic is equipped with an aperture of Φ 6 mm.
What's the weight of the Rotator25-Optic?
The Rotator25-Optic weighs 24 g.
What's the maximum velocity of the Rotator25-Optic at 300 K?
At 300 K, the Rotator25-Optic achieves a maximum velocity of approximately 3 °/s.
