Description
Introducing the X-RST Series: high load motorized rotary stages with built-in controllers, designed to enhance your motion control systems. These advanced stages feature a 50.8 mm (2 inch) aperture with kinematic mounting options, ensuring repeatability and precision in assembly. With a robust 50 kg centered load capacity, the X-RST Series is engineered to handle demanding applications that require high load and angular positioning.
The X-RST Series stages are stand-alone units, requiring only a standard 24-48 V power supply to operate. They are equipped with an indexed knob that allows for smooth manual control at variable speeds, providing versatility even without the need for a computer. The intuitive control interface lets users switch between velocity mode and position mode with ease, offering flexibility in operation. Simply press and hold to switch modes, turn to move the stage, and press to stop.
Connectivity is a key feature of the X-RST Series. These stages can connect to the USB 2.0 or RS-232 port of any computer, and they are designed to be daisy-chained with several units per chain. This capability extends to any other Zaber products, allowing for seamless integration into existing systems. The convenient locking, 4-pin, M8 connectors ensure secure connections, while the shared power capability means that multiple X-Series products can operate from a single power supply, simplifying setup and reducing clutter.
The X-RST Series exemplifies Zaber's commitment to providing high-performance motion control solutions with user-friendly operation and reliable connectivity. These motorized rotary stages are ideal for applications that demand precision, strength, and ease of use, making them a valuable addition to any motion control setup.

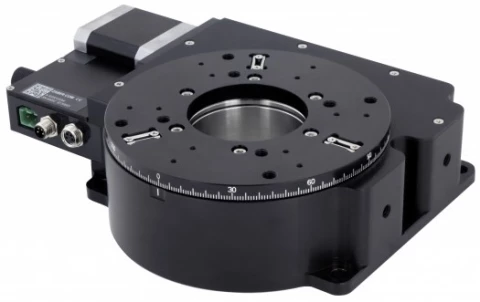

X-RST Series High Load Motorized Rotary Stage with Controller
Specifications
| Vacuum Compatible: | No |
|---|---|
| Built-in Controller: | Yes, Optional |
| Range: | 360 degrees |
| Unidirectional Accuracy: | 0.16 degrees |
| Repeatability: | <0.005 degrees |
| Backlash: | 0.05 degrees |
| Stage Diameter: | 120 mm |
| Built-in Controller: | Yes |
| Aperture With Kinematic Mounting Options: | 50.8 mm |
| Centred Load Capacity: | 50 kg |
| Maximum Speed: | 24 degrees/s |
| Maximum Torque: | 10 N-m |
Download Data Sheet
Features
- 50.8 mm (2 inch) Aperture: Features kinematic mounting options for repeatability of assembly.
- High Load Capacity: Supports up to 50 kg centered load.
- Fast and Powerful: Achieves speeds up to 24 deg/s and torque up to 10 N-m.
- Built-in Controller: Easily daisy-chain with other Zaber products for streamlined integration.
- Shared Power Supply: Multiple X-Series products in a daisy-chain can share a single power supply.
- Standalone Operation: Requires only a standard 24-48 V power supply for operation.
- Intuitive Manual Control: Indexed knob allows for smooth manual control at variable speeds.
- USB and RS-232 Connectivity: Connects to a computer via USB 2.0 or RS-232 port.
- Secure Connections: Locking 4-pin, M8 connectors ensure easy and secure connections.
- High Precision: Microstep size of 0.00015625 degrees for precise positioning.
- 360-Degree Range: Full rotational range for versatile applications.
- High Accuracy and Repeatability: Unidirectional accuracy of 0.16 degrees and repeatability of < 0.005 degrees.
- Compact and Robust Design: Stage diameter of 120 mm and weight of 2.4 kg.
- Wide Operating Temperature Range: Operates efficiently between 0-50 degrees C.
- Compliance: RoHS and CE compliant for safety and environmental standards.
Applications
- Optical and Laser Systems: Precise angular positioning of mirrors, filters, and optics
- Industrial Automation: Heavy-duty rotary positioning in manufacturing setups
- Robotics: High torque, accurate rotation for robot joints or tooling
- Research Laboratories: Precise, repeatable angular control for experiments
- Metrology and Inspection: Accurate rotational positioning for measurement devices
Frequently Asked Questions
Can the X-RST Series be operated without a computer?
Can multiple X-RST Series products share a single power supply?
What is the communication interface for the X-RST Series?
What is the load capacity of Zaber's X-RST Series motorized rotation stages?
What is the torque capacity of the X-RST Series?
