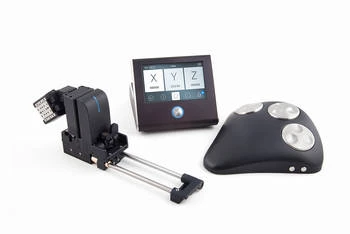

Sensapex Micromanipulator
Description
Smallest fully featured Micromanipulator provides 20 mm of precise piezo movement in all three/four axes!
Sensapex Micromanipulator
Specifications |
|
|---|---|
| Axes Of Motion: | Three |
| Travel Range: | 20 mm |
| Load Capacity (Horizontal): | 0.150 kg |
| Load Capacity (Vertical): | 0.150 kg |
| Max Speed: | 5 mm/s |
Features
Triple and quad axis manipulators: 20 mm range with 5 nm resolution
One controller - control up to 65536 manipulators in synchrony
ZERO DRIFT piezo drives provide extreme stability
Free graphical user interface and open source SDK for PC control
Applications
Intuitive user interface with touch screen display
Easy speed adjustment and manipulator selection
Programmable memory positions
Two RWs per controller; max. 65536 manipulators* • Simultanous lift / lowering feature
Fast computer interface through Ethernet
Graphical user interface for PC and open source SDK
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The Touch Screen Controller uses Li-ion batteries (rechargeable) and has a full working day usage time.
The load capacity of the Sensapex Micromanipulator is 0 - 150 g.
The maximum speed of the Sensapex Micromanipulator is 5 mm/s.
The positioning range of the Sensapex Micromanipulator is 20x20x20 mm3 (XYZ).
The resolution and repeatability of the Sensapex Micromanipulator is 5 nm / 100 nm.
