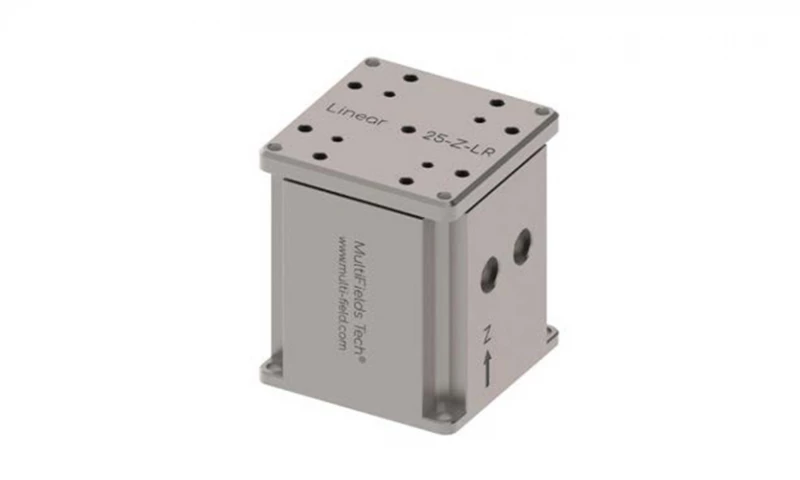

Thumbnail of Linear25-z-LR Low Temperature Piezo Motion - Linear Series photo 1

Description

The Linear25-z-LR Low Temperature Piezo Linear stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications.

The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Linear25-z-LR  is available in different versions, including low temperature,  vacuum options, catering to various application requirements.



Linear25-z-LR Low Temperature Piezo Motion - Linear Series

Visit the Zolix Instruments CO.,LTD Store

Specifications

Axes Of Motion: One
Travel Range: 16 mm
Load Capacity (Horizontal): 0.3 kg
Load Capacity (Vertical): Not Specified
Max Speed: 2 mm/s
Weight: 0.034 kg
Guiding Mechanism: Other
Voltage Requirement: Other
Dynamic Force: 3 N
Position Encoder: Resistive Sensor
Encoder Range: 16 mm
Sensor Resolution: ~150 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact design, dimensions: 25*25*29.6 mm
  • Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
  • Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic Þeld
  • High loads & high thrusts: 300 g & 3 N
  • Long travel range: 16 mm
  • Closed-loop control with position sensing up to 0.1 um resolution

Applications

  • Precision positioning
  • Microscopy
  • Optics and photonics research
  • Semiconductor manufacturing
  • Life science applications
  • Metrology and inspection systems
  • Works well in a cryostat
