Description

The Radiantis PowerSense™ Optical Power Meter offers unmatched performance for precise optical power measurement across a broad dynamic range of 1 nW to 20 W using a single compact detector head. Designed for real-time monitoring, this high-speed power meter achieves readout speeds of up to 100 readings per second via USB, ensuring fast and accurate data acquisition for demanding laboratory, installation, and diagnostic tasks.

Available in multiple models, the PowerSense™ covers standard spectral ranges from 200 nm to 1800 nm, with options for Deep UV (down to 25 nm) and long-wave infrared (up to 8 mm) upon request. Its integrated design combines detector head and power meter in one enclosure, reducing setup complexity. The included user-friendly software and programming platform facilitate seamless integration into research, OEM, or QA environments.

Compact, lightweight, and mountable with M4 or 8-32 threads, it is ideal for laser diagnostics, optical telecommunications, and hand-held inspection of diverse light sources. Optional detachable attenuators and fiber inputs expand its versatility, making PowerSense™ the preferred solution for precision optical power measurement across science and technology sectors.

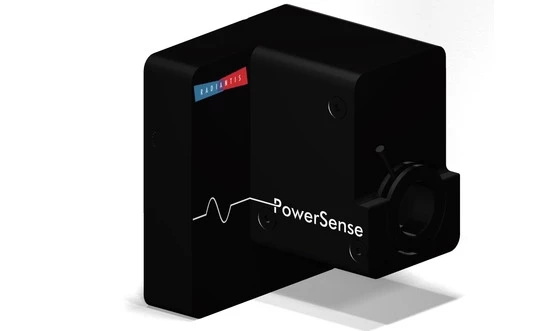

PowerSense - Optical Power Meter

Specifications

Max Average Power: 20 W
Effective Aperture: 10 mm
Spectral Range: 0.025 – 8 um
Cooling Method: Heatsink

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-Wide Dynamic Range: Measures from 1 nW to 20 W with a single detector head for maximum versatility.
  • High Readout Speed: Achieves up to 100 readings per second for real-time monitoring.
  • Compact Integrated Design: Combines detector and power meter in one enclosure for ease of use.
  • Multiple Spectral Models: Covers 200 – 1000 nm, 340 – 1000 nm, and 800 – 1800 nm as standard, with extended UV and IR ranges available.
  • User-Friendly Software: Includes intuitive Windows GUI with USB 2.0 connectivity for streamlined operation.
  • Customisable Options: OEM configuration, fiber input, and detachable attenuators with variable iris available.
  • Portable and Mountable: Lightweight with threaded holes for standard optical posts.

Applications

  • Laser Diagnostics: Enables precise optical power measurements for scientific laser characterization.
  • Laser Maintenance and Installation: Facilitates quick and accurate power checks during setup or servicing.
  • Hand-Held Optical Inspection: Ideal for portable inspection of diverse light sources in field and lab environments.
  • Optical Telecommunications: Suitable for routine power monitoring in telecom networks and systems.

Frequently Asked Questions

What are the applications of PowerSense?
PowerSense is ideal for real-time monitoring of optical power generated by lasers. It can be used in scientific applications, laser maintenance and installation, or as a hand-held device for optical power inspection. It is also suitable for optical telecommunications.
What spectral ranges does PowerSense cover?
PowerSense is offered for different spectral ranges, covering 200 - 1000 nm, 340 - 1000 nm, and 800 - 1800 nm as standard products. Deep UV (from 25 nm) and longer infrared (to 8 µm) versions are available by special request.
What is PowerSense?
PowerSense is an optical power meter that incorporates both the detector head and power meter under the same enclosure.
What is the dynamic range of PowerSense?
PowerSense has the widest dynamic range with a single detector head, measuring power levels across 1 nW to 20 W.
What is the read-out speed of PowerSense?
PowerSense has a fast read-out speed of typically 100 readings/second.

Got more questions? Use the inquiry form to ask the supplier directly.
