Description

About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

Product Description: Gentec-EO PRONTO-250 Power Detector is for measuring laser power from 0.5 W - 250 W and has power probes with touch screen controls. It\'s used for laser power measurements in a broad spectral range. This pocket-size user-friendly detector will help you in your laser power measurement needs for academic and industrial applications.

Power Detector - PRONTO 250-PLUS

Visit the Gentec-EO Store

Specifications

Max Average Power: 250 W
Effective Aperture: 19 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Convection, Thermoelectric, Heatsink, Fan-cooled
Continuous Power (CWP): Up to 8 W
Single Shot Energy (SSE): Up to 25 J
Power Range: 0.5 W - 250 W
Calibrated Spectral Range: 0.248 – 2.5 μm and 10.6 μm
Noise Equivalent Power/Energy: 10 mW
Minimum Measurable Power: 0.5 W
Response Time: 5 sec
Measurement Accuracy: ± 3 %
Display Resolution: 1 mW
Maximum Average Power Density: 45 kW/cm² (at 1064 nm, 10 W, CW) / 14 kW/cm² (at 10.6 μm, 10 W, CW)
Maximum Exposure Time: 6 sec
Maximum Device Temperature: 65°C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

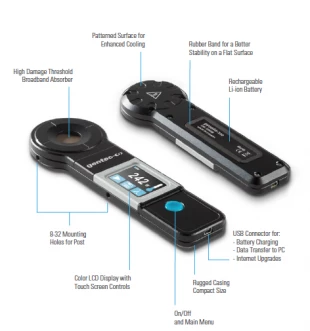

Features

1. POCKET-SIZE
This mid to high power laser probe is so compact it fits in your pocket!

2. EASY-TO-USE
The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the
touch of a button!

3. USER SETABLE
You can set the wavelength, brightness and screen orientation to adapt to your application.

4. DATA LOGGING
Save your data to the internal memory and then transfer it to your PC over the USB connection.

5. FROM LOW TO HIGH POWERS
Thanks to a low noise level and high damage threshold, the Pronto can measure powers from 0.5 W to 250 W.

6. YAG AND CO2 CALIBRATIONS
The Pronto-250 comes fully calibrated: every wavelength between 248 nm and 2.5 µm (YAG), and a real calibration at 10.6 µm (CO2). The Pronto-250-PLUS has an additional calibration for Single-Shot Energy measurements.

7. HANDS-FREE OPERATION
Place it on a fl at surface or use one of the 2 threaded holes for safe use with optical stands.

Applications

Power Detector - PRONTO 250-PLUS laser power detector is for your laser power measurement needs in academic, industrial applications.

Frequently Asked Questions

What is the Gentec-EO PRONTO-250 Power Detector used for?
The Gentec-EO PRONTO-250 Power Detector is used for measuring laser power from 0.5 W - 250 W in a broad spectral range.
What are the features of the Gentec-EO PRONTO-250 Power Detector?
The features of the Gentec-EO PRONTO-250 Power Detector include pocket-size, easy-to-use touch screen controls, user settable wavelength and screen orientation, data logging, and the ability to measure powers from 0.5 W to 250 W.
Is the Gentec-EO PRONTO-250 Power Detector calibrated?
Yes, the Gentec-EO PRONTO-250 Power Detector comes fully calibrated for every wavelength between 248 nm and 2.5 µm (YAG), and a real calibration at 10.6 µm (CO2). The Pronto-250-PLUS has an additional calibration for Single-Shot Energy measurements.
Can the Gentec-EO PRONTO-250 Power Detector be used hands-free?
Yes, the Gentec-EO PRONTO-250 Power Detector can be placed on a flat surface or used with one of the 2 threaded holes for safe use with optical stands.
What is the range of laser power that the Gentec-EO PRONTO-250 Power Detector can measure?
The Gentec-EO PRONTO-250 Power Detector can measure laser power from 0.5 W to 250 W.
