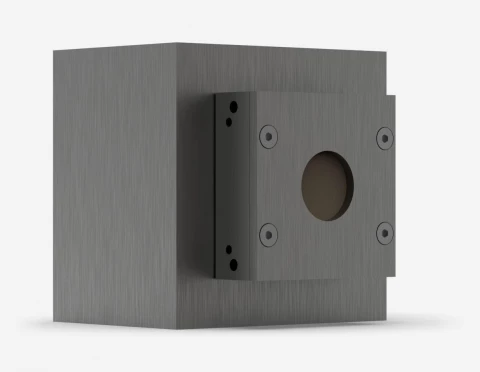

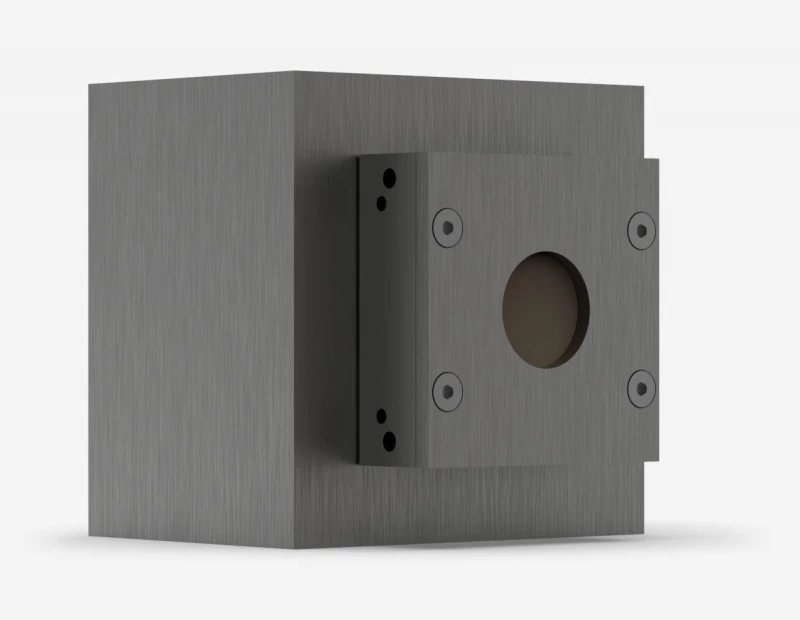

UP19K-50L-H5-D0 Thermal Detector for Laser Power Measurement
Description
The UP19K-50L-H5-D0 is a highly efficient thermal detector designed for laser power measurement, capable of handling powers up to 50 W. With a modular concept and five different cooling modules, it offers versatility and power capability.
This detector boasts high performance with a fast rise time of 0.6 seconds and a high damage threshold of 36 kW/cm². Its compact design, measuring only 20.6 mm thick in the 15S model, makes it suitable for various applications.
Additionally, it can measure single-shot energy up to 15 J and features a smart interface containing all calibration data for ease of use.
UP19K-50L-H5-D0 Thermal Detector for Laser Power Measurement
Specifications |
|
|---|---|
| Max Average Power: | 50 W |
| Effective Aperture: | 19 mm |
| Spectral Range: | 0.19-20um |
| Cooling Method: | Water, Heatsink, Fan-cooled |
| Noise Equivalent Power: | 1.0 mW |
| Minimum Repetition Period: | |
| Typical Rise Time: | 0.6 s |
| Typical Power Sensitivity: | 0.65 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Typical Energy Sensitivity: | 0.65 mV/J |
| Maximum Measurable Energy: | 15 J |
| Noise Equivalent Energy: | 0.02 J |
| Maximum Pulse Width: | 88 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Average Power Density: | 36 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Absorber: | H5 |
| Dimensions: | 76.2H x 76.2W x 73.6D mm |
| Weight: | 0.48 kg |
Features
- Modular Concept: Enhance power capability with 5 different cooling modules
- High Performance: Fast rise time of 0.6 seconds
- High damage threshold of 36 kW/cm²
- Compact Design: Only 20.6 mm thick in the 15S model
- Energy Mode: Measure single-shot energy up to 15 J
- Smart Interface: Contains all calibration data
- Compatible Stand: Designed to work seamlessly with compatible stands
- Compatible Displays & PC Interfaces: Suitable for use with various displays and PC interfaces
Applications
- Ideal for precise laser power measurements in a wide range of applications
- Suitable for research, industrial, and scientific laser systems
- Enables accurate power measurements for quality control and process optimization
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO UP19K-50L-H5-D0 has a high damage threshold of 36 kW/cm2.
The Gentec-EO UP19K-50L-H5-D0 can measure a maximum average power of 50 W.
The rise time of the Gentec-EO UP19K-50L-H5-D0 is 0.6 seconds.
The typical power sensitivity of the Gentec-EO UP19K-50L-H5-D0 is 0.65 V/W.
The Gentec-EO UP19K-50L-H5-D0 comes with output connection options such as DB-5 "intelligent" male connector, INTEGRA USB connector, INTEGRA RS-232 connector, BLU wireless option, BNC connector, Molex connector, and BNC/Molex connector.
