Description
The UP19K-110F-H9-D0 is a high-performance thermal detector designed for laser power measurement up to 110 W. It offers a compact design, fast rise time, and a high damage threshold. With its modular concept, it provides flexibility in increasing the power capability of the detector.
The detector is equipped with a smart interface that contains all the calibration data, making it easy to use and integrate into existing systems. It is compatible with various displays and PC interfaces for convenient power and energy measurement.

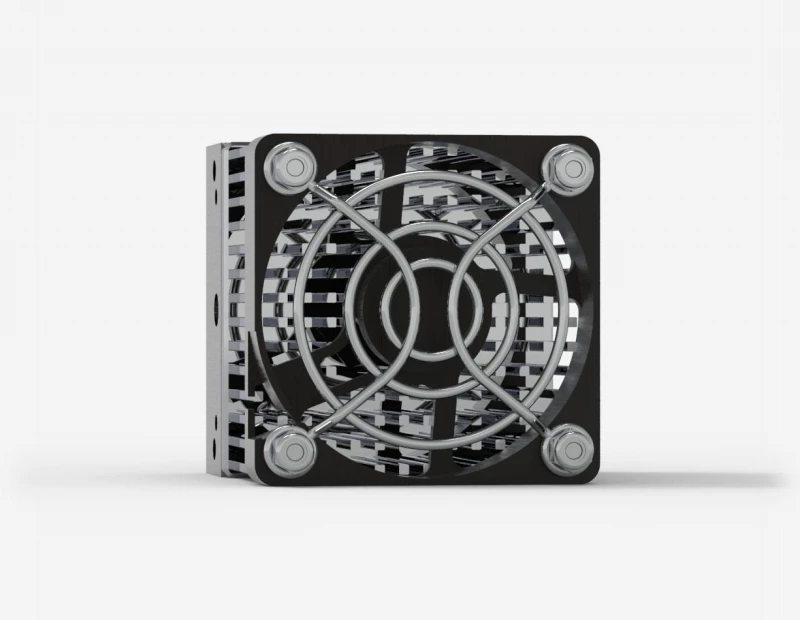

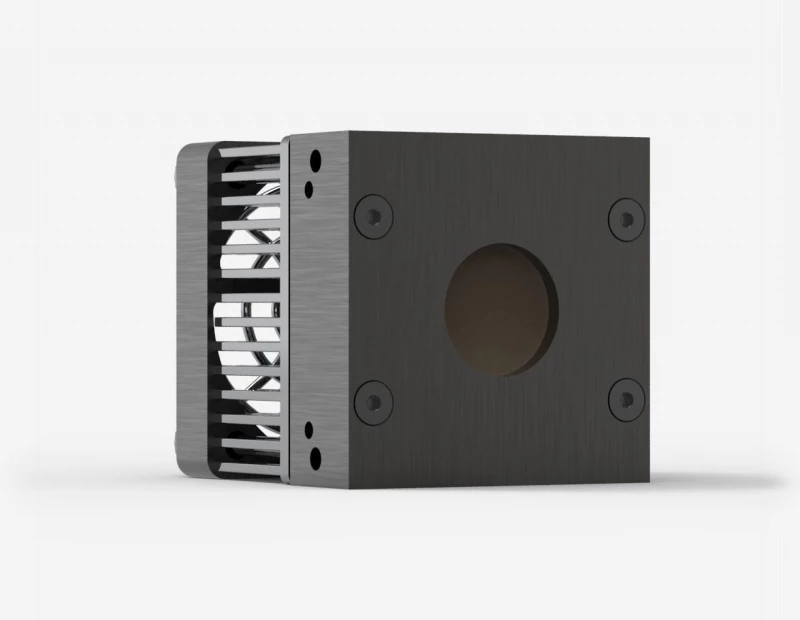

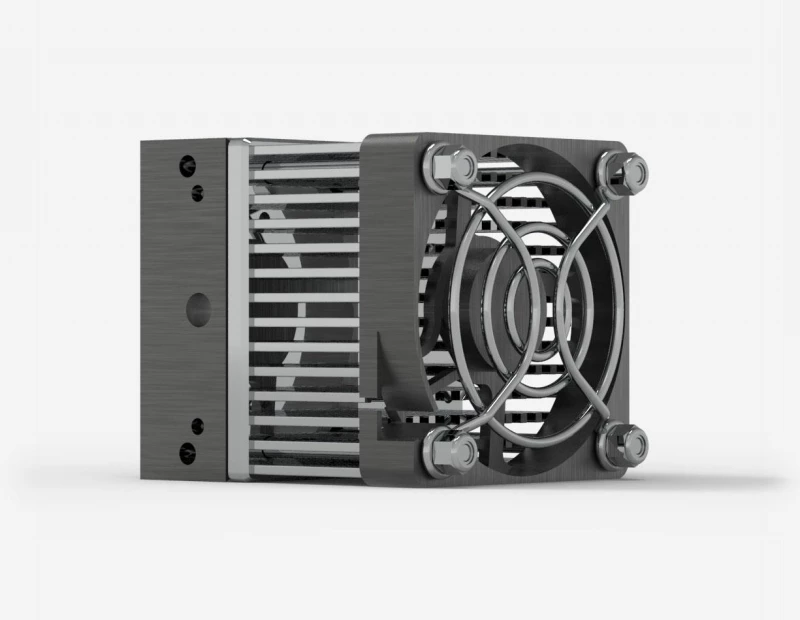

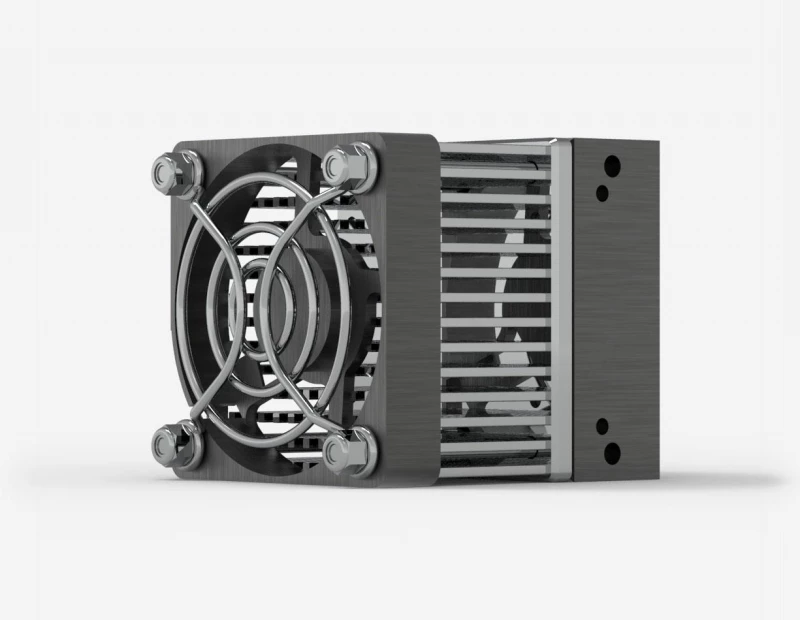

UP19K-110F-H9-D0 Thermal Detector for Laser Power Measurement
Specifications
Max Average Power: | 110 W |
---|---|
Effective Aperture: | 19 mm |
Spectral Range: | 0.19 – 20 um |
Cooling Method: | Water, Heatsink, Fan-cooled |
Noise Equivalent Power: | 3 mW |
Noise Equivalent Power: | 1.5 s |
Typical Power Sensitivity: | 0.25 mV/W |
Power Calibration Uncertainty: | ±2.5 % |
Repeatability: | ±0.5 % |
Typical Energy Sensitivity: | 0.23 mV/J |
Maximum Measurable Energy: | 25 J |
Noise Equivalent Energy: | 0.06 J |
Minimum Repetition Period: | 4 s |
Maximum Pulse Width: | 88 ms |
Energy Calibration Uncertainty: | ±5 % |
Maximum Average Power Density: | 45 kW/cm² kW/cm² |
Maximum Energy Density: | 1 1 J/cm² |
Absorber: | H9 |
Dimensions: | 50H x 50W x 63D mm |
Features
- Modular concept for increased power capability
- rise time of 0.6 sec
- High damage threshold of 45 kW/cm2
- Compact design, only 20.6 mm thick (15S model)
- Energy mode for measuring single-shot energy up to 15 J
- Smart interface with calibration data
- Compatible with various displays and PC interfaces
Applications
- Laser power measurement in industrial and research applications
- Laser power monitoring and control in laser processing systems
- Integration into laser systems for real-time power monitoring
- Quality assurance and testing of laser systems
Frequently Asked Questions
What are the features of the UP detectors?
The UP detectors are supplied with a flexible cable with output connection options, and may also be supplied with a stand. They are designed for use at high average power densities.
What are the measurement capabilities of the UP19K-110F-H9-D0 detector?
The UP19K-110F-H9-D0 detector has a maximum average power (continuous) of 110 W, a maximum average power (1 minute) of 150 W, and a noise equivalent power of 3 mW. It also has a typical rise time of 1.5 sec and a typical power sensitivity of 0.23 V/W.
What is the damage threshold of the UP19K-110F-H9-D0 detector?
The UP19K-110F-H9-D0 detector has a maximum average power density of 145 kW/cm² and a maximum energy density of 1 J/cm². It also has a high damage threshold of 45 kW/cm2.
What is the energy mode of the UP19K-110F-H9-D0 laser power detector?
The energy mode of the UP19K-110F-H9-D0 detector allows for the measurement of single shot energy up to 15 J, with a typical energy sensitivity of 0.23 mV/J and a maximum measurable energy of 125 J.
What is the Gentec-EO UP series of laser power detectors?
The Gentec-EO UP series of laser power detectors include seven families of opto-thermal sensors with different cooling options, with or without amplification.
