PINFET Optical Receiver Modules
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The OSI Laser Diode Inc. PINFET optical receiver modules are engineered to deliver exceptional performance in optical receiver systems demanding high sensitivity and wide dynamic range. These modules are particularly suited for use in telecommunications line-terminating equipment, repeaters, and optical sensor systems. The robust design ensures high reliability, adhering to stringent Telcordia standards, making them a dependable choice for critical applications.

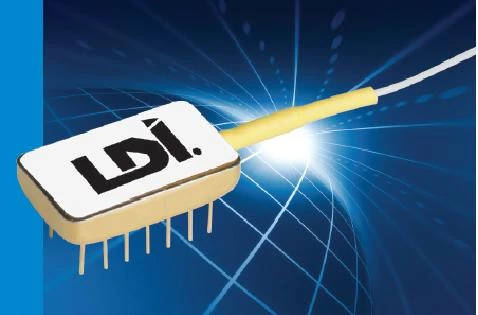

Each PINFET module is housed in a hermetic package, utilizing the industry-standard 14-pin DIP configuration. This design choice not only enhances durability but also ensures compatibility with a wide range of existing systems. The modules are available in various bandwidth options, ranging from 4MHz to 250MHz, allowing for flexibility in selecting the appropriate model to meet specific system requirements.
OSI Laser Diode Inc. offers these modules with a single supply option available in the LDFR series, catering to diverse operational needs. The series includes LDPF, LDPW, LDSF, and LDFR, each designed to cater to specific operational environments. The PINFET modules are also RoHS compliant, ensuring that they meet environmental and safety standards.
For those requiring further customization, detailed package drawings and connector options such as FC, LC, SC, and ST® are available upon request. OSI Laser Diode Inc. provides these products directly, or through their network of representatives, ensuring that high-quality optical receiver solutions are accessible to meet the demands of advanced telecommunications and sensor systems.
PINFET Optical Receiver Modules
Specifications |
|
|---|---|
| Diode Type: | InGaAs |
| Wavelength Of Operation: | 850 nm |
| Operating Temperature: | C |
| Minimum Bandwidth: | MHz |
| Suggested Data Rate: | Mb/s |
| Sensitivity: | dBm |
| Dynamic Range: | dB |
| Transimpedance: | Kohms |
Features
- High Sensitivity: Designed for optimal performance in detecting low-level optical signals.
- High Overload Power: Capable of handling high-power optical inputs without performance degradation.
- Wide Dynamic Range: Ensures reliable operation over a broad range of signal strengths.
- Multi-Wavelength Operation: Supports 850nm, 1310nm, and 1550nm wavelengths, making it versatile for various applications.
- Hermetic Package: Features an industry-standard 14 Pin DIP package for enhanced durability and reliability.
- Custom MIL or IEC Screening: Available for specialized applications requiring stringent standards.
- Single Supply Option: Available with the LDFR Series for simplified power requirements.
- RoHS Compliant: Environmentally friendly design adhering to global safety standards.
- Connector Options: Available with FC/PC, LC/PC, SC/PC, ST®, or unconnectorized for flexibility in connectivity.
- Wide Range of Models: Various models available with bandwidths from 4MHz to 250MHz to suit different performance needs.
Applications
- High Sensitivity: Ideal for detecting low power optical signals.
- High Overload Power: Capable of handling high power levels without distortion.
- Wide Dynamic Range: Suitable for a variety of signal strengths.
- Wavelength Operation: Compatible with 850nm, 1310nm, and 1550nm wavelengths.
- Hermetic Package: Industry standard 14 Pin DIP Package ensures reliability and compatibility.
- Custom MIL or IEC Screening: Available for specific military or industrial applications.
- Single Supply Option: Available with the LDFR Series for simplified power requirements.
- Telecommunications: Suitable for line-terminating equipment or repeaters.
- Optical Sensor Systems: Provides high sensitivity and dynamic range for sensor applications.
Frequently Asked Questions
The OSI Laser Diode Inc. PINFET provides an excellent solution for optical receiver systems that require both high sensitivity and wide dynamic range. Applications include telecommunications line-terminating equipment or repeaters and optical sensor systems.
The OSI Laser Diode Inc. PINFET features high sensitivity, high overload power, wide dynamic range, 850, 1310, 1550nm operation, hermetic package - industry standard 14 Pin DIP package, and custom MIL or IEC screening.
The connector types available for the OSI Laser Diode Inc. PINFET are FC = FC / PC, LC = LC / PC, SC = SC / PC, and ST = ST®.
The bandwidth of the OSI Laser Diode Inc. PINFET ranges from 4MHz to 250MHz depending on the part number.
The OSI Laser Diode Inc. PINFET can be ordered directly from OSI Laser Diode, Inc. or its representatives.
