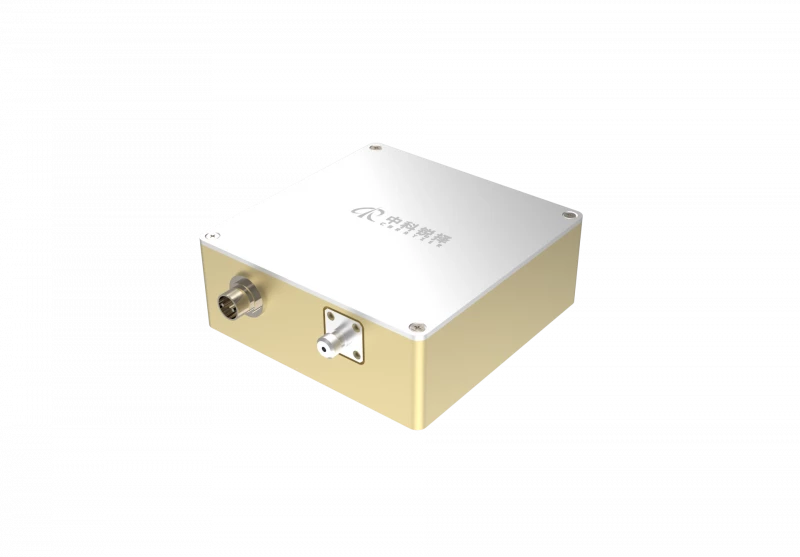

150MHz Low Noise Adjustable Gain SI PIN Balance Detector ZKPD-150M-CG-DC

Description

ZKPD-150M-CG-DC is a low noise high bandwidth SI PIN balance detector consisting of two balanced photodiodes with ultra-low noise. Sound high-speed adjustable gain amplification circuit and low-noise power supply. The two photodiodes are matched to achieve an excellent common-mode rejection ratio (CMRR) for better noise reduction. It is mainly used in laser wind measurement, laser vibration measurement, optical fiber sensing and other ultra-low and weak light coherent detection.

Specifications

Diode Type:	Si
Wavelength Of Operation:	320 nm
Max Frequency Response:	Other / Not specified
Package Type:	Surface Mount
Built-In Amplifier:	Yes
Applications:	Sensing and Measurement
Detector Surface Diameter:	800 um
-3dB Bandwidth:	DC-150/45/4/0.3/0.1 Mhz
Detector Peak Responsivity:	0.53 A/W
Saturation Input Optical Power (@820nm):	9 mW
Optical Input:	FC (removable)
Operating Temperature:	-40～+55 ℃

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Multi-stop adjustable transimpedance: 103/104/105/106/107V/A
High bandwidth: DC-150/45/4/0.3/0.1Mhz
Response range: 320~1080nm
Low output noise and high common-mode rejection ratio

Applications

Laser wind measurement
Laser vibrometry
Fiber optic sensing
Ultra-low weak optical coherence detection

Name

Work Email

Organization (recommended)

How many do you need?

Your message to supplier

Ships from:

China

Sold by:

CSRayzer Optical Technology ✓ Verified Supplier

On FindLight:

since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the ZKPD-150M-CG-DC?

The ZKPD-150M-CG-DC is a low noise high bandwidth SI PIN balance detector consisting of two balanced photodiodes with ultra-low noise, designed for applications such as laser wind measurement, laser vibrometry, fiber optic sensing, and ultra-low weak optical coherence detection.

What are the key features of the ZKPD-150M-CG-DC?

Key features include multi-stop adjustable transimpedance (103/104/105/106/107 V/A), high bandwidth (DC-150/45/4/0.3/0.1 MHz), low output noise, and high common-mode rejection ratio.

What is the spectral response range of the detector?

The spectral response range of the detector is 320 to 1080 nm.

What is the maximum operating temperature for the ZKPD-150M-CG-DC?

The maximum operating temperature for the ZKPD-150M-CG-DC is 5°C.

What is the saturation input optical power at the peak wavelength?

The saturation input optical power at the peak wavelength is 9 mW.

What is the typical supply voltage required for the module?

The typical supply voltage required for the module is 5 V.

What applications is the ZKPD-150M-CG-DC suitable for?

The ZKPD-150M-CG-DC is suitable for applications such as laser wind measurement, laser vibrometry, fiber optic sensing, and ultra-low weak optical coherence detection.
