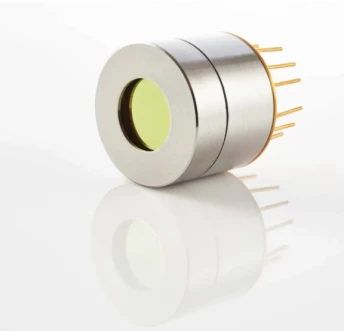

HgCdTe (MCT) Photoconductive Detector
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2022
Description
The PCI-3TE-12-1×1-TO8-wZnSeAR-36 is a state-of-the-art infrared photoconductive detector designed for optimal performance and stability. This advanced device is built on a sophisticated HgCdTe heterostructure and features a three-stage thermoelectric cooling system. It is specifically optimized to deliver peak performance at a wavelength of 12 µm, making it an ideal choice for applications requiring precise infrared detection.
To enhance its performance, the detector element is monolithically integrated with a hyperhemispherical GaAs microlens. This integration significantly improves the device's efficiency by focusing incoming infrared light onto the active element. The detector is designed to operate in an optimum bias voltage and current readout mode, ensuring reliable performance. However, it is important to note that performance at low frequencies may be reduced due to 1/f noise.
The device is equipped with a 3° wedged zinc selenide anti-reflection coated (wZnSeAR) window. This feature is crucial as it prevents unwanted interference effects, ensuring that the detector's readings are accurate and reliable. The robust design and high-quality materials used in the PCI-3TE-12-1×1-TO8-wZnSeAR-36 make it a reliable choice for various demanding applications, providing excellent long-term stability and reliability.
HgCdTe (MCT) Photoconductive Detector
Specifications |
|
|---|---|
| Diode Type: | HgCdTe |
| Wavelength Of Operation: | 12000 nm |
| Max Frequency Response: | Other / Not specified |
| Active Area Size: | 1 mm² |
| Dark Current: | 1-10 nA |
| Package Type: | Custom Package |
| Built-In Amplifier: | Not Specified |
| Applications: | Sensing and Measurement |
| Spectral Range: | 1 to 14 µm |
Features
- Wide Spectral Range: Operates effectively across a broad range from 2 to 14 µm, making it versatile for various applications.
- High Responsivity: Offers excellent current responsivity with ≥0.11 A/W at peak wavelength and ≥0.07 A/W at optimum wavelength.
- Large Dynamic Range: Provides a wide dynamic range, enhancing the detector's performance in different environments.
- Excellent Stability and Reliability: Built with sophisticated HgCdTe heterostructure for long-term stability and reliability.
- Fast Delivery: Available with quick delivery options to meet urgent project timelines.
- Quantity Discounted Price: Offers competitive pricing for bulk purchases, making it cost-effective for large-scale projects.
- Advanced Cooling: Features a three-stage thermoelectric cooler with a detector temperature of ~210 K for optimal performance.
- Anti-Reflection Coating: Equipped with a 3° wedged zinc selenide anti-reflection coated window to prevent unwanted interference effects.
- Compact Design: Packaged in a TO8 format with a 1×1 mm optical area, suitable for integration into various systems.
Applications
- FTIR Spectroscopy: Provides high-accuracy spectral detection for research and analysis.
- Spectrometry: Supports advanced optical measurement and analysis systems.
- Environmental Monitoring: Detects trace gases across a broad infrared spectrum.
- Industrial Process Control: Ensures reliable detection in manufacturing and safety systems.
- Scientific Research: Ideal for laboratory studies requiring high-resolution IR detection.
Frequently Asked Questions
The detector has a wavelength range of 1.0 to 14.0 µm.
The detector is optimized for maximum performance at a wavelength of 12 µm.
Yes, the detector has a three-stage thermoelectric cooling system.
The GaAs microlens is integrated to improve the performance of the detector.
Yes, the detector is suitable for FTIR spectroscopy and spectrometry applications.
