Description
Introducing the RZPD-200M-AC, a high-performing InGaAsPIN balancing detector that offers both low noise and high bandwidth for ultra-sensitive detection applications.
This detector is designed with two balanced photodiodes and an ultra-low noise high-speed amplification circuit, along with a noise floor power supply, to ensure accurate and reliable measurements. The photodiodes are carefully matched to achieve an excellent common-mode rejection ratio (CMRR) for improved noise reduction, making it an ideal choice for applications such as laser wind measurement, laser vibration measurement, optical fiber sensing, and other ultra-low and weak light coherent detection scenarios.
With a high transimpedance gain of 30kV/A and a high bandwidth of AC-200MHz, the RZPD-200M-AC offers an exceptional response scope of 800~1700nm. Its low output noise and CMRR make it an excellent option for precise and consistent measurements.
The RZPD-200M-AC is an ideal choice for those looking for a reliable and accurate InGaAsPIN balancing detector with low noise and high bandwidth. Its applications include laser wind measurement, laser vibrometry, fiber optic sensing, and ultra-low weak optical coherence detection.

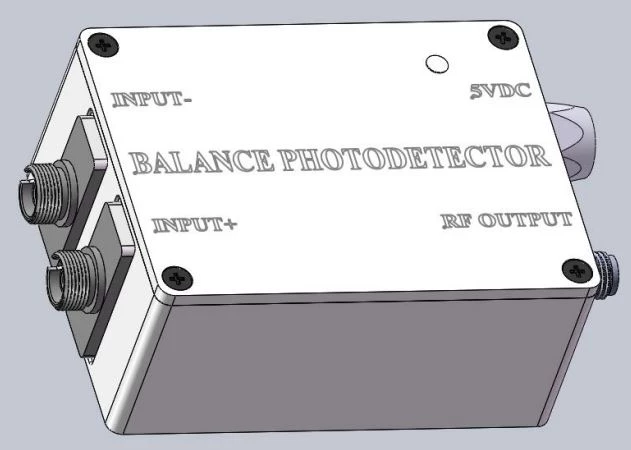

InGaAs PIN Balance Detector
Specifications
Diode Type: | InGaAs |
---|---|
Wavelength Of Operation: | 1550 nm |
Operating Temperature: | -40 to +85 degC |
Storage Temperature: | -55 t +100 degC |
Saturation Input Optical Power: | 150 uW |
Module Operating Voltage: | 5 V |
Module Power Consumption: | 800 mW |
Spectral Response Range: | 800 - 1700 nm |
Detector Responsiveness: | 0.95 A/W |
Equivalent Noise (NEP): | 4 pW/√Hz |
Features
- High transimpedance gain: 30kV/A
- High bandwidth: AC-200MHz
- Response scope: 800~1700nm
- Low output noise and CMRR
- Two balanced photodiodes for improved noise reduction
- Ultra-low noise high-speed amplification circuit
- Noise floor power supply
Applications
- Laser wind measurement
- Laser vibrometry
- Fiber optic sensing
- Ultra-low weak optical coherence detection
Frequently Asked Questions
What is the response scope of the RZPD-200M-AC?
What is the transimpedance gain of the RZPD-200M-AC?
What is the bandwidth of the RZPD-200M-AC?
How many photodiodes does the RZPD-200M-AC have?
What is the RZPD-200M-AC?
What are the features of the RZPD-200M-AC?
What are the applications of the RZPD-200M-AC?
What is the operating temperature range of the RZPD-200M-AC?
What is the maximum absolute rating for the RZPD-200M-AC?
