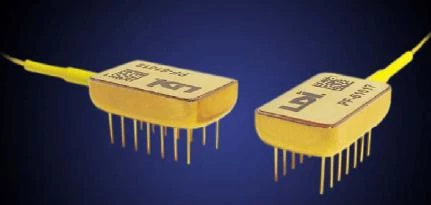

LDPA 0003R PINFET Optical Receiver Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The OSI Laser Diode Inc. LDPA 0003R PINFET is a premium optical receiver module tailored for systems that demand both high sensitivity and extensive dynamic range. This product is particularly beneficial for telecommunications line-terminating equipment and repeaters, as well as optical sensor systems. It offers users the flexibility of adjustable gain, which can be crucial for optimizing system performance to meet specific needs.
Engineered with precision, the LDPA 0003R operates efficiently at wavelengths of 1310nm and 1550nm, with an option for 850nm. Its hermetically sealed package, conforming to the industry-standard 14 Pin DIP configuration, ensures durability and reliability under varying conditions. Furthermore, the module is RoHS compliant, aligning with environmental and safety standards, and offers options for custom MIL or IEC screening to meet rigorous application requirements.
Located in Edison, NJ, OSI Laser Diode Inc. is committed to quality and innovation, as evidenced by its ISO 9001:2008 certification. The LDPA 0003R represents this commitment, offering a robust solution for modern optical communication needs. It is designed to perform optimally at a standard operating temperature of 25°C, with a power supply range of 4.5 to 5.5 V, ensuring consistent performance across various settings.
LDPA 0003R PINFET Optical Receiver Module
Specifications |
|
|---|---|
| Diode Type: | InGaAs |
| Wavelength Of Operation: | 1550 nm |
| Bandwidth (3dB): | 3 MHz |
| Optical Input Overload: | -6 dBm |
| Responsivity (1550nm): | 0.9 A/W |
| Optical Sensitivity (1550nm): | -54 dBm |
| Operating Temperature: | °C |
Features
- High Sensitivity: Designed to deliver exceptional optical signal detection
- Wide Dynamic Range: Accommodates a broad range of optical input levels
- User Adjustable Gain: Allows customization for optimal system performance
- 1310nm and 1550nm Operation: Compatible with common telecommunication wavelengths
- 850nm Option Available: Provides flexibility for different applications
- Hermetic Package: Features an industry-standard 14 Pin DIP package for durability and reliability
- Custom MIL or IEC Screening: Available for specialized requirements
- RoHS Compliant: Meets environmental and safety standards
Applications
- Telecommunications Line Equipment: Ideal for line terminating receivers in long-haul and metro networks
- Optical Repeaters: Suitable for intermediate signal boosting across optical links
- Optical Sensor Systems: Used in industrial and scientific systems for precision detection
- High Sensitivity Monitoring: For applications requiring ultra-low light level detection
- Dynamic Signal Environments: Environments that benefit from adjustable transimpedance gain
Frequently Asked Questions
It provides an excellent solution for optical receiver systems that require both high sensitivity and wide dynamic range. Applications include telecommunications line terminating equipment or repeaters and optical sensor systems where a user adjustable gain may be desirable for optimizing system performance.
The LDPA 0003R PINFET has high sensitivity, wide dynamic range, user adjustable gain, and operates at 1310, 1550nm. It also has an 850NM option available, a hermetic package, custom MIL or IEC screening, and is RoHS compliant. The performance @ 25°C (+/- 5.0 VDC) is listed in the datasheet.
The Control Voltage Range (Pin 13) is -4.5 to 0.0 V.
Please refer to your product purchase agreement for complete details or check with your Laser Diode sales representative.
Products can be ordered directly from OSI Laser Diode Inc. or its representatives. For a complete listing of representatives, visit our website at www.laserdiode.com. When ordering, refer to the numbering diagram provided in the outline drawing.
