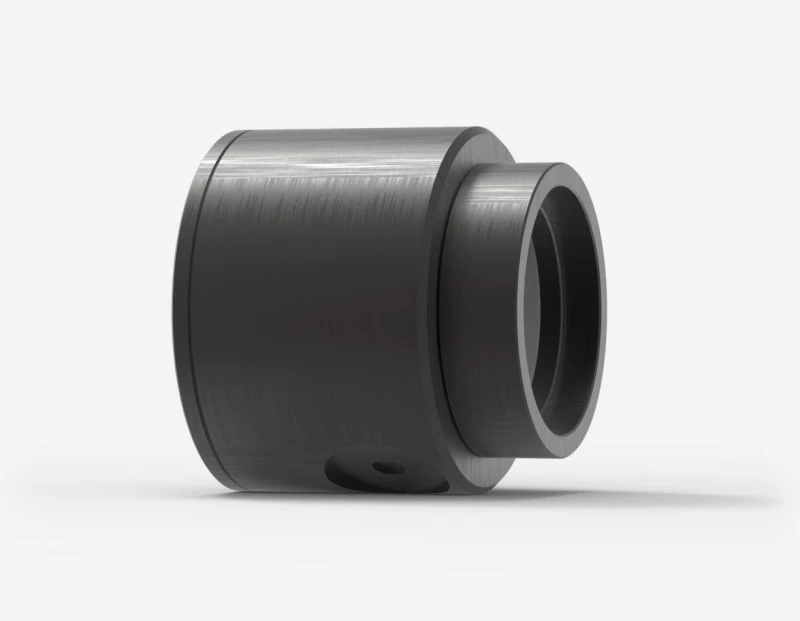

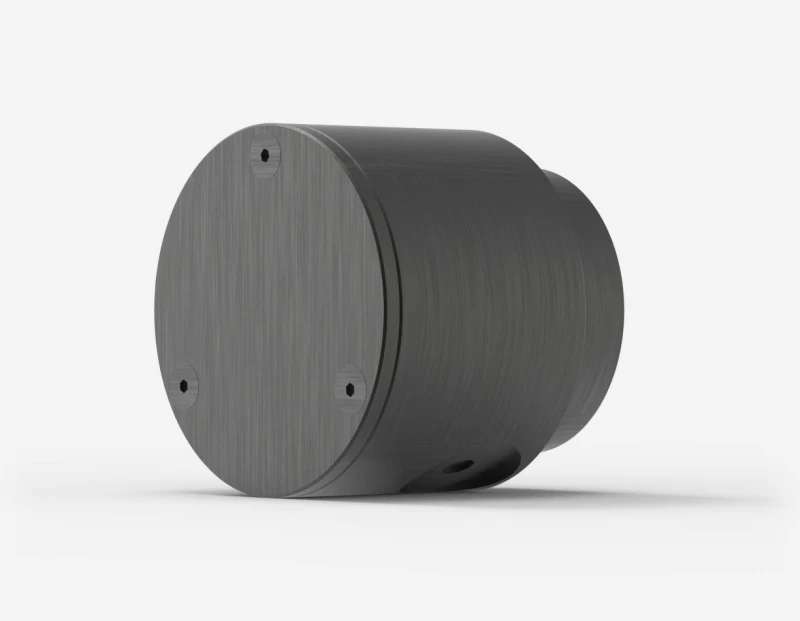

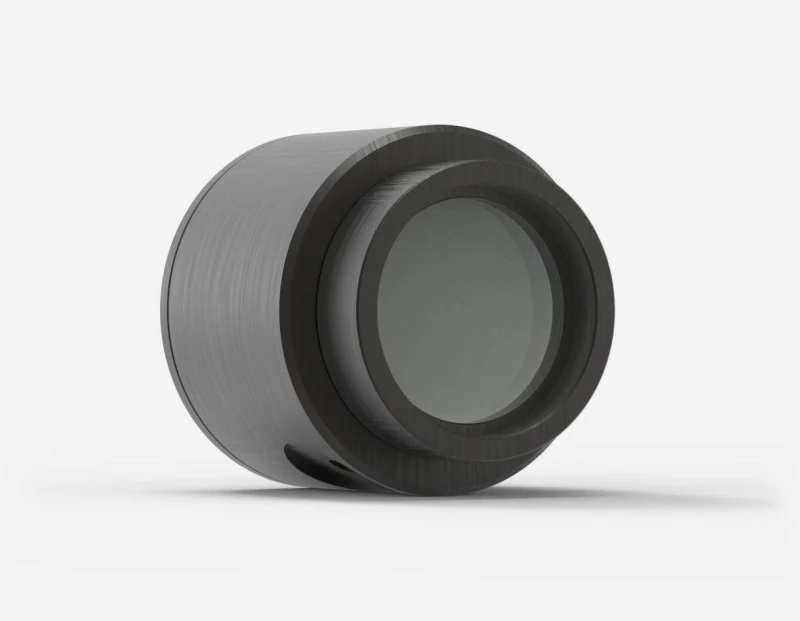

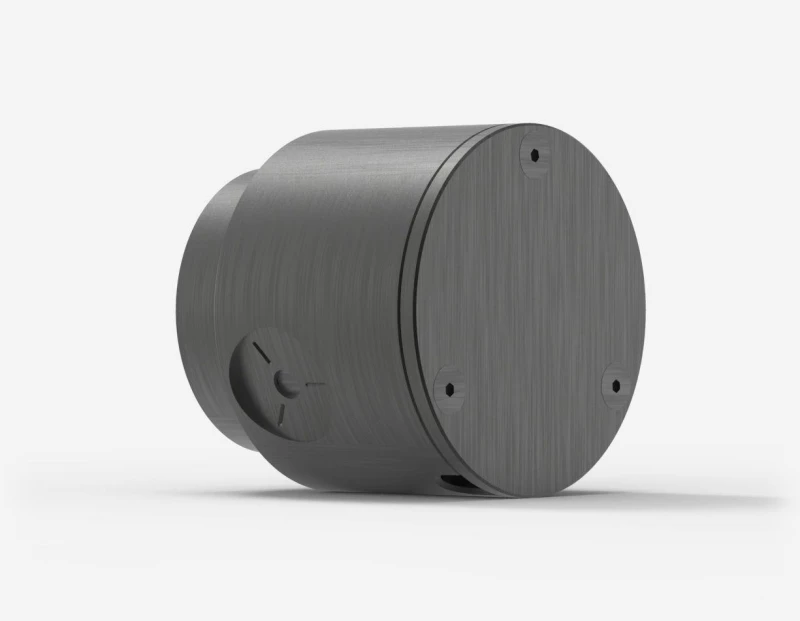

PH20-GE-OD2-D0 Photodiode Detector for Laser Power Measurement
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
The PH20-GE-OD2-D0 photodiode detector is an advanced solution for precise laser power measurement, capable of handling up to 500 mW. This device is engineered to deliver high accuracy and reliability, making it an essential tool for professionals in the field of photonics and laser technology. With its robust design and cutting-edge features, the PH20-GE-OD2-D0 ensures optimal performance across a wide range of applications.
Designed with a large aperture of 10 mm in diameter, this power detector accommodates a variety of laser beams, enhancing its versatility. The detector is available in three distinct versions, each tailored to specific spectral ranges and power capacities. The Germanium version, which operates within the 800 - 1650 nm range, is particularly notable for its ability to measure laser power up to 500 mW. This makes it an ideal choice for applications requiring high sensitivity and precision.
One of the standout features of this laser power measurement device is its choice of attenuators, allowing users to select the appropriate level of transmission for their specific needs. The OD2 attenuator, for instance, offers 1% transmission, providing flexibility and control over measurement parameters. Additionally, the device boasts a smart interface that stores all calibration data, ensuring ease of use and consistency in measurements.
Precision is further enhanced by the device's ability to select wavelengths in 1 nm steps, coupled with its low calibration uncertainty. The PH20-GE-OD2-D0 also features a rapid typical rise time of 0.2 seconds, enabling quick and efficient data acquisition. With a peak sensitivity at 1550 nm and a minimum repetition rate of 155 kHz, this photodiode detector is engineered to meet the demands of high-performance laser measurement tasks.
Compact and lightweight, the PH20-GE-OD2-D0 laser power detector measures 38.1 mm in diameter and 36 mm in depth, with a weight of just 0.14 kg. Its durable construction ensures longevity and reliability, making it a valuable addition to any laboratory or industrial setting. For those seeking a comprehensive and precise laser power measurement solution, the PH20-GE-OD2-D0 stands out as a top-tier choice.
PH20-GE-OD2-D0 Photodiode Detector for Laser Power Measurement
Specifications |
|
|---|---|
| Diode Type: | Ge |
| Wavelength Of Operation: | 950 nm |
| Max Frequency Response: | Other / Not specified |
| Active Area Size: | Custom Size |
| Dark Current: | < 1 nA, 1-10 nA, 10-100 nA, > 100 nA |
| Package Type: | TO-Can |
| Built-In Amplifier: | No |
| Applications: | Telecommunications |
| Maximum Average Power: | 500 mW |
| Noise Equivalent Power (NEP): | 6 nW |
| Spectral Range: | 950-1650 nm |
| Typical Rise Time: | 0.2 s |
| Power Calibration Uncertainty: | ±5.0% (950 - 1559 nm) |
| Peak Sensitivity: | 1550 nm |
| Maximum Average Power Density: | 100 W/cm² |
| Aperture Diameter: | 5 mm |
| Absorber Material: | Germanium (Ge) |
| Dimensions: | 38.1 Ø x 36D mm |
| Weight: | 0.14 kg |
| Distance To Sensor Face: | 10.5 mm |
Features
- High Power Handling: Capable of measuring laser power up to 500 mW
- Broad Spectral Range: Covers the spectrum from 950 to 1650 nm
- Low Noise Equivalent Power: Ensures precise measurements with a nominal value of 6 nW
- Fast Response Time: Typical rise time of 0.2 seconds for quick data acquisition
- Traceable Calibration: NIST-traceable calibration for reliable and accurate measurements
- Peak Sensitivity: Optimized for a peak sensitivity at 1550 nm
- Damage Thresholds: Designed to withstand varying laser power levels
- Minimum Repetition Rate: Capable of handling repetition rates as low as 155 kHz
Applications
- Research and Development: Ideal for R&D environments requiring accurate laser power measurements
- Industrial Power Analysis: Suitable for analyzing laser power in various industrial applications
- Educational Demonstrations: Enhances educational experiments and demonstrations in optics and photonics
Frequently Asked Questions
The PH20-GE-OD2-D0 laser power detector can be used for laser power detection, laser optics, spectroscopy, and metrology.
The Gentec-EO Photodiode Detector PH20-GE-OD2-D0 has large apertures, a choice of attenuators, high accuracy, precise calibration, and a smart interface.
This laser power detector has a maximum average power of 500 mW, a noise equivalent power of 6 nW, and a spectral range of 950 - 1650 nm.
The Photodiode Detector PH20-GE-OD2-D0 has an aperture diameter of 5 mm, an absorber made of Ge, dimensions of 38.1Ø x 36D mm, and a weight of 0.14 kg.
This device is a photodiode detector for laser power measurement up to 500 mW.
