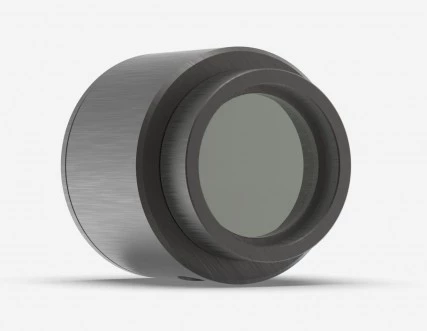

Gentec-EO Photodiode Detector PH20-GE-OD1-D0
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
The PH20-GE-OD1-D0 Photodiode Laser Power Detector by Gentec-EO is a precision instrument designed for accurate laser power measurement, capable of handling up to 300 mW. This device is engineered to meet the needs of professionals who require reliable and precise measurements across a broad range of wavelengths. Its robust construction and advanced features make it an ideal choice for various scientific and industrial applications.
With a spectral range of 900 to 1650 nm, this laser power detector is optimized for performance in the near-infrared region. The detector's peak sensitivity is 0.98 A/W at 1550 nm, ensuring high accuracy in power readings. The device's design incorporates a germanium absorber, which is known for its excellent response in the specified wavelength range. The aperture diameter of 5 mm allows for efficient capture of laser beams, while the compact dimensions of 38.1Ø x 36D mm and a weight of just 0.14 kg make it easy to integrate into various setups.
One of the standout features of this power detector is its precise calibration capability, with wavelength selection possible in 1 nm steps. This ensures that users can achieve the highest level of accuracy in their measurements. The detector also includes a smart interface that contains all the calibration data, simplifying the process of setup and use. Additionally, the device supports a range of compatible displays and PC interfaces, including MAESTRO, TUNER, UNO, and various P-LINK options, providing flexibility in how data is accessed and analyzed.
Designed with durability in mind, the PH20-GE-OD1-D0 photodetector can withstand a maximum average power density of 100 W/cm², making it suitable for high-power applications. The noise equivalent power is rated at 600 pW at 1550 nm, ensuring that even low-level signals can be accurately detected. This combination of features makes this laser power detector a versatile and reliable tool for professionals who demand precision and reliability in their laser power measurements.
Gentec-EO Photodiode Detector PH20-GE-OD1-D0
Specifications |
|
|---|---|
| Diode Type: | Ge |
| Wavelength Of Operation: | 900 nm |
| Maximum Average Power: | 300 mW |
| Noise Equivalent Power: | 600 pW |
| Spectral Range: | 900 - 1650 nm |
| Typical Rise Time: | 0.2 sec |
| Power Calibration Uncertainty (800 - 1559 Nm): | ±5.0 % |
| Power Calibration Uncertainty (1560 - 1650 Nm): | ±7.0 % |
| Peak Sensitivity: | 0.98 A/W @ 1550 nm |
| Maximum Average Power Density: | 100 W/cm² |
| Aperture Diameter: | 5 mm |
| Absorber: | Ge |
| Dimensions: | 38.1Ø x 36D mm |
| Weight: | 0.14 kg |
| Distance To Sensor Face: | 10.5 mm |
Features
- Large Apertures: Features a 10 mm Ø aperture for silicon sensors, allowing for efficient laser power detection.
- Multiple Versions:
- Silicon: 350 - 1080 nm, up to 750 mW
- Silicon-UV: 210 - 1080 nm, up to 38 mW
- Germanium: 800 - 1650 nm, up to 500 mW
- Choice of Attenuators:
- OD0.3: 50% transmission (for PH100-SI UV only)
- OD1: 10% transmission
- OD2: 1% transmission
- High Accuracy: The PH100-SI-HA model offers the lowest calibration uncertainty to date.
- Precise Calibration: Allows wavelength selection in 1 nm steps for enhanced measurement precision.
- Smart Interface: Contains all the calibration data for seamless integration and use.
- Compatible Stand: STAND-D-233 for stable and secure positioning.
- Compatible Displays & PC Interfaces:
- MAESTRO
- TUNER
- UNO
- P-LINK (USB)
- M-LINK
- P-LINK (RS-232)
- P-LINK-4 (USB)
- P-LINK-4 (Ethernet) V2
- Measurement Capabilities:
- Maximum Average Power: 300 mW
- Noise Equivalent Power: 600 pW
- Spectral Range: 900 - 1650 nm
- Typical Rise Time: 0.2 sec
- Power Calibration Uncertainty: ±5.0% (800 - 1559 nm), ±7.0% (1560 - 1650 nm)
- Peak Sensitivity: 0.98 A/W @ 1550 nm
Applications
- Laser power detection
- Laser optics
- Spectroscopy
- Metrology and inspection
Frequently Asked Questions
The PH20-GE-OD1-D0 laser power detector has an aperture diameter of 5mm, dimensions of 38.1Ø x 36D mm, and weighs 0.14 kg. The distance to the sensor face is 10.5mm.
The PH20-GE-OD1-D0 power detector has a power calibration uncertainty of ±5.0 % (800 - 1559 nm) and ±7.0 % (1560 - 1650 nm).
The Gentec-EO Photodiode Detector PH20-GE-OD1-D0 is used for laser power detection, laser optics, spectroscopy, and metrology.
This laser power detector can measure a maximum average power of 300 mW.
The spectral range of the detector is 900 - 1650 nm.
